Overview

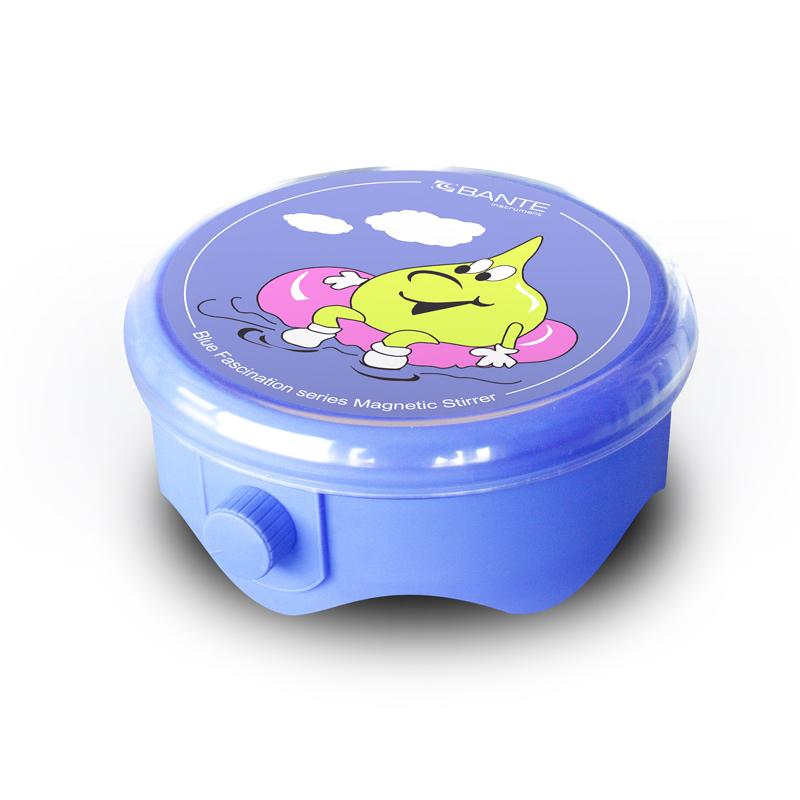

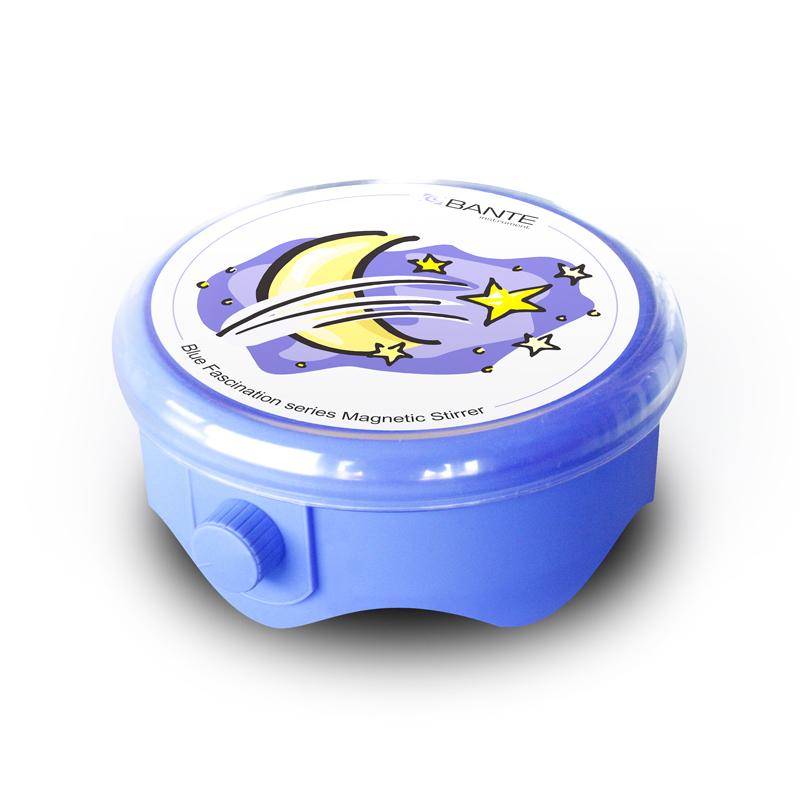

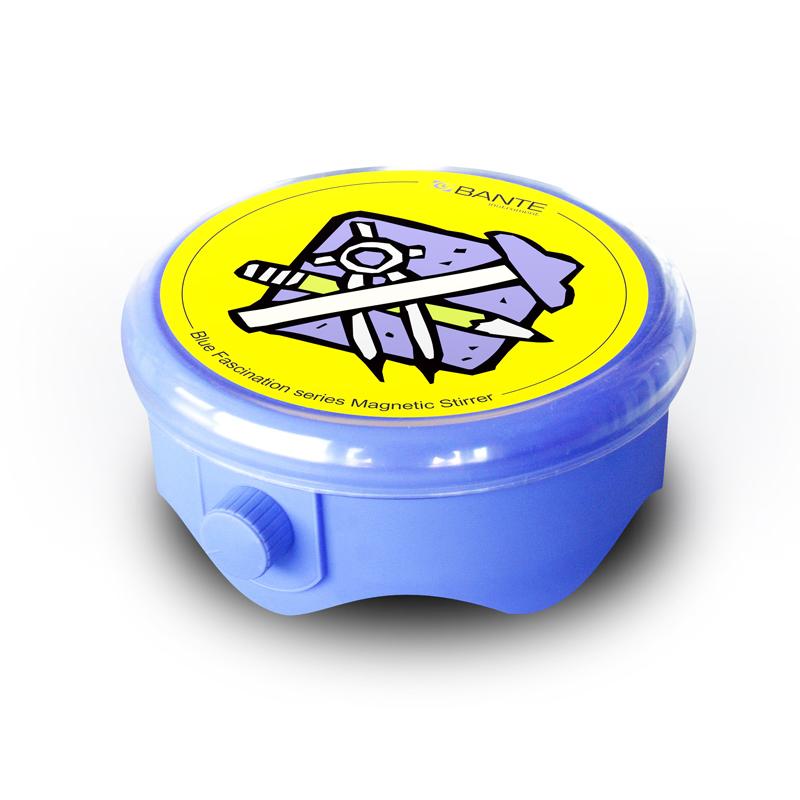

The JB-1A Mini Magnetic Stirrer is a simple and gorgeous Magnetic Stirrer, available in three panel patterns, with a maximum stirring capacity of 2 liters. It is manufactured with a DC motor and a magnet assembly. Rotation speed can be continuously adjusted from 0 to 1250 rpm, stable speed regulation, low noise, can quickly form an eddy current in the solution, and supports long-term continuous operation.
Features
1. Simple and gorgeous design, three panel patterns are optional;
2. Maximum stirring capacity of 2 liters;
3. Rotation speed 0~ 1250rpm continuously adjustable;
4. Stable speed regulation, low noise;
5. Rapidly form eddy current;
6. Can work continuously for a long time.
Principle
The JB-1A Mini Magnetic Stirrer uses a DC motor to drive the magnet assembly, which drives the stirrer to swirl/spin in the solution through magnetic coupling to realize the stirring function. The Rotation speed can be continuously adjusted to form an eddy current from the static state in a short time to ensure uniform mixing.
Applications
Laboratory Solution Stirring, Chemical Mixing, Biological Sample Handling
Steps
Place the Stirrer on a smooth surface and connect it to an AC 220V/50Hz power supply.
2. Place the container of the solution to be stirred on the working plate and put in the stirrer;
3. Turn on the power switch and adjust the Rotation speed knob to the desired speed (0~ 1250rpm);
4. Observe the stirring process to ensure that the solution forms an eddy current;
5. Turn off the power after use, take out the stirrer and clean it.
Notice
• Power supply voltage is AC 220V/50Hz before use;
• Maximum mixing capacity does not exceed 2 liters;
• The recommended size of the stirrer is φ 7 * 30mm;
• Avoid use in humid or flammable environments;
• Pay attention to the temperature of the instrument when working continuously for a long time;
• Disconnect the power supply when cleaning to avoid liquids from entering the interior.
