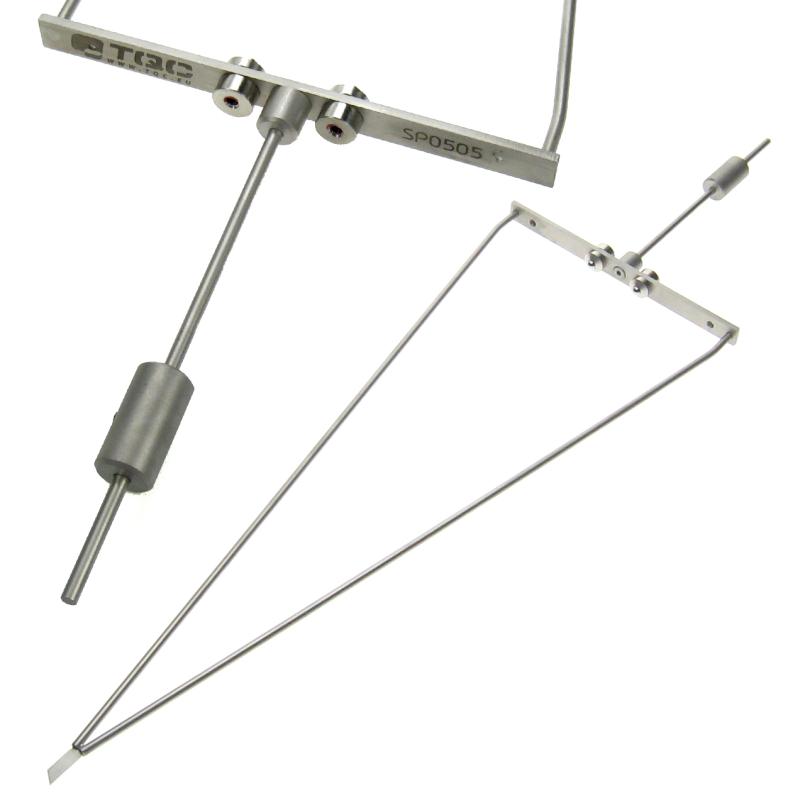

TQC SP0505 Konig swing Rod hardness testing swing Rod, automatic positioning electromagnetic release

Name: TQC SP0505 Konig swing Rod hardness testing swing Rod, automatic positioning electromagnetic release
Brand: TQC sheen
SKU: NB014904
Price: 1045.0 USD
Availability: InStock

$ 1045.00Ex works

Adopting a stepper motor automatic positioning and electromagnetic release system, the swing period is 1.4 seconds, and the steel ball diaMeter is 5 mm, providing visual and acoustic test end signals.

Model

SP0505

Get Quote

Category : Persoz / König Pendulum Hardness Tester

Brand : TQC sheen

SKU : NB014904

Service :The delivery and service By NBCLab.Com

Overview

The TQC SP0505 Konig swing bar is a Modular component of the TQC Pendulum hardness tester, dedicated to the König hardness testing method. The swing bar needs to be used in conjunction with the basic equipment, automatically positioned by the stepper motor and released by the electromagnetic system, and the sound and light signal is indicated at the end of the test.

Features

1. Modular design, compatible with infrastructure König and Persoz methods 2. Stepper motor realizes fully automatic positioning 3. Electromagnetic system controls swing lever release 4. Provide visual and acoustic signal indication at the end of the test 5. mass 200g, swing period 1.4s, length 30mm, ball diameter 5mm

Principle

Swing rod hardness testing is based on the principle that the swing amplitude of the pendulum needle varies on different soft Hardness surfaces. Soft surfaces reduce the swing amplitude rapidly, while harder surfaces slow the weakening rate. Konig swings evaluate the hardness of materials by measuring the wobble attenuation from 6 ° to 3 °, with a wobble time of 250 +/- 10 seconds on a standard Flat Glass surface.

Applications

Coatings hardness testing, Surface Hardness Evaluation

Steps

1. Install the Konig swing bar to the Pendulum hardness tester base 2. Select the König Measuring method by pressing the button 3. The device automatically positions and releases the swing bar 4. Observe the swing process until the acousto-optic signal indicates the end of the test 5. Record swing time and frequency data

Swing bar Type
Konig pendulum
Konig swing mass
200g
Konig swing period
1.4s
Konig swing rod length
30mm
Konig ball diameter
5mm
Konig Glass Swing Time
250±10s
Number of swings on Konig Glass
179±7
Konig start and finish swing angle
6°/3°
