Overview

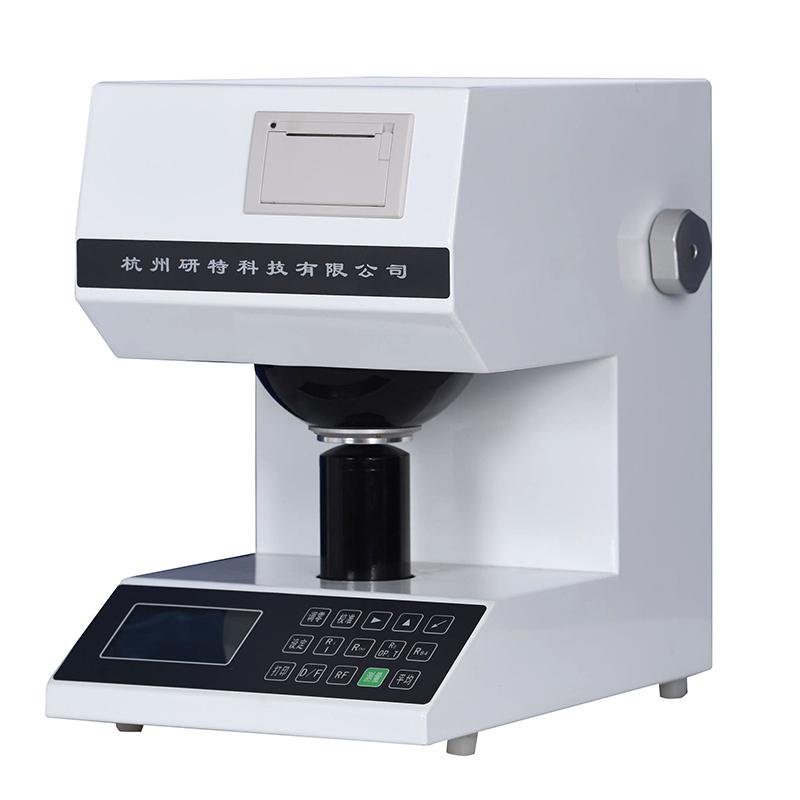

YANTE YT-48A whiteness Colorimeter is a new type of instrument that prioritizes automatic one-click determination of all Color and Whiteness technical parameters in the industry. It is widely used in papermaking, printing, Spinning & weaving printing and dyeing, ceramics, building materials, chemical industry, grain, salt making and other industries and Miscellaneous production and commodity inspection departments that need to measure the Color and Whiteness of objects.
Features
1. Adopt large-screen high-pixel LCD display module, Chinese display and prompt operation steps to display measurement and statistical results, friendly man-machine interface makes the instrument operation simple and convenient
2. Increase the data cache, which is convenient for users to back up, consult, and compare historical data, and can store and remember up to ten reference sample information
3. The instrument has power-off protection function, and the calibrated data will not be lost after power-off
4. Can be measured multiple times and give the arithmetic average of a series of measurement results
5. Adopt thermal printing movement, no need to use inks and color ribbon, no noise when working, fast printing speed and other characteristics
6. This instrument is equipped with a standard RS232 interface, which can communicate with microcomputer software (purchased separately).
Principle
The instrument calculates and reports various technical parameters of Color and Whiteness by measuring the diffuse reflection factor of the object, including chromaticity coordinates, stimulation value, Lightness, chroma and other indicators.
Applications
Paper, Cardboard, Plastic, Pulp, Salt, Industrial Salt, Starch, Calcium Carbonate, tale powder and other powders, chemical fiber pulp, cotton, chemical fiber, Spinning & weaving products, grain, ceramics, enamel, building materials
Notice
1. Operating temperature range is 10~ 35 ℃
2. The relative humidity should be ≤ 85% RH
3. The sample size requires the test plane to be ≥ φ 30mm and the thickness to be ≤ 40mm.
4. Within 30min after preheating, the indication Stability within the temperature change range of +/- 5 ℃ should be ≤ 0.1
5. RS232 interface is optional and needs to be purchased separately
6. Whiteboard (3 #), Simple Powder Press, Glass Cover as optional accessories
