Overview

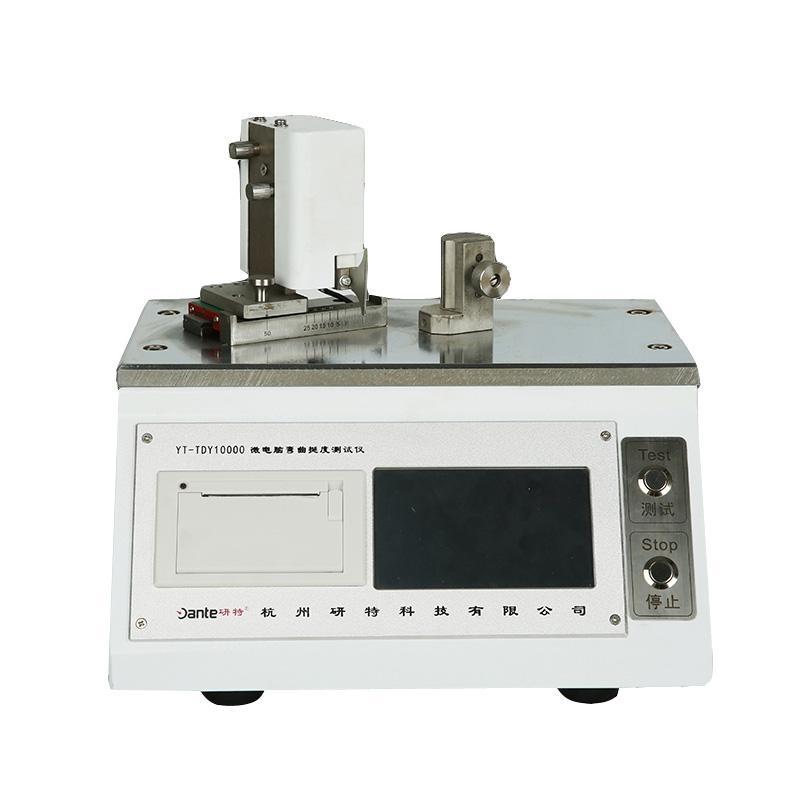

YT-TDY10000 computer stiffness tester is a multi-functional smart computer stiffness tester. The test results are exactly the same as Taber method and electronic method, and the whole computer intelligently calculates the test results. Widely used in paper companies, Encasement manufacturers, Quality inspection organizations and other units.
Features
1. The main board adopts new technology and new design, and the CPU adopts 32-bit ARM processor to improve the processing speed and calculate the data more accurately and quickly
2. Adopt 5-inch color Touchscreen, Chinese display, touch button, easy to understand operation, real-time display of anti-pressure-deformation Linear dispersion and time information
3. After the test is completed, return to the starting position at high speed, and the return speed is adjustable
4. Support 7.5 ° and 15 ° stiffness test (any setting between 1 and 90 °)
5. Test angle changes are automatically controlled by the motor, improving measurement efficiency and reducing human impact
6. Test time is adjustable
7. Automatic reset, overload protection
8. Using thermal printing movement, no need to use inks and color ribbons, no noise when working, fast printing speed
9. Equipped with a standard RS232 interface, it can communicate with microcomputer software (purchased separately)
Principle
The instrument automatically controls the change of test angle through the motor, real-time measurement of the relationship between anti-pressure and deformation, and the full computer intelligently calculates the stiffness test results.
Applications
Paper companies, Encasement manufacturers, Quality inspection organizations
Steps
1. Turn on the power supply and start the instrument
2. Set test parameters (angle, time, etc.) through Touchscreen
3. Place samples for testing
4. The instrument automatically completes the test and displays the results
5. Automatic reset after the test is completed
6. You can choose to print test results or transfer data through the RS232 interface
Notice
• Ambient Temperature should be maintained at 10~ 35 ℃, relative humidity < 85%
• Power supply voltage range is AC 100~ 240V, 50/60Hz
• Avoid overload use, the instrument has overload protection function
• Regularly check instrument accuracy to ensure measurement accuracy
• Optional accessories need to be purchased separately
