Overview

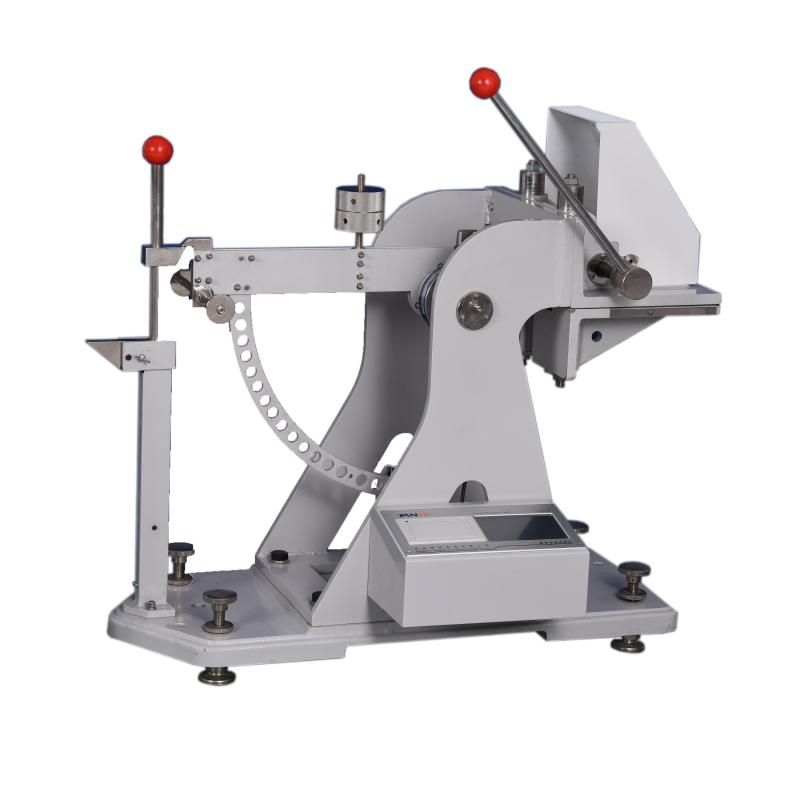

YT-PRT48 Puncture strength tester is a special test instrument for Corrugated Board anti-puncture performance produced by YANTE brand. It is used to measure the anti-Puncture Resistance (Joule) of Corrugated Board samples and simulate the damage of the box when it is violently hit by other boxes or conical objects during handling and transportation. The instrument is a common equipment for enterprises and departments such as Cardboard, carton production, scientific research and commodity inspection.
Features
1. Adopt a strong steel structure to avoid energy loss caused by vibration during testing
2. Separation mechanism with protection system, Safety protection screen cover; Self-tightening anti-loosening fixture with adjustable pressure
3. Adopt 5-inch color Touchscreen, Chinese display, touch buttons, making the operation simple and easy to understand
4. Automatic measurement, statistics, printing test results, and data saving function
5. Using thermal printing movement, no need to use inks and color ribbons, no noise when working, fast printing speed
6. Equipped with a standard RS232 interface, it can communicate with microcomputer software (purchased separately)
Principle
The instrument pierces the sample through the pyramid, measures the ability of Corrugated Board and other materials to resist piercing, quantifies the anti-Puncture Resistance in joules, and simulates the impact damage received during actual transportation and handling.
Applications
Cardboard, Cardboard, Plastic Board, Hollow Board, Leather, Film, Fireproof Board, Cement Bag
Steps
1. Prepare the sample to be tested
2. Select the appropriate measurement gear (A/B/C/D file)
3. Place the sample in the fixture and adjust the pressure
4. Set test parameters through Touchscreen
5. Start the test, the instrument automatically completes the Puncture Resistance measurement
6. View and save test results
7. Optional to print test report
Notice
• Power supply voltage in AC (100~ 240) V range
• Ambient Temperature should be maintained at 10~ 35 ℃, relative humidity < 85%
• Safety protection screen should not be opened during the test
• Select the appropriate measurement gear according to the sample strength
• Regularly check whether the corner radius of the edge of the cone meets the R (1.5 +/- 0.1) mm standard
• The instrument weight reaches 110kg, pay attention to safety when handling
• If you need to use the RS232 communication function, you need to purchase the supporting microcomputer software separately
