Overview

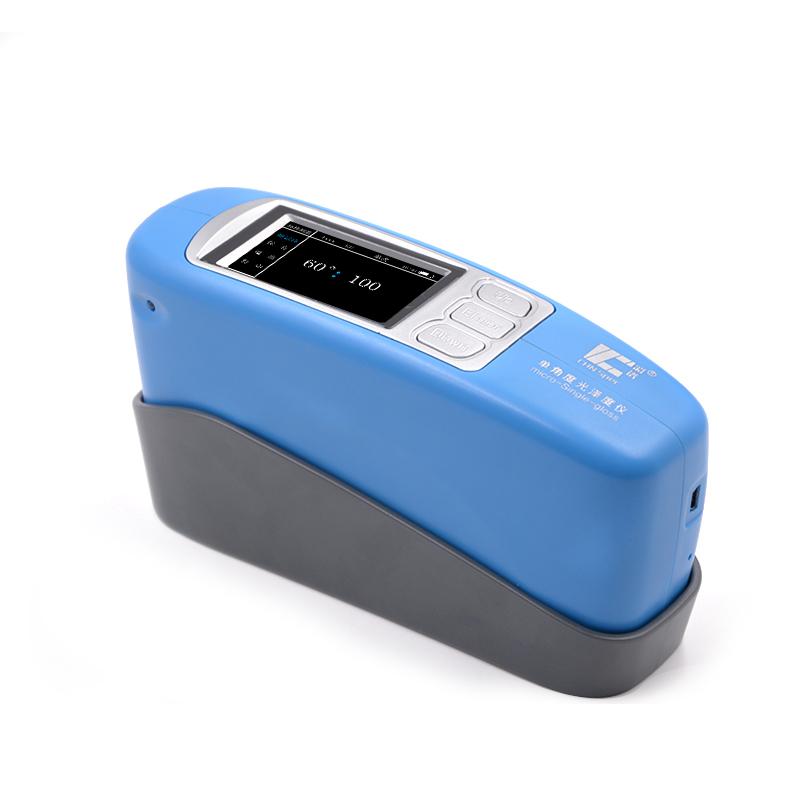

CHNSPEC CS-300 Single Angle Glossiness Meter (Measurement Angles: 60 °) is mainly used for the measurement of material surface Gloss in lame plating, plastics, printing, metals, ceramics, building materials, leather, paints and other industries.
Features
1. Single angle measurement design, Measurement Angles 60 °
2. Measurement range, up to 0~ 1000GU
3. High Repeatability: 0.2GU at 0~ 100GU, 0.2% at 100~ 2000GU
4. Measuring Area Size 9 * 15mm
5. Support average mode, master standard and sample measurement two Measurement modes
6. Graduation optional 0.1GU or 1GU
7. Provide USB and Bluetooth (optional) Interface
8. Data storage: 100 master standards and 10,000 samples can be stored
9. Operating languages Simplified Chinese and English
10. Portable design: Dimension 165 * 51 * 77mm, weight about 400g
11. Built-in 3000mAh lithium battery power supply
12. Measurement time takes only 1 second
13. Operating temperature range 0~ 40 ℃, relative humidity < 85% RH No condensation
Principle
The CS-300 Glossiness Meter evaluates the Gloss degree of the material surface by illuminating the sample surface with 60 ° Measurement Angles and detecting the intensity of reflected light. The instrument conforms to the Optical inspection principle of gloss measurement and can accurately quantify the Gloss characteristics of the material surface.
Applications
Lame plating, plastic, printing, metal, ceramic, building materials, leather, paints, coatings, inks, Eletroplating, plastic electronics, Hardware
Standards
DIN 67530、ISO 2813、ASTM D 523、JIS Z8741、BS 3900 Part D5、JJG696
Steps
1. Measurement mode: Average mode or master standard and sample Measurement mode
2. Align the instrument measurement head to the surface of the sample to be tested
3. Press the measurement button for measurement
4. Read and record measurement results
5. Data can be transferred via USB or Bluetooth interface
6. Store master standard or sample data as needed
Notice
• Operating temperature should be kept within the range of 0~ 40 ° C
• relative humidity should be less than 85% RH without condensation
• Ensure that the sample surface is clean and free of contamination before measurement
Periodically calibrate instruments to ensure measurement accuracy
• Avoid use in a strong light environment
• Keep the instrument properly to avoid violent vibration
