Overview

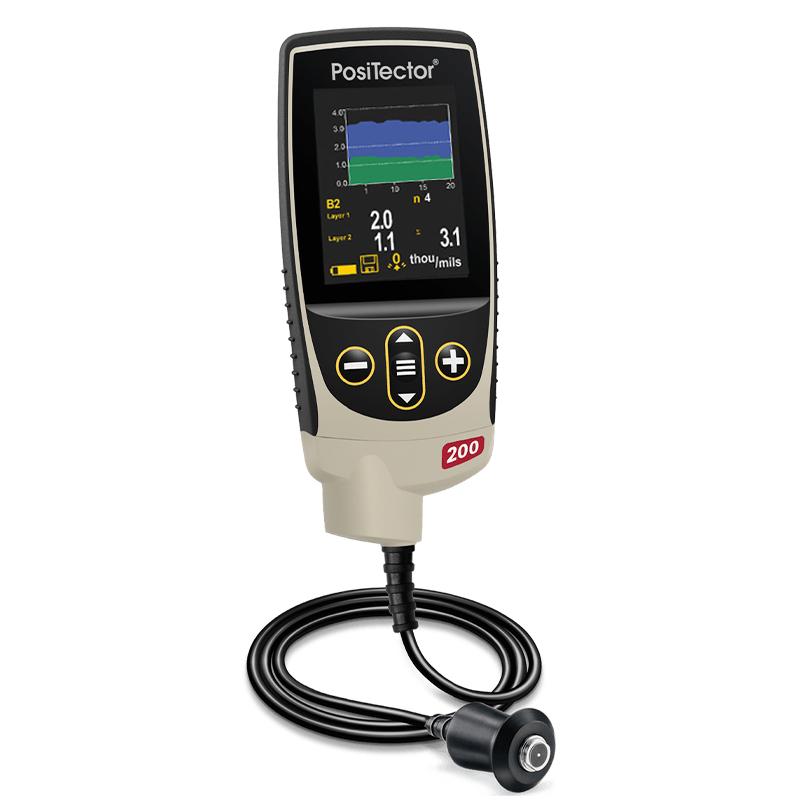

The Defelsko D Advanced 200D3-E Ultrasonic Coating thickness gauge is an advanced version of the Positector200 series, designed for the measurement of thick soft coatings such as polyurea, asphalt, neoprene and very thick polymers. Its measurement thickness range is 50 to 7600 microns, which meets the Defelsko STDP1 thickness standard.
Features
1. High durability: resistant to solvents, acids, oils, water and dust; rubber sheath with belt buckle has shock absorption and protection functions.
2. Easy to operate: easy to use, no need to calibrate the vast majority of tests; menu navigation, can be operated with one hand; two-color indicator light can still be used normally in noisy environment; RESET restart feature can quickly restore factory settings.
3. Accurate measurement: Traceability of ultrasonic Coating thickness gauge to NIST verification; Sensitive Sensor provides fast and accurate reading; Non-destructive ultrasonic thickness measurement technology conforms to ASTM D6132 and ISO 2808 standards.
4. Widely used: PosiTector host is highly versatile and compatible with a variety of Probes; Mil/micron unit free switching, multiple languages optional; high contrast backlight display, easy to operate in light or dim environment; with inverted display function, easy to flip measurement; use alkaline battery or rechargeable battery (built-in charger).
5. Powerful functions: continuous display/update of average value, Standard Deviation, minimum/maximum thickness and number of readings; can store 100,000 readings and 1000 packets; screenshot function for easy archiving and browsing; fast connection to the computer through the USB port and continuous power supply; PosiSoft USB driver can obtain data without software assistance; each stored data mark date and time; can be operated using PosiSoft.net software.
Principle
Non-destructive ultrasonic thickness measurement technology is used to transmit and receive ultrasonic signals through sensitive Sensors to measure Coating thickness. This technology complies with ASTM D6132 and ISO 2808 standards to ensure accurate and reliable measurement.
Applications
Thick soft coatings such as polyurea, asphalt, neoprene, very thick polymers, etc
Standards
ASTM D6132、ISO 2808、Defelsko STDP1
Steps
1. Turn on the device and use it without calibrating.
2. Select Measurement mode through the menu navigation, which can be operated with one hand.

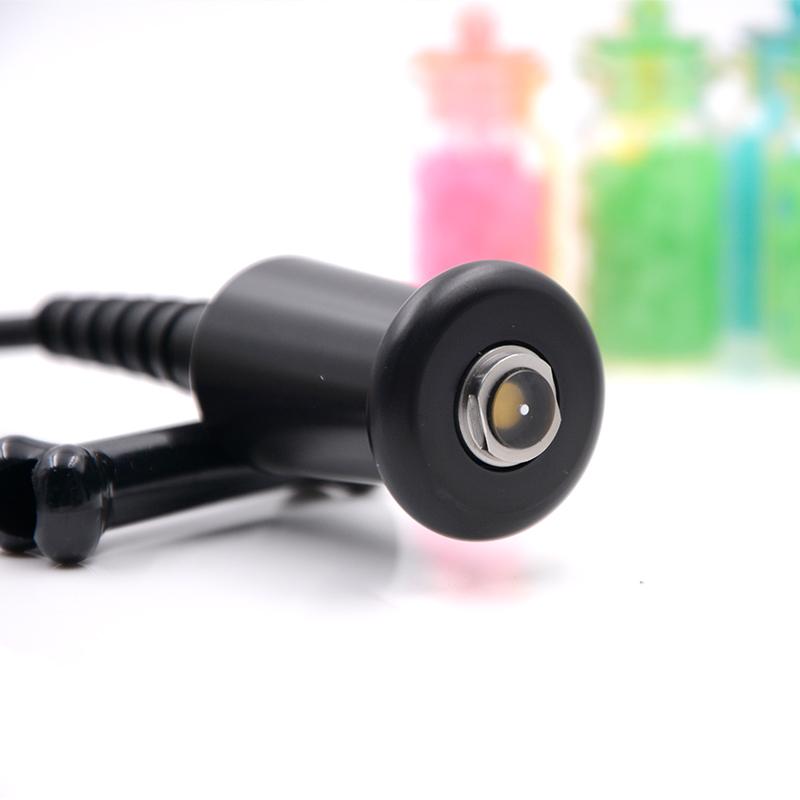

3. The Probe is placed on the coating surface for measurement, and the device automatically displays the reading.
4. Use a two-color indicator to confirm operation in a noisy environment.
5. Quickly restore factory settings through RESET function (if required).
6. Connect the USB port to the computer, use the PosiSoft USB driver or PosiSoft.net software to obtain and store data.
Notice
• Ensure that the equipment is used in an environment resistant to solvents, acids, oils, water and dust to avoid improper contact.
• Check the battery status before use, choose alkaline battery or rechargeable battery.
• In light or dark environments, use high contrast backlit displays and inverted displays to improve readability.
When storing data, be sure to mark each reading with a date and time for subsequent analysis.
• When replacing Probes, ensure compatibility and avoid affecting Measurement accuracy.
