Overview

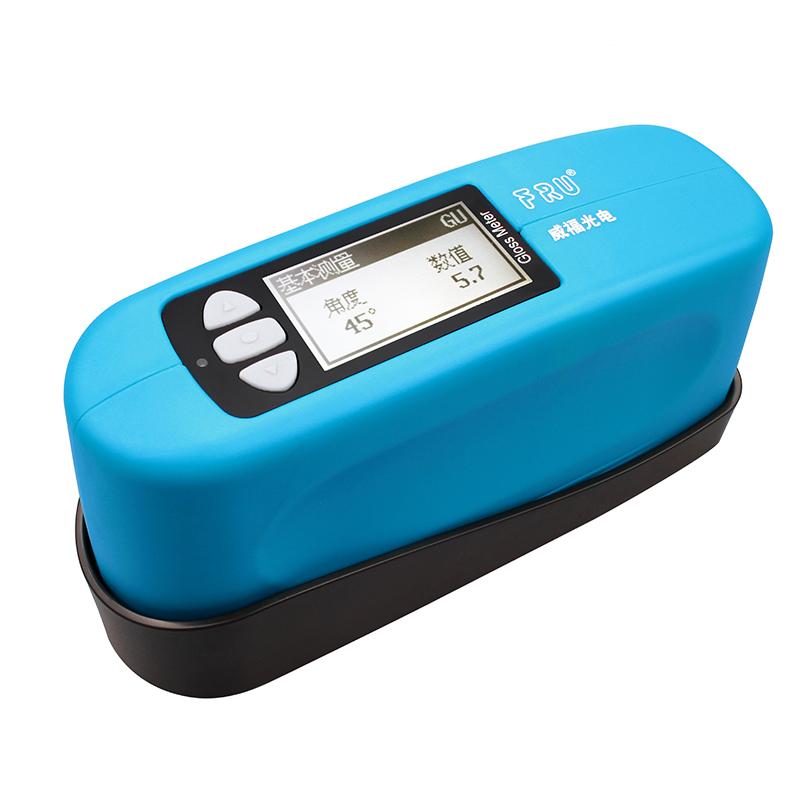

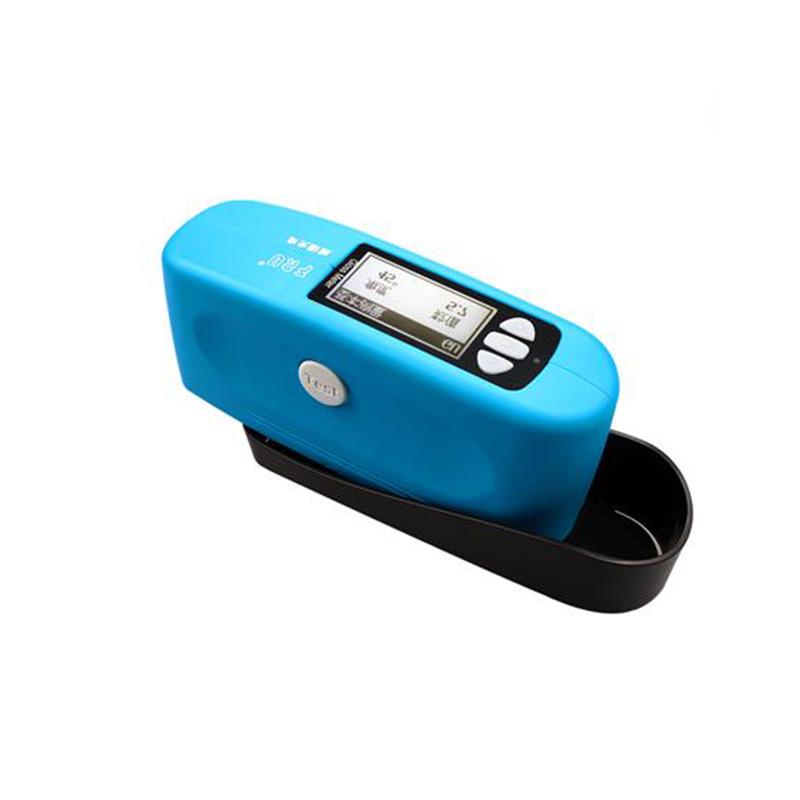

The IWAVE WG45 film plastic glossmeter is a Portable single-angle film plastic glossmeter with a measurement projection angle of 45 °, with a measurement Gloss range of 0~ 200Gu. Appearance of the instrument is blue, using an LCD screen, Manual calibration is performed through the base Calibration plate. Measuring Area size is 9x15mm oval, with automatic measurement, manual measurement, single measurement, average measurement and other Measurement modes to meet the different measurement needs of users.
Features
1. Measurement Angles at 45 degrees
2. Menu navigation, easy to operate
3. Configure dry battery, external rechargeable power supply
4. Long Life Illuminant, Good Stability, Instant Testing
5. Measurement modes: automatic measurement, manual measurement, single measurement, average measurement, and can achieve cross-set measurement, providing a variety of combination Measurement modes
Principle
The glossmeter measures the Glossiness of the sample surface through a 45 ° projection angle. After the Illuminant irradiates the sample surface, the instrument detects the reflected light intensity and converts it into a Glossiness value display. The long-life Illuminant ensures measurement Stability, and Manual calibration through the base Calibration plate ensures measurement accuracy.
Applications
Ceramic products, Enamel products, Plastic products, Plastic film
Standards
ISO-2813、ASTM-C584、ASTM-D523、DIN-67530、ASTM-D2457、JND-A60、JND-P60、GB 9754、GB 9966、GB 8807
Steps
1. Turn on the instrument power

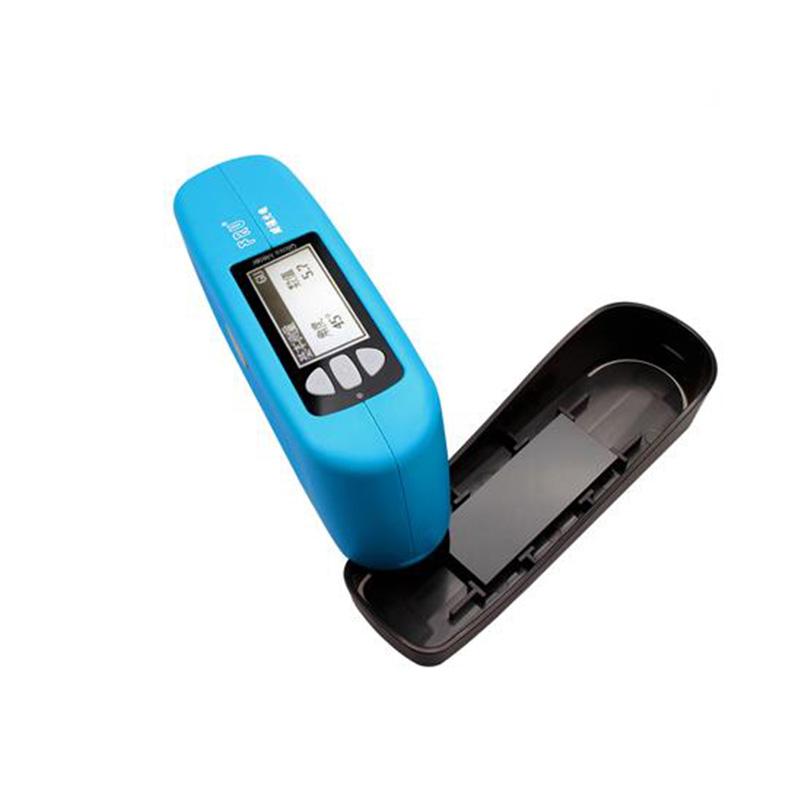

2. Manual calibration with Base Calibration plate
3. Measurement mode (automatic measurement, manual measurement, single measurement, average measurement, etc.)

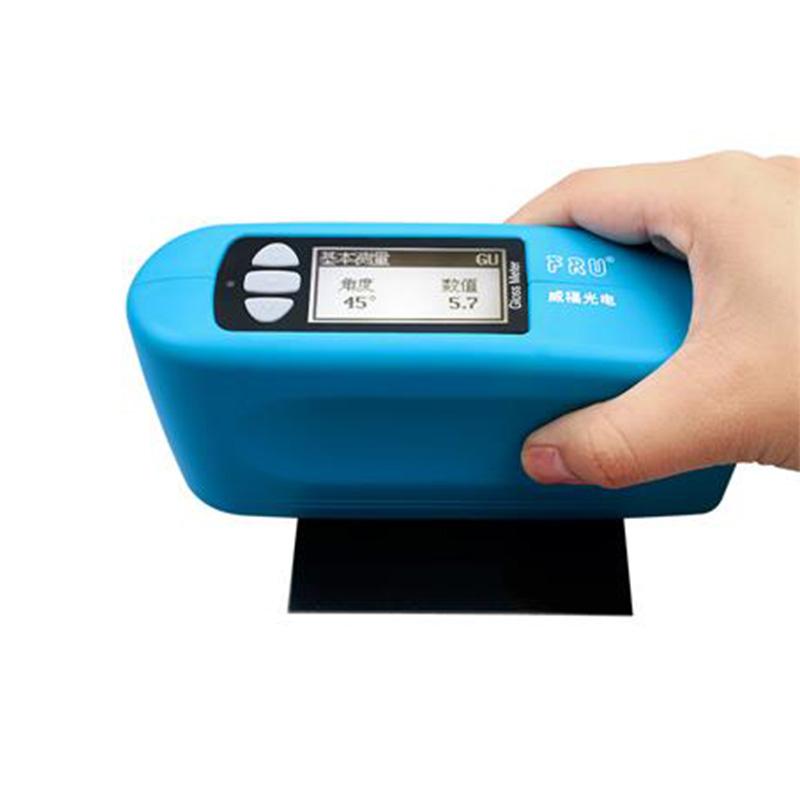

4. Align the measurement port to the surface of the sample to be tested
5. Take measurements and read the results
6. Can store measurement data or connect micro printer output data
Notice
• Manual calibration required before use
• Ensure that the measurement surface is clean and free of contamination
• Keep the instrument stable during measurement
• Calibration plate status checked regularly
• Pay attention to the battery level and charge or replace it in time
• Pay attention to the capacity limit when storing data (5000 sets)
