Overview

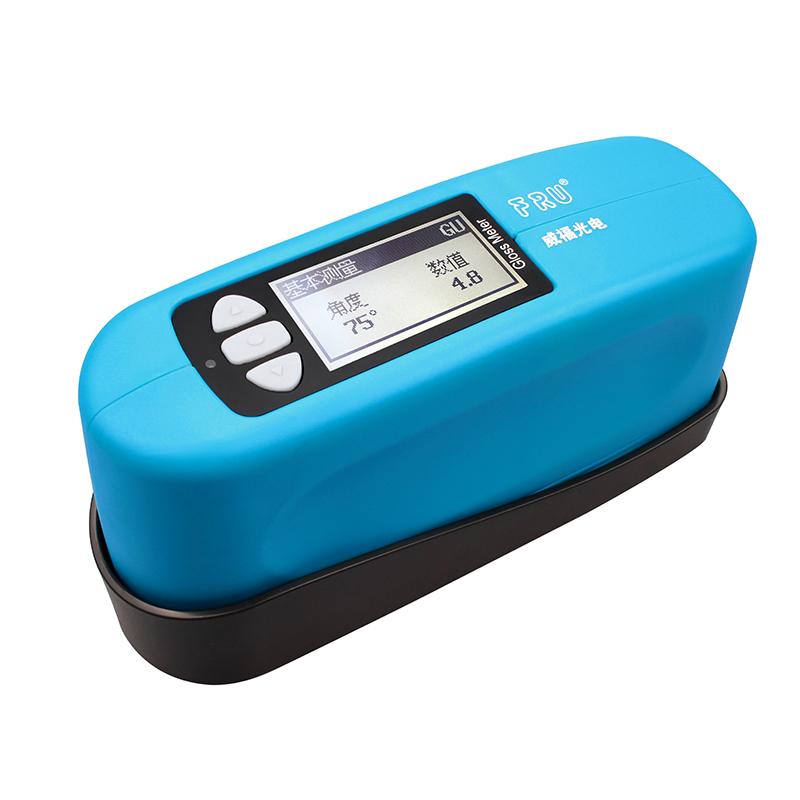

The IWAVE WG75 paper glossmeter features a blue Appearance design with a large LCD screen, three operation buttons and side test keys, and a black base calibration shim as standard. The instrument has a Measurement Angles of 75 ° and a range of 0~ 200Gu. It is specially used for surface mirror gloss measurement of Coated Paper, Spreader Paper, Cardboard and other materials.
Features
1. Small size, light weight, easy to carry
Two batteries can be used continuously for nearly 60 hours, measurement of nearly 10,000 data
3. High Stability, Instant Testing
4. LED Illuminant Long Life
5. Quartz crystal standard version, with extremely low annual change rate
6. Automatic shutdown function saves power and prevents battery flow failure
7. Measurement modes: automatic measurement, manual measurement, sampling measurement, statistical measurement, continuous measurement, support cross-set to provide a variety of combination Measurement mode
Principle
The glossmeter emits rays of light to the measured surface by 75 ° Measurement Angles, detects the reflected light intensity to calculate the Glossiness value, and uses the quartz crystal standard version to ensure the measurement Stability.
Applications
Coated Paper, Spreader Paper, Cardboard and other paper surface gloss measurement
Standards
ISO-2813、ASTM-C584、ASTM-D523、DIN-67530、ASTM-D2457、JND-A60、JND-P60、GB 9754、GB 9966、GB 8807
Steps
1. Boot preparation
2. Measurement mode (automatic, manual, sampling, statistical or continuous measurement)

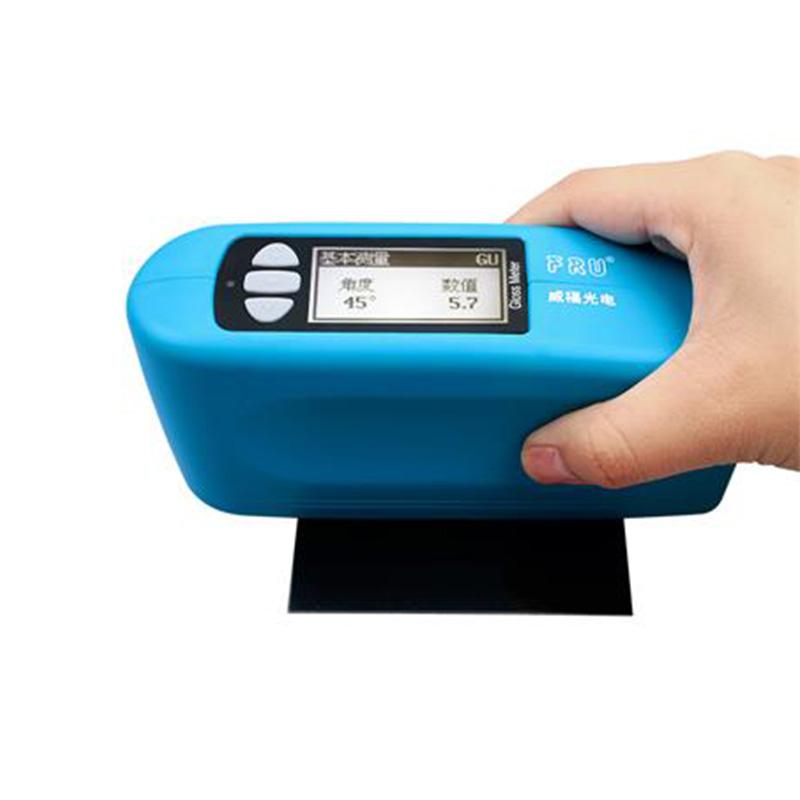

3. Point the instrument at the surface to be measured
4. Press the side test button for measurement
5. Read and store measurement data
6. Can be connected to a micro printer to output data
Notice
• Make sure the battery is fully charged before use
Calibrate regularly with standard Calibration plates
• Avoid severe impact on the instrument
• Ensure that the measured surface is clean and flat during measurement
• Please remove the battery when not in use for a long time
• Only for gloss measurement of specified paper materials
