JINGKELIAN QTX Film resilience Tester Coating flexibility Tester, seven-axis bar design

Name: JINGKELIAN QTX Film resilience Tester Coating flexibility Tester, seven-axis bar design
Brand: JingKeLian
SKU: NB001511
Price: 130.0 USD
Availability: InStock

$ 130.00Ex works

Equipped with seven steel shaft Rods of different diaMeters, the radius of curvature covers 0.5mm to 7.5mm, and the shaft Rod length is 50mm, which can accurately test the film flexibility under standard temperature Humidity conditions.

Model

Get Quote

Category : Flexibility Tester

Brand : JingKeLian

SKU : NB001511

Service :The delivery and service By NBCLab.Com

Overview

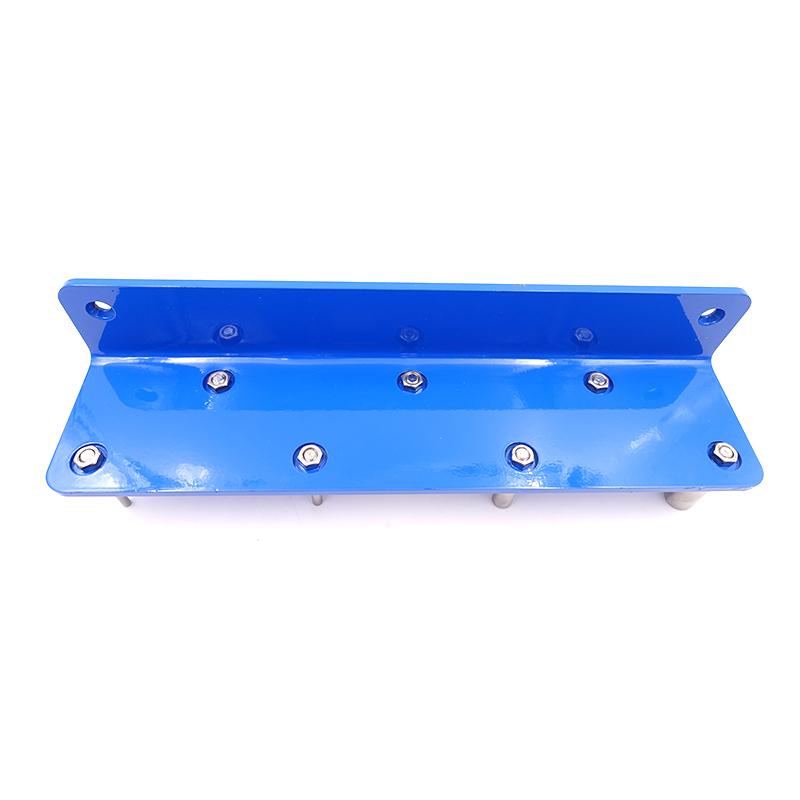

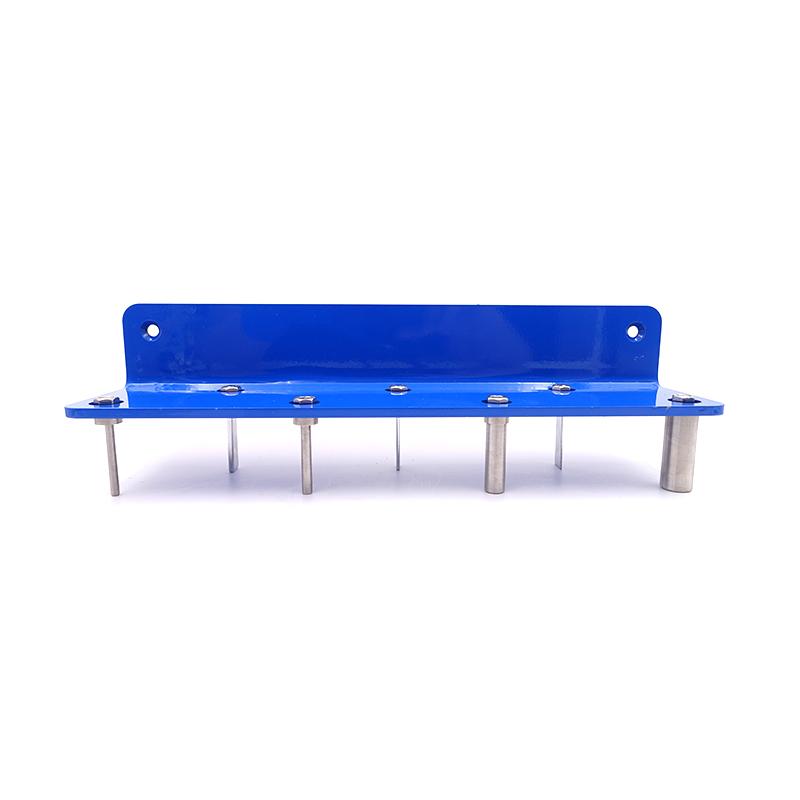

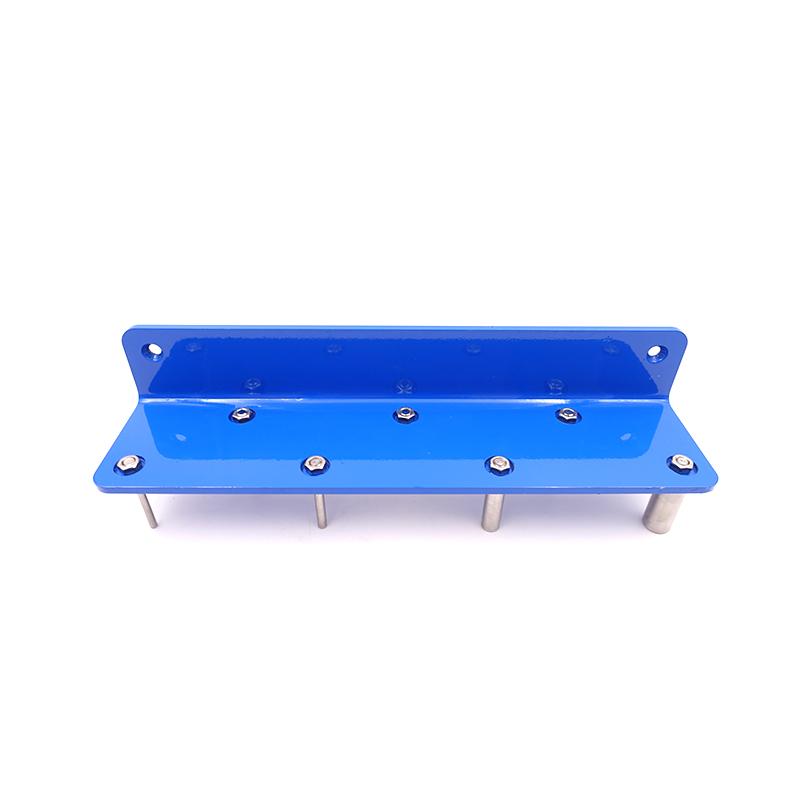

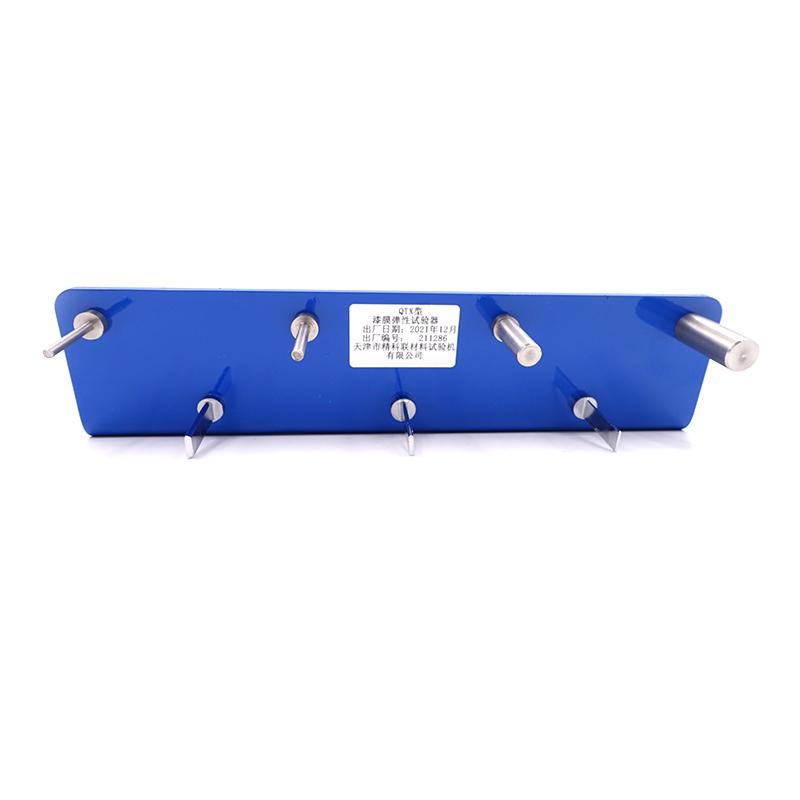

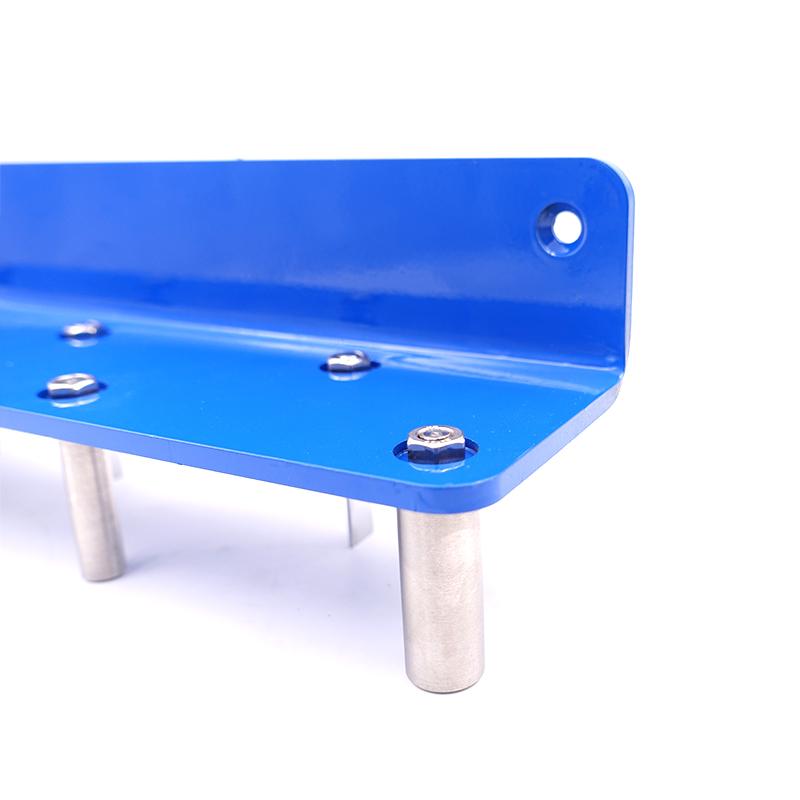

JINGKELIAN QTX film resilience tester is a special instrument designed according to the national standard GB1731-79 Coating film flexibility measurement, equipped with seven steel shaft rods of different diameters. Operating Environment conditions are 22 +/- 1 ° C Ambient Temperature and relative humidity is not more than 70%.

Features

1. Design in line with national standard GB1731-79 2. Equipped with seven steel shaft rods of different diameters 3, including four times magnifying glass auxiliary observation 4. Suitable for accurate testing in specific Humidity environments

Principle

The flexibility of the paint film is measured by bending the coated test iron plate on different diameter shaft rods to observe whether the paint film is cracking or flaking. The radius of curvature of the shaft rods varies from 0.5mm to 7.5mm, and multi-stage testing can be carried out.

Applications

Coating film flexibility measurement

Standards

GB1731-79

Steps

Prepare for testing in an environment of 22 +/- 1 ° C and relative humidity not greater than 70% 2. Select the right diameter shaft rod 3. Bend the test iron plate coated with paint film on the shaft rod 4. Use four times magnifying glass to observe the state of the paint film 5. Record the test results

Notice

• Must be used at 22 +/- 1 ℃ Ambient Temperature • The relative humidity shall not exceed 70% • The thickness of the test iron plate should be 0.2 to 0.3 mm • Check whether the surface of the shaft rod is in good condition before use • Use matching quadruple magnifying glass when observing

Shaft rod 1 diameter
15mm
Shaft rod 2 diameter
10mm
Shaft rod 3 diameter
5mm
Shaft rod 4 diameter
4mm
Shaft rod 7 section
1 * 10mm
Shaft rod 7 radius of curvature
0.5mm
Test the thickness of the iron plate
0.2~ 0.3mm
Test iron plate Size
20 * 100~ 150mm
magnifying glass
Quadruple magnifying glass
Operating Environment Temperature
22±1℃
Operating Environment relative humidity
Not more than 70%
