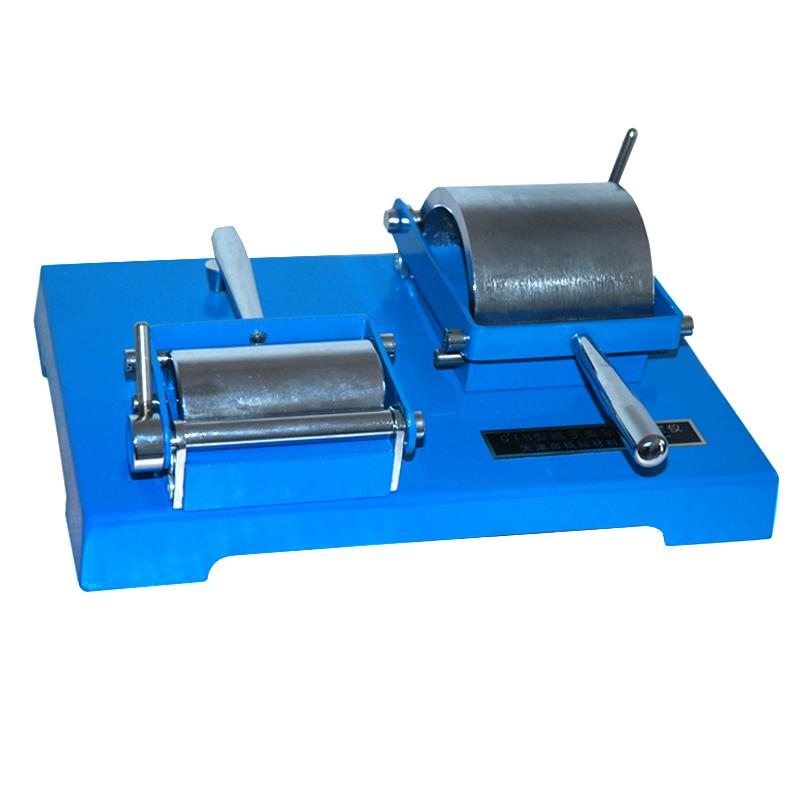

JINGKELIAN QTB Putty flexibility Tester Coating film bending crazing detection

Name: JINGKELIAN QTB Putty flexibility Tester Coating film bending crazing detection
Brand: JingKeLian
SKU: NB001514
Price: 194.0 USD
Availability: InStock

$ 194.00Ex works

The equipment can detect the crazing or peeling of the putty film after bending, equipped with R25 and R50 support film specifications, shaft Rod size is 50mm and 100mm in diaMeter, suitable for 0.2-0. 3mm thick tinplate plate.

Model

Get Quote

Category : Flexibility Tester

Brand : JingKeLian

SKU : NB001514

Service :The delivery and service By NBCLab.Com

Overview

JINGKELIAN QTB putty flexibility tester is a special measuring instrument used in the coatings painting industry to determine the crazing or peeling phenomenon of the putty film after bending the putty film. The structure design is compact and the operation is convenient.

Features

1. Comply with GB1748-79 standard 2. Compact structure design 3. Easy to operate 4. Provide R25 and R50 support film specifications

Principle

The QTB is mainly composed of two parts: the pressing frame and the supporting film. When used, first place the pressing roller handle and the pressing frame at the back end of the supporting film, so that the supporting film is completely exposed. Then insert the sample into the small groove at the back end of the supporting film and press one end of the sample plate with the pressing handle so that the eccentric shaft presses one end of the sample plate. Then remove the pressing frame and make the sample plate bend and deform evenly along the surface of the supporting film through the rolling shaft on the pressing frame. Finally, observe the physical changes on the surface of the sample putty film.

Applications

Coating painting industry

Standards

GB/T1748-79

Steps

1. Place the pressing roller handle and press rack at the back end of the die so that the die is fully exposed 2. Insert the sample into the small slot at the back end of the support film 3. Press the eccentric shaft against one end of the sample plate with a pressing handle 4. Move the press down and bend the sample evenly along the support film surface through the rolling shaft on the press 5. Move the pressing frame to the positioning Xiao place as the upper part 6. Observe the physical changes on the surface of the sample putty film

Notice

• After use, wipe the dirt on the surface of the putty flexibility tester • The rotating part is lubricated with 40 #oil Store in a ventilated drying environment

Meet the standard
GB1748-79
Support film specification
R25、R50
structure
1. Press frame; 2. Support film (R25; R50 two kinds); 3. Press the roller handle; 4. Eccentric shaft; 5. Roller spindle; 6. Positioning Xiao
