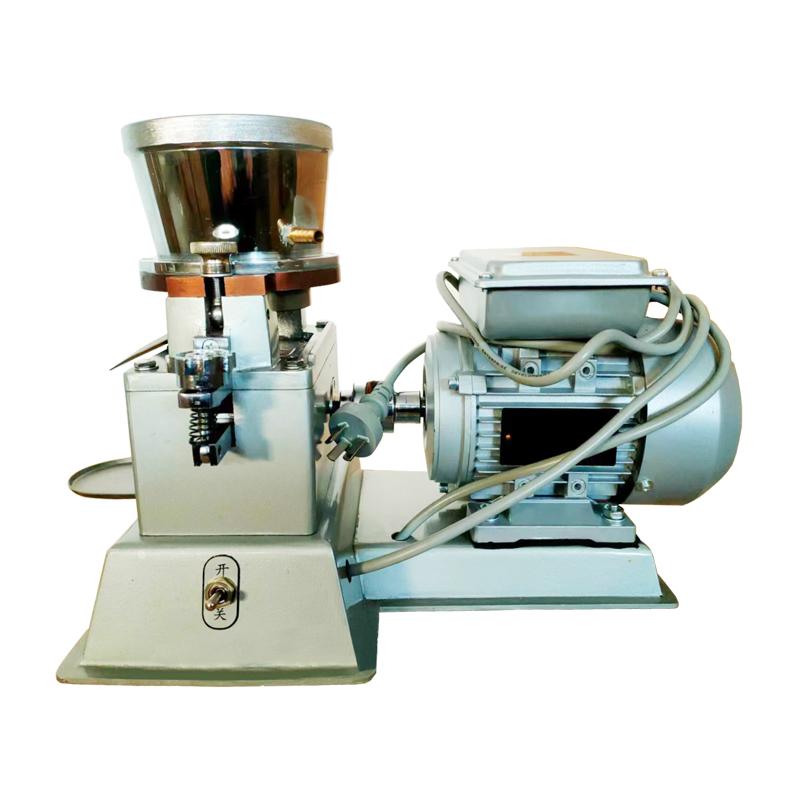

JINGKELIAN QZM Conical paints Coating Grinder 0.01-1 mm clearance adjustable

Name: JINGKELIAN QZM Conical paints Coating Grinder 0.01-1 mm clearance adjustable
Brand: JingKeLian
SKU: NB001528
Price: 551.0 USD
Availability: InStock

$ 551.00Ex works

Adopting convex grinding and concave grinding relative rotation structure, the grinding gap can be adjusted by 0.01-1 mm, and the processing of 100 micron materials can reach 25 microns or less after 5 grinding times. Rotation speed 180rpm ensures grinding uniformity.

Model

Get Quote

Category : Grinder

Brand : JingKeLian

SKU : NB001528

Service :The delivery and service By NBCLab.Com

Overview

JINGKELIAN QZM Conical Mill is a special grinding machine for paints Coating particles, which can reduce the original paints Coating particles of about 100 microns to no more than 25 microns after no more than 5 grinding cycles. The equipment can freely adjust the gap between convex and concave grinding between 0.01 mm and 1 mm.

Features

1. Special grinding design for paints Coating granules 2. Efficient grinding capacity, from 100 microns to 25 microns in 5 cycles 3. Wide adjustable range of clearance, free adjustment from 0.01 mm to 1 mm 4. Compact structure, Dimension 430 * 250 * 300mm 5. Light weight, the whole machine weight 30Kg

Principle

The motor drives the convex mill to rotate relative to the concave mill through the transmission, and finishes the paints Coating particles by means of the grinding teeth on the convex mill and the concave mill.

Steps

1. Connect the three-phase AC 380 volt 50HZ power supply 2. Adjust the gap between convex and concave grinding to the desired size (0.01 mm to 1 mm) through the gap adjustment nut. 3. Start the power switch and swirl/spin clockwise at 180rpm 4. Coating the ground paints into the ground area 5. Sexual repeability grinding process, no more than 5 times as needed

Notice

• Power supply voltage is 380V 50HZ before use • When adjusting the gap, it should be operated within the range of 0.01 mm to 1 mm • Note that the swirl/spin direction is clockwise • Grinding times should not exceed 5 times • Pay attention to safety during operation and avoid contact with swirling/spinning parts

The gap between convex and concave grinding
Can be adjusted arbitrarily between 0.01mm and 1mm
Rotation speed clocKwise
180 rpm
power supply
Three-phase AC 380V 50HZ
Dimension
430 * 250 * 300mm
Net weight
30Kg

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
