Overview

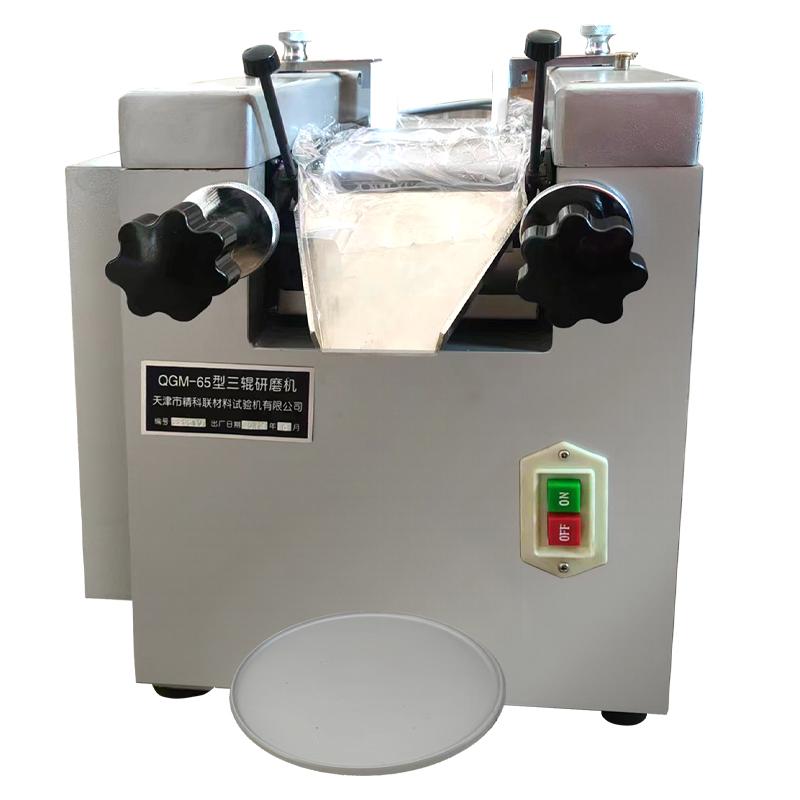

JINGKELIAN QGM-65 Three-roll grinder is a wet grinding machine with various functions such as crushing, dispersion, emulsification, homogenization, color matching, recycling waste, etc. It can be used for scientific research, testing, formulation and crushing and micro-commissioning production. The main components of the equipment are three rolls, which are reinforced with Cr12 steel for protection. The anti-wear Hardness reaches HRC52 °~ 58 °, the surface roughness Hardness can reach 0.2~ 0.1, the operation is convenient, the color change is easy, the appearance is beautiful, and the noise is low. It is suitable for grinding and refining of various materials.
Features
1. Multifunctional integration: with crushing, dispersion, emulsification, homogenization, color matching, recycling waste and other functions
2. High-quality rolls: Cr12 steel reinforced protection treatment, anti-wear Hardness of HRC52 °~ 58 °
3. Easy to operate: easy to operate, easy to change colors, beautiful appearance, low noise
4. Wide range of applications: suitable for scientific research, testing, formulation and crushing and micro-commissioning production
5. Efficient grinding: Surface Hardness can reach 0.2~ 0.1 to ensure grinding effect
Principle
The raw material is added by the natural hopper composed of the middle and rear two rollers and two baffles, and the opposite asynchronous swirl/spin of the middle and rear two groups produces a sharp flip of the raw material, shearing, and crushing the structural stress surface between the raw material molecules., and then through the secondary grinding of the middle and front continuous rollers at high speed, thereby achieving high-speed and uniform mixing of various raw materials.
Applications
Dyestuff, inks, Plastics, paints, Coatings, Leather, Rubber, Lead Core, Food, Cosmetics, Insulation
Steps
1. Add the raw materials to the natural hopper composed of the middle and rear two rollers and the baffle plate
2. Start the equipment, the middle and rear two rollers opposite asynchronous swirl/spin for preliminary grinding
3. High-speed secondary grinding of raw materials through the middle front continuous roller
4. Collect finished product after finishing grinding
Notice
• Material viscosity should be controlled within the range of 30~ 8000cps
• The starting particle size should be kept at 50~ 100μm
• Check whether all parts of the equipment are normal before operation
• Use the equipment strictly according to the specifications
