Overview

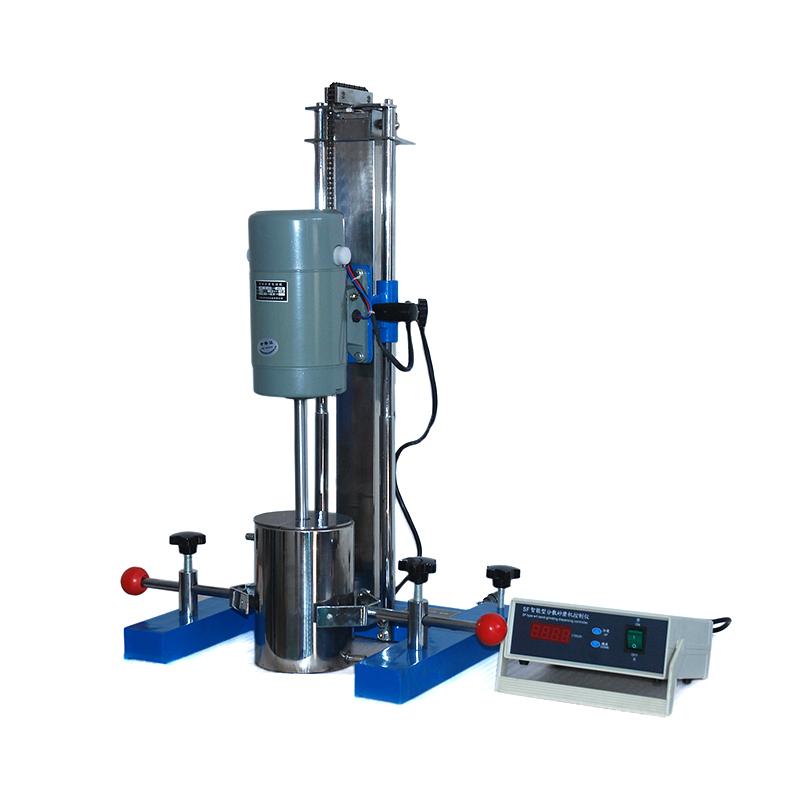

The JINGKELIAN SF0.4 sand mill dispersion and stirring multi-purpose machine is designed with new foreign technology. It is a multi-purpose equipment that can be used as Grinder, Disperser and Stirrer at the same time. The equipment adopts an electronic constant force speed control line, which directly displays the rotating shaft Rotation speed digitally, and is equipped with a variety of abrasive wheels blades and dispersed stirring blades. It is a satisfactory experimental equipment tested in Coating inks laboratory. It can adapt to different experimental needs in the laboratory. It can directly calculate the relationship between the linear velocity of the stirring and dispersing sand mill blades and the material viscosity and chemical reaction rate according to the displayed rotating shaft speed, providing correct data for large-scale production.
Features

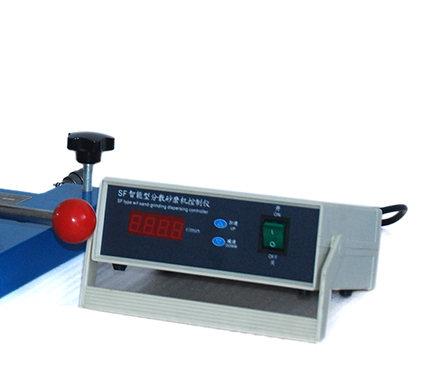

1. Adopt series rectifier motor, through electronic constant force stepless speed regulation, digital direct display of shaft Rotation speed
2. Sand grinding blades and Disperser Impellers are directly connected to the rotating shaft with threads

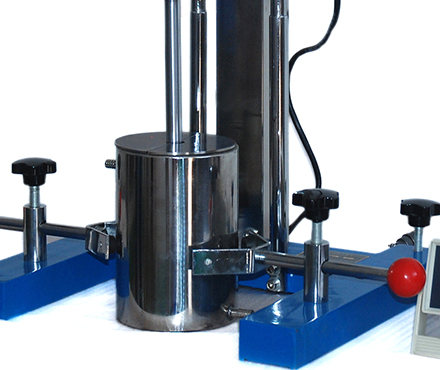

3, the cylinder adopts jacket structure, can be chilled down by water, made of stainless steel material
4. Can be used as Grinder, Disperser and Stirrer at the same time
5, equipped with a variety of abrasive wheels, dispersed stirring sheet
Principle
The SF0.4 grind dispersing and stirring multi-purpose machine adopts a series rectifier motor, which realizes Rotation speed control through an electronic constant force stepless speed regulation system. The sand grinding blades and Disperser Impeller are directly connected with the rotating shaft with threads, and the high-speed swirl/spin of the rotating shaft drives the blades and blades to grind, disperse and stir the material. The cylinder body adopts a jacket structure, which can control the temperature of the material through chilled down water.
Applications
Coating inks laboratory test
Steps
1. Turn on the power supply and turn on the power switch
2. Adjust the required Rotation speed through the speed control knob, observe the digital display Rotation speed
3. Select the appropriate sand grinding blades or dispersed stirrers as required
4, Adjust the lift Travel to the appropriate position
5. Start the equipment for grinding, dispersing or stirring operations
6. Turn off the power switch after the operation is completed
Notice
• Make sure the equipment is well grounded before use
• When adjusting the speed, swirl/spin the speed knob slowly
• Pay attention to observe the Rotation speed display to avoid overspeed operation
• Regularly check brush abrasion
• Keep the equipment clean to avoid material residue
• Pay attention to check the pipeline connection when using chilled down water
