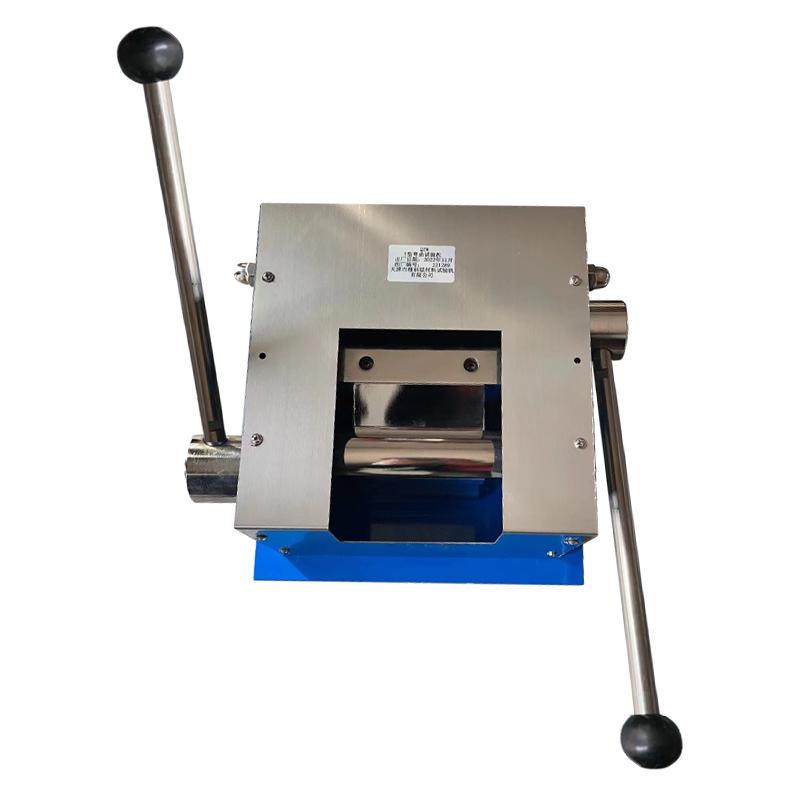

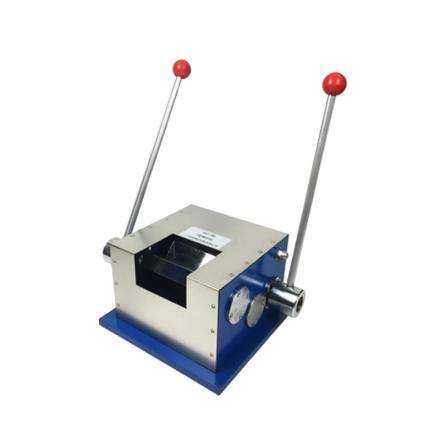

JINGKELIAN QZW T type bending test film flexibility Tester, bending angle is less than 45 degrees

Name: JINGKELIAN QZW T type bending test film flexibility Tester, bending angle is less than 45 degrees
Brand: JingKeLian
SKU: NB001535
Price: 531.0 USD
Availability: InStock

$ 531.00Ex works

The test bending angle is less than 45 degrees, suitable for steel plate thickness 0.5~ 1.0mm and Aluminum Panel thickness 0.5~ 2.0mm. The gear pair and crank lifting mechanism are used to achieve T-shaped bending, which is easy to operate.

Model

Get Quote

Category : Bend Tester

Brand : JingKeLian

SKU : NB001535

Service :The delivery and service By NBCLab.Com

Overview

QZW T-type bend test machine is a special test equipment designed by JINGKELIAN according to the GB/T1 2754-91 standard. It is used to test the flexibility of film and has an important reference role in the screening of Coating formulations. The test bending angle of this equipment is less than 45 degrees, which is suitable for the bending test of coatings such as color steel plates and steel strips.

Features

1, according to GB/T1 2754-91 standard design 2. The test bending angle is less than 45 degrees 3, suitable for color steel plate and steel coating test 4. Accurate test, important reference for Coating formula screening

Principle

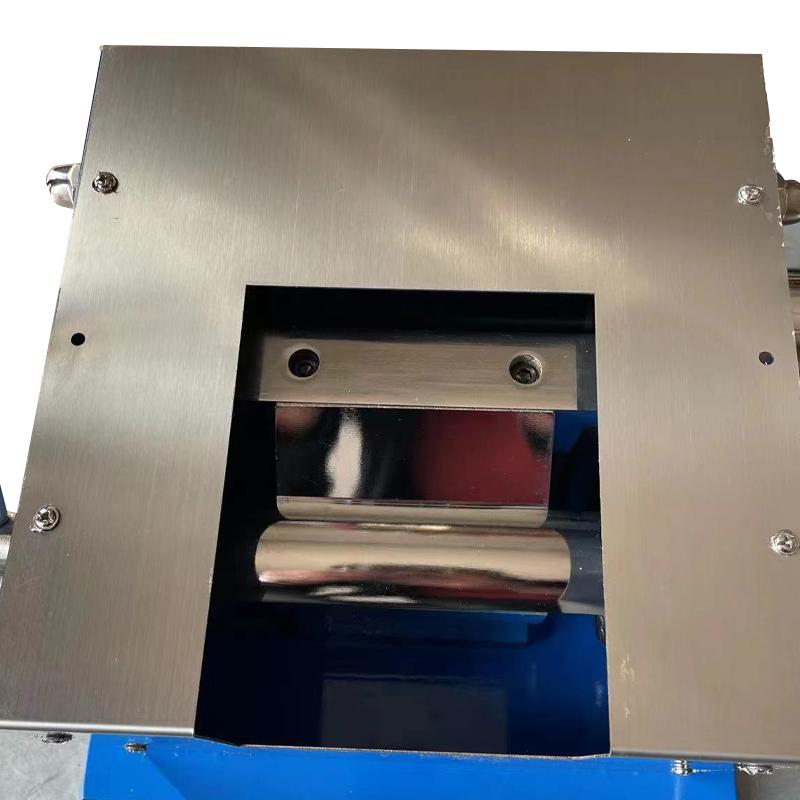

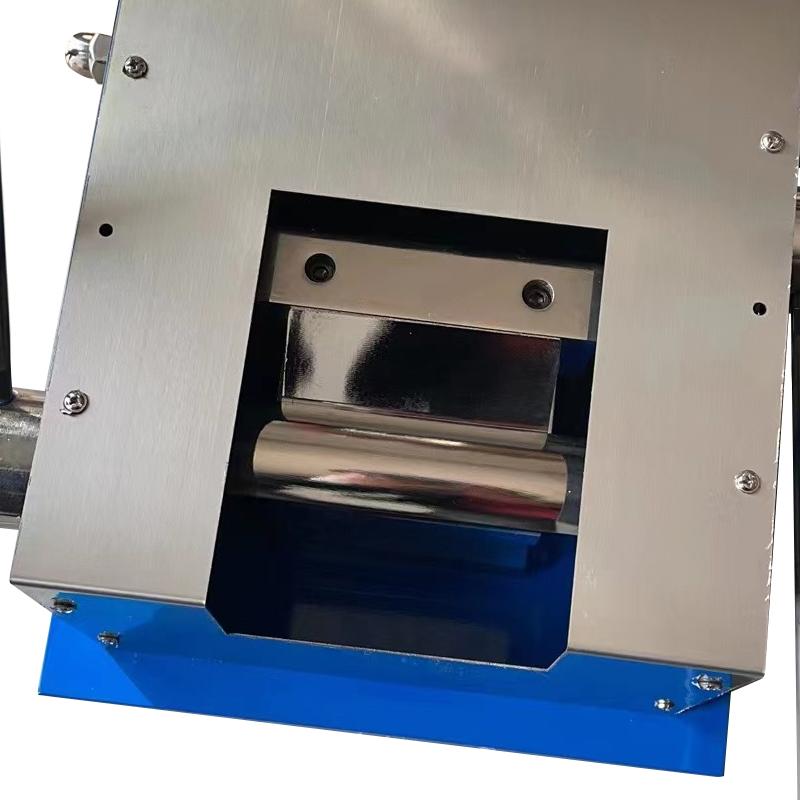

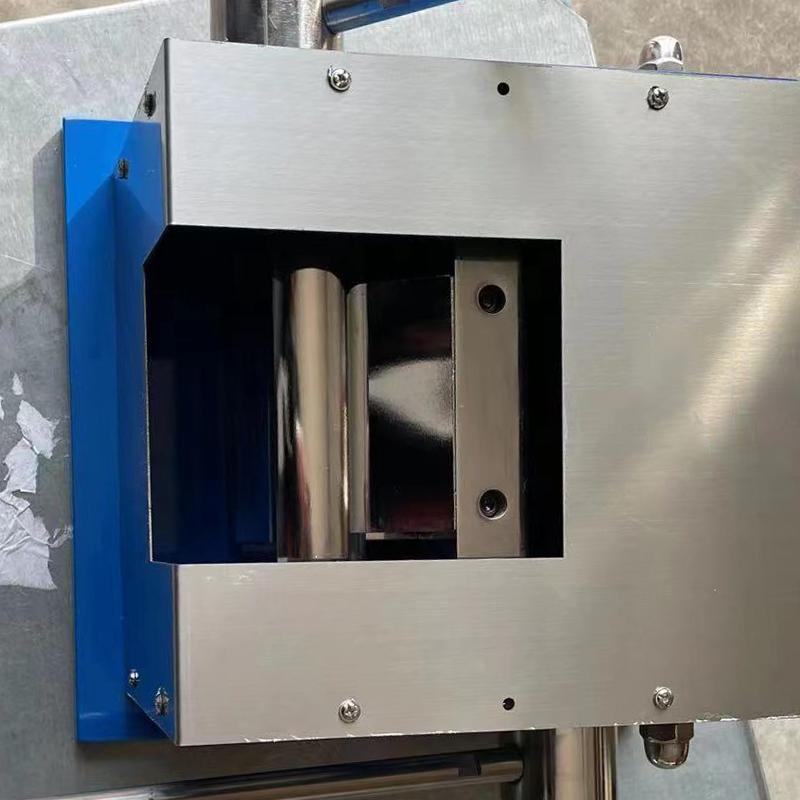

By rotating the left handle, the square-shaped bending briquette is formed into a shape with an angle of less than 45 °; then the right handle is rotated to drive the crank lifting mechanism to lift the triangular bending briquette to achieve clamping or flattening of the test piece, forming a T-shaped bend.

Applications

Color steel plate and steel strip coating test, Coating formula screening

Standards

GB/T12754-91

Steps

1. Rotate the left handle to form a square bending briquette with a bending test piece at an angle of less than 45 ° 2. Turn the right handle to drive the crank lifting mechanism 3. Lift the triangular bending block to achieve clamping or flattening of the test piece

Notice

• Suitable for steel plate thickness 0.5~ 1.0mm • Suitable for Aluminum Panel Thickness 0.5~ 2.0mm • Flattening mechanism Travel ≥ 10mm

primary bend angle
＜45°
Flattening Body Travel
≥10mm
Testable steel plate thickness
0.5~1.0mm
Aluminum Panel Thickness
0.5~2.0mm
Meet the standard
GB/T12754-91

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
