OSP-09 L2000Φ 16 formed steel wire coating bar D-Bar ultra-thin Spreader 1.5μm wet-film

Name: OSP-09 L2000Φ 16 formed steel wire coating bar D-Bar ultra-thin Spreader 1.5μm wet-film
Brand: OSP
SKU: NB015374

Please contact customer service

Using extrusion process and 304 stainless steel material, the wet film thickness can be controlled by 1.5μm, and the bottom of the groove is wider to increase the Coating Weight, so as to avoid the problem of steel wire loosening and blockage.

Model

OSP-09 L2000 Φ16
OSP-09/60

Get Quote

Category : Metering Rod

Brand : OSP

SKU : NB015374

Service :The delivery and service By NBCLab.Com

Overview

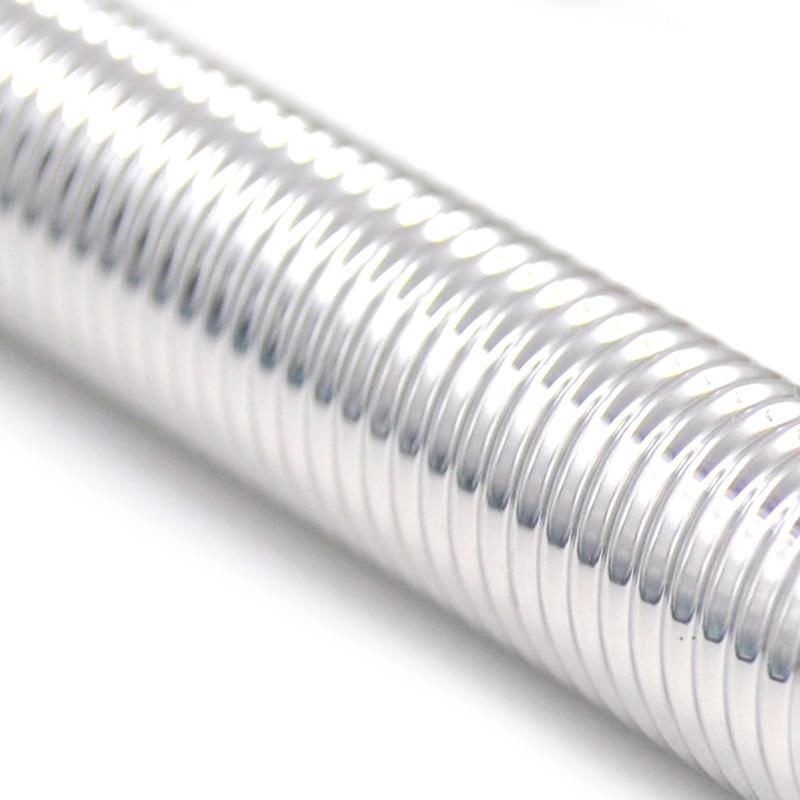

OSP-09 L2000φ 16 formed steel wire coating bar is a Japanese OSP brand product, manufactured by extrusion process, made of 304 stainless steel, with chrome plating on the surface. This product is specially designed for precise control of Coat Weight, with a minimum control of 1.5μm wet film thickness, to achieve ultra-thin Spreader, effectively replacing traditional steel wire coating bar.

Features

1. Made by extrusion process to avoid the problem of loose wire and broken wire of traditional steel wire coating bar 2. Easy to clean, not easy to clog 3. The surface shape can be changed freely 4. Wide Groove Bottom, Greater Coating Weight 5. Accurate wet film thickness control, up to 1.5μm minimum 6. Specifications and lengths can be customized

Principle

Spreader liquid on the surface of the substrate, using a D-Bar formed wire coating bar to adjust (scrape off) the amount of liquid, through precise control of the wet film thickness to achieve uniform Spreader.

Applications

Film, Glass, Paper, Encasement Material, Tape, Magnetic Card

Steps

1. Spreader liquid on substrate surface 2. Use D-Bar formed wire coating bar to scrape off excess liquid 3. Adjust Coating Weight to desired wet film thickness

wet film thickness
9.0μm
Total length
2000mm
Effective application width
2000mm
Main rod diameter
16mm
Surface process
chrome plating
Production process
Extrusion process
material
304 stainless steel
