OSP-12 L2000Φ 16 formed steel wire coating bar D-Bar ultra-thin Spreader 1.5μm wet film thickness

Name: OSP-12 L2000Φ 16 formed steel wire coating bar D-Bar ultra-thin Spreader 1.5μm wet film thickness
Brand: OSP
SKU: NB015376

Please contact customer service

Using extrusion process and 304 stainless steel material, the minimum wet film thickness is 1.5μm, the bottom of the groove is wider, the Coating Weight is larger, it is not easy to block and easy to clean, and the length can be customized.

Model

Get Quote

Category : Metering Rod

Brand : OSP

SKU : NB015376

Service :The delivery and service By NBCLab.Com

Overview

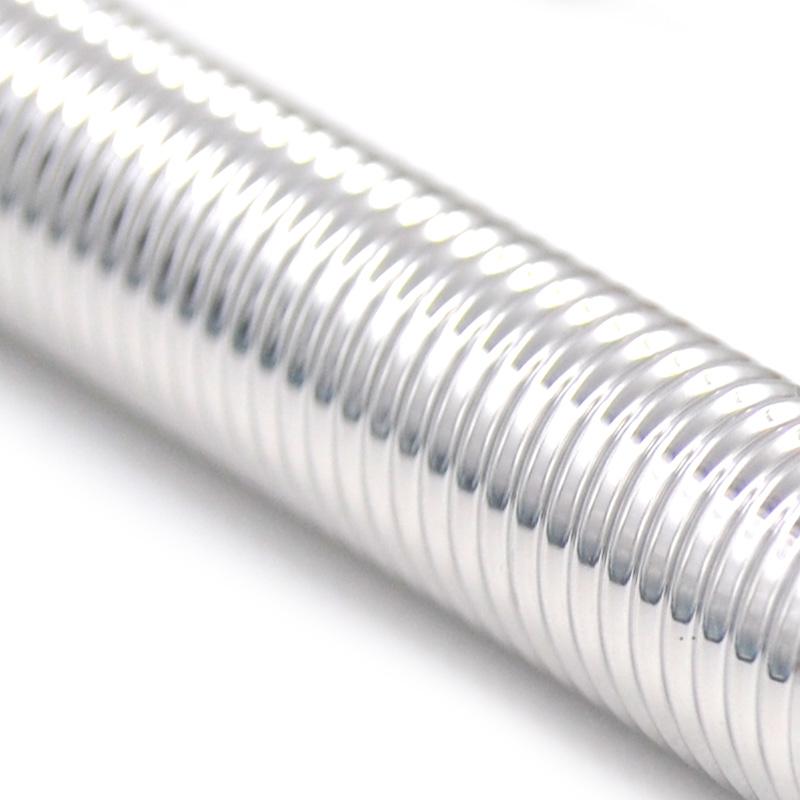

OSP-12 L2000φ 16 formed wire coating bar is a professional Spreader tool produced by the Japanese OSP brand. It is made of 304 stainless steel and extrusion process, and the surface is chrome-plated. The product is specially designed to replace the traditional steel wire coating bar. It can precisely control the wet film thickness to 1.5μm and achieve ultra-thin Spreader. The total length is 2000mm, the effective application width is 2000mm, and the main rod diameter is 16mm.

Features

1. Made by extrusion process to avoid the problem of loose wire and broken wire of traditional steel wire coating bar 2. Easy to clean, not easy to clog 3. The surface shape can be changed freely 4. The bottom of the groove is wider than the traditional steel wire coating bar, and the Coating Weight is larger 5. Can precisely control the wet film thickness to 1.5μm 6. Surface chrome plating, good durability 7. Specifications and lengths can be customized

Principle

Spreader liquid on the substrate surface, using D-Bar formed wire coating bar to adjust (scrape off) the amount of liquid. By controlling the gap between the coating bar and the substrate, the thickness of the Spreader is precisely adjusted to achieve uniform coating distribution.

Applications

Film, Glass, Paper, Encasement Material, Tape, Magnetic Card

Steps

1. Spreader liquid on substrate surface 2. Use D-Bar formed wire coating bar to scrape Spreader surface 3. Spreader thickness control by adjusting coating bar angle and pressure

wet film thickness
12μm
Total length
2000mm
Effective application width
2000mm
Main rod diameter
16mm
Surface process
chrome plating
Production process
Extrusion process
material
304 stainless steel
