OSP-35 L2000Φ 16 formed wire coating bar D-Bar Ultra thin Spreader 1.5μm

Name: OSP-35 L2000Φ 16 formed wire coating bar D-Bar Ultra thin Spreader 1.5μm
Brand: OSP
SKU: NB015382

Please contact customer service

The wet film thickness can be controlled by 1.5μm, the bottom of the groove is wider and the Coating Weight is large, and the extrusion process and chrome plating surface are adopted, which is not easy to loosen the broken wire, easy to clean and not blocked.

Model

Get Quote

Category : Metering Rod

Brand : OSP

SKU : NB015382

Service :The delivery and service By NBCLab.Com

Overview

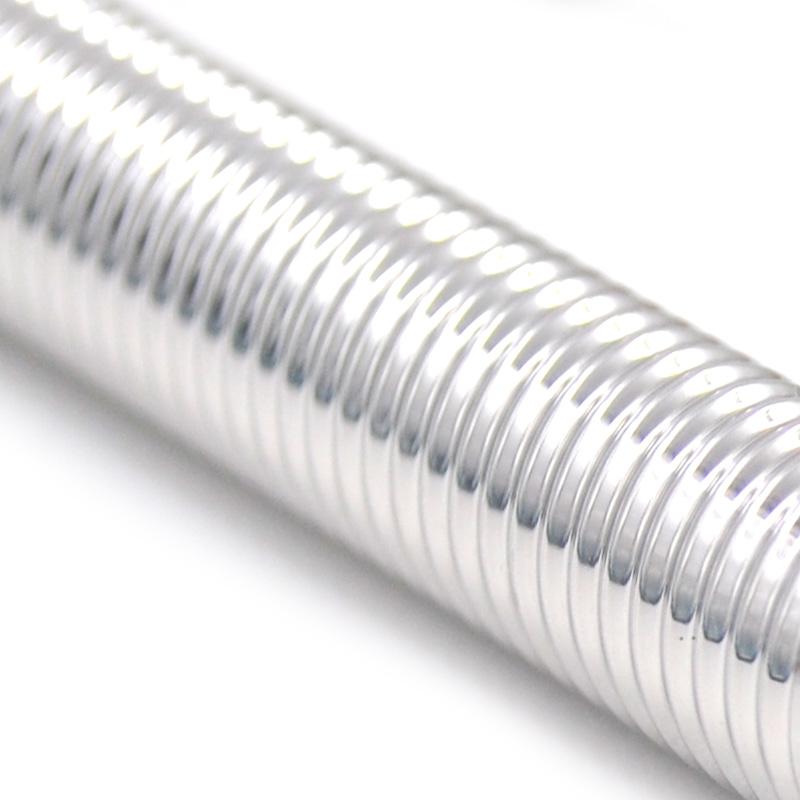

OSP-35 L2000φ 16 formed wire coating bar is a professional Spreader tool produced by the Japanese OSP brand. It is made of 304 stainless steel material and extrusion process, and the surface is chrome-plated. This product is specially developed to solve the FAQ of traditional wire coating bar. It can precisely control the wet film thickness to 1.5μm to achieve ultra-thin Spreader.

Features

1. Adopt D-Bar design to avoid steel wire loosening and disconnection problems 2. Easy to clean, not easy to clog 3. The surface shape can be changed freely 4. The bottom of the groove is wider than the traditional steel wire coating bar, and the Coating Weight is larger 5. Chrome-plated surface technology, strong durability 6. Specifications and lengths can be customized

Principle

When Spreader liquid is applied to the surface of the substrate, a D-Bar formed coating rod is used to adjust and scrape off the excess liquid amount, and a uniform Spreader is achieved by precisely controlling the thickness of the Spreader. Its special groove design provides greater Coating Weight while maintaining precise control of the thickness of the Spreader.

Applications

Film, Glass, Paper, Encasement Material, Tape, Magnetic Card

Steps

1. Spreader liquid on substrate surface 2. Use the D-Bar coating rod to scrape off excess liquid 3. Adjust Spreader Thickness to Required Specifications

wet film thickness
35μm
Total length
2000mm
Effective application width
2000mm
Main rod diameter
16mm
Surface process
chrome plating
Production process
Extrusion process
material
304 stainless steel
