JINGKELIAN KTQ-50 Adjustable coating Applicator Stainless steel material +/- 2μm accuracy 0-3500μm film

Name: JINGKELIAN KTQ-50 Adjustable coating Applicator Stainless steel material +/- 2μm accuracy 0-3500μm film
Brand: JingKeLian
SKU: NB001539
Price: 232.0 USD
Availability: InStock

$ 232.00Ex works

Made of stainless steel to ensure durability, the film thickness is finely adjusted in units of 10 μm in the range of 0-3500 μm, the accuracy is +/- 2 μm, and the operation is easy to control the drawdown blade gap through the differentiator.

Model

Get Quote

Category : Film Applicator

Brand : JingKeLian

SKU : NB001539

Service :The delivery and service By NBCLab.Com

Overview

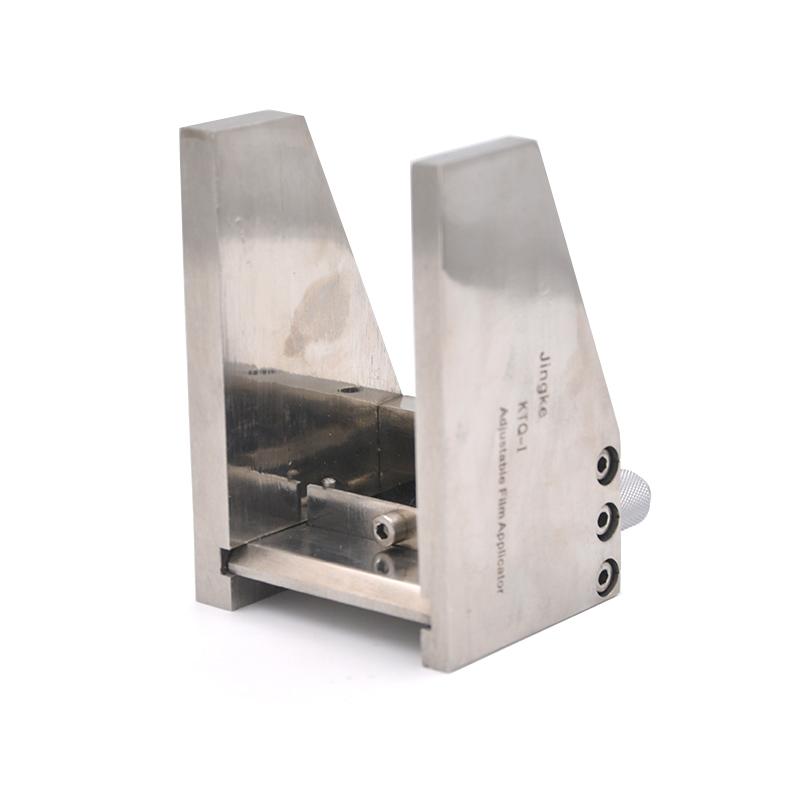

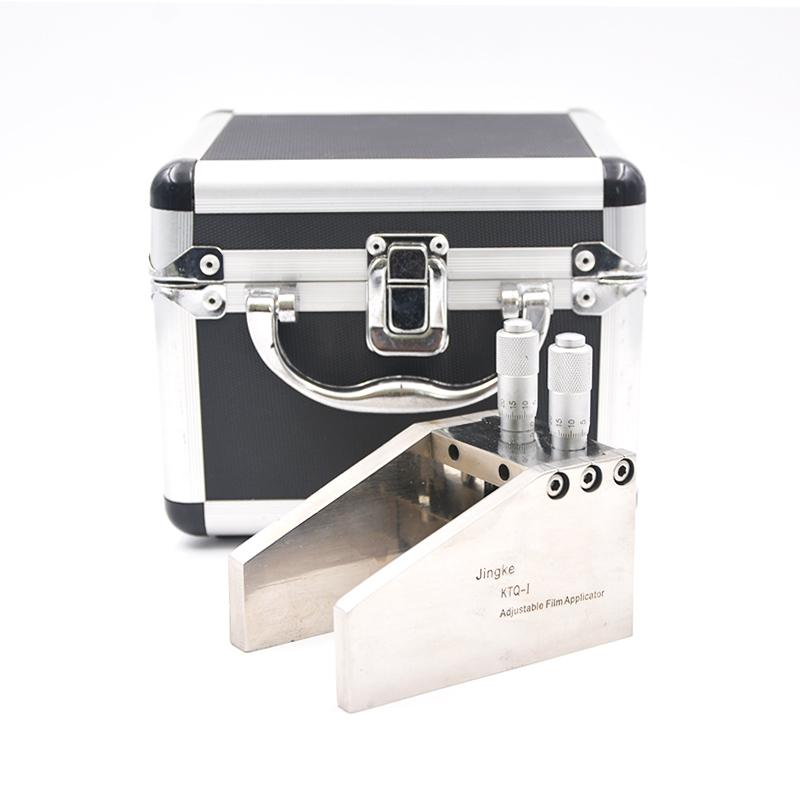

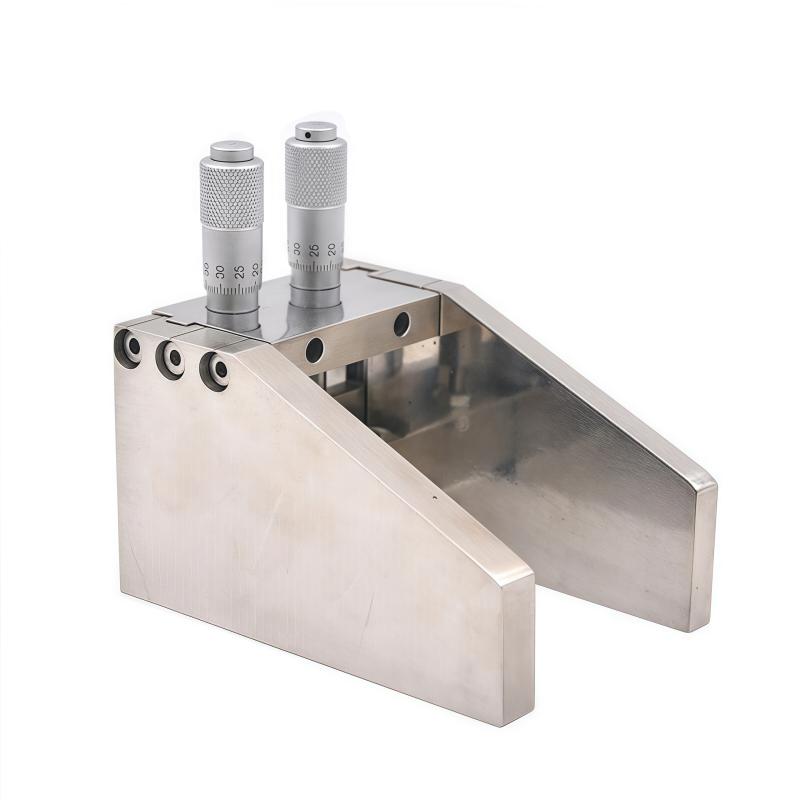

The JINGKELIAN Micrometer Film Applicator KTQ-50 is an adjustable coating applicator of the KTQ-I model in the KTQ series with an application width of 50mm. The film applicator film accuracy is +/- 2 μm and can be adjusted freely from 0 to 3500 μm film thickness. Adjust the drawdown gap blade every 10 μm.

Features

1. Adjustable design, film thickness range 0~ 3500 μm free adjustment; 2. High Accuracy film, accuracy of +/- 2 μm; 3. Fine adjustment of drawdown blade clearance per 10 μm; 4. Stainless steel material, strong durability; 5. Lightweight design, Net weight 450g, Dimension compact.

Principle

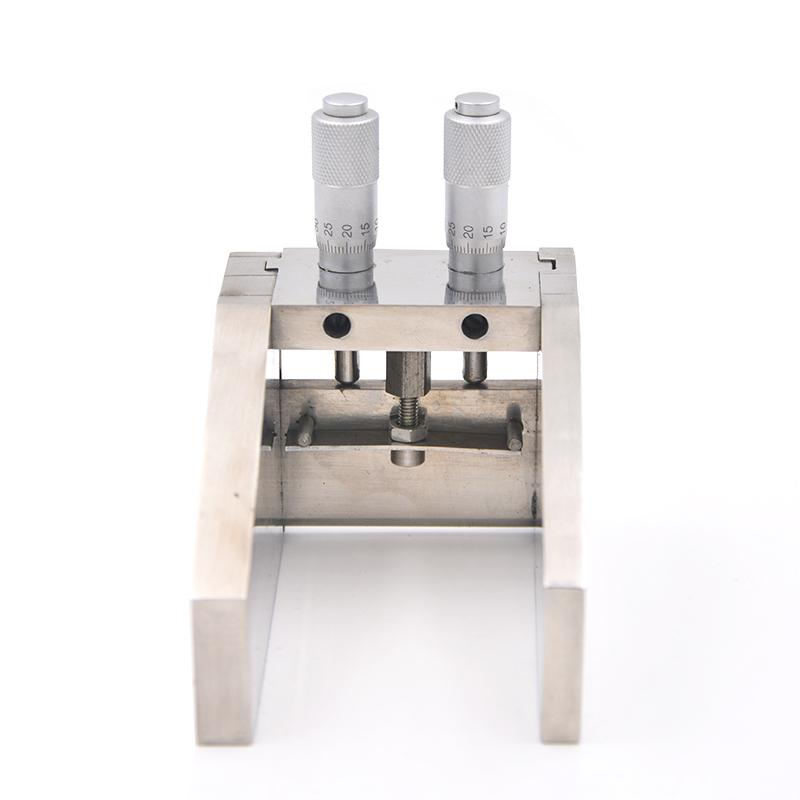

Micrometer Film Applicator by adjusting the film applicator above the two differentiators, can be adjusted in the direction below the drawdown blade to control the gap, i.e. the thickness of the final coating.

Applications

Spreader, coating prepative

Steps

1. Adjust the two differentiators above the film applicator; 2. Adjust the drawdown blade up and down to control the gap; 3. Set the drawdown blade position according to the required thickness.

Notice

• Ensure accurate adjustment of the differentiator before use; • Avoid damage caused by excessive adjustment of the drawdown blade; • Regularly clean and maintain the film applicator to maintain accuracy.

Type
adjustable
wet film thickness
0~3500μm
application width
50mm
accuracy
±2μm
material
stainless steel
Size
120*115*105mm
Net weight
450g

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
