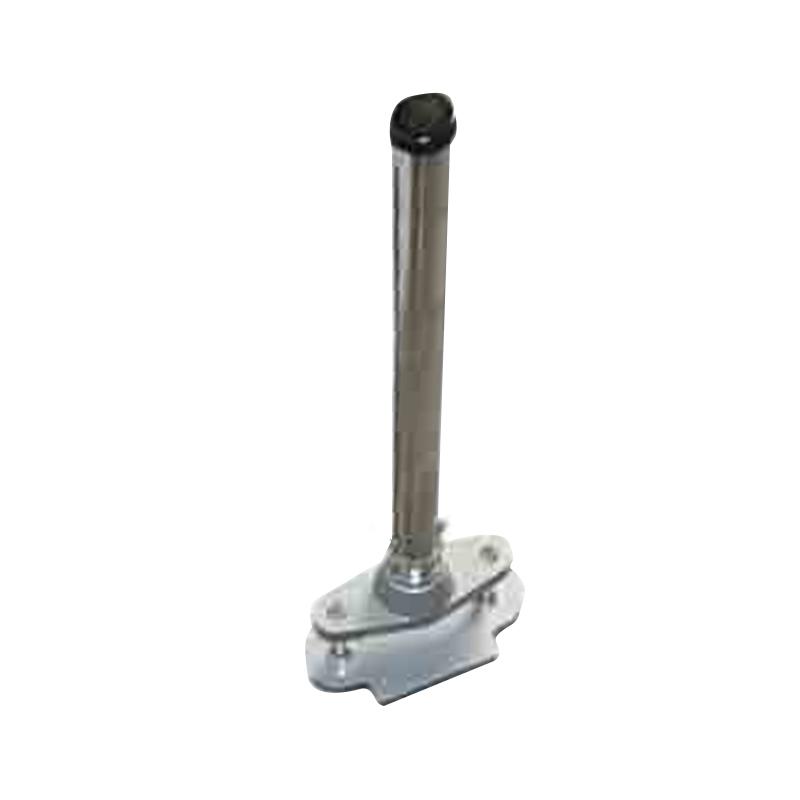

JINGKELIAN QSX-17 Perforation resistance instrument, waterproof membrane Detector 500mm catheter 12.7mm steel ball

Name: JINGKELIAN QSX-17 Perforation resistance instrument, waterproof membrane Detector 500mm catheter 12.7mm steel ball
Brand: JingKeLian
SKU: NB001541
Price: 257.0 USD
Availability: InStock

$ 257.00Ex works

Using 500mm scale conduit and 12.7mm steel ball punch Rod, weight 500g, impact test to evaluate the material anti-perforation performance, easy to operate and stable structure.

Model

QSX-17

Get Quote

Category : Other Instruments

Brand : JingKeLian

SKU : NB001541

Service :The delivery and service By NBCLab.Com

Overview

The JINGKELIAN QSX-17 anti-perforation instrument complies with the provisions of the standard GB12952-91. It is mainly used to measure the anti-perforation performance of the impact PVC waterproof membrane when the heavy hammer falls from a height, so as to inspect the qualification of the product. The instrument has a steel ball with a diameter of 12.7mm and a catheter length of 500mm.

Features

1. Comply with GB12952-91 standard 2. Adopt 500mm scale catheter, Graduation 10mm 3. Heavy weight accurate 500g +/- 1g 4. The diameter of the steel ball at the punch end is 12.7mm. 5. Equipped with 150mm x 150mm x 50mm foam polystyrene spacers 6. Equipped with 150mm x 150mm x 5mm aluminum backing plate 7. Compact structure, Net weight 11Kg, Dimension 280 * 155 * 832mm

Principle

Use the controller assembly to lift and fix the weight at the required height, which is read by the positioning mark. Press the control screw to compress the controller spring, so that the round hole of the controller slider is aligned with the round hole of the upper cover and lower bottom of the controller. The weight falls and strikes the punch rod, and the punch rod acts downward on the test plate. By lifting the weight and punch rod, take out the test plate to observe the resistance to perforation of the sample.

Steps

1. Use the controller assembly to lift the weight to the required height 2. Read the height value through the positioning mark 3. Press the control screw to compress the controller spring 4. Make the controller slider round hole align with the upper cover and lower bottom round hole 5. The weight falls and hits the punch rod 6. The punch bar acts downward on the test plate 7. Lift the hammer and punch 8. Remove the sample to observe the resistance to perforation

Metal conduit scale
500Mm Graduation 10mm
Heavy hammer
500g±1g
Punch end ball diameter
12.7mm
spacer
150Mm x 150mm x 50mm Foamed polystyrene with a density of 25Kg/m3
backing plate
150Mm x 150mm x 5mm Aluminum Panel
Net weight
11Kg
Dimension
280mm x 155mm x 832mm
