Overview

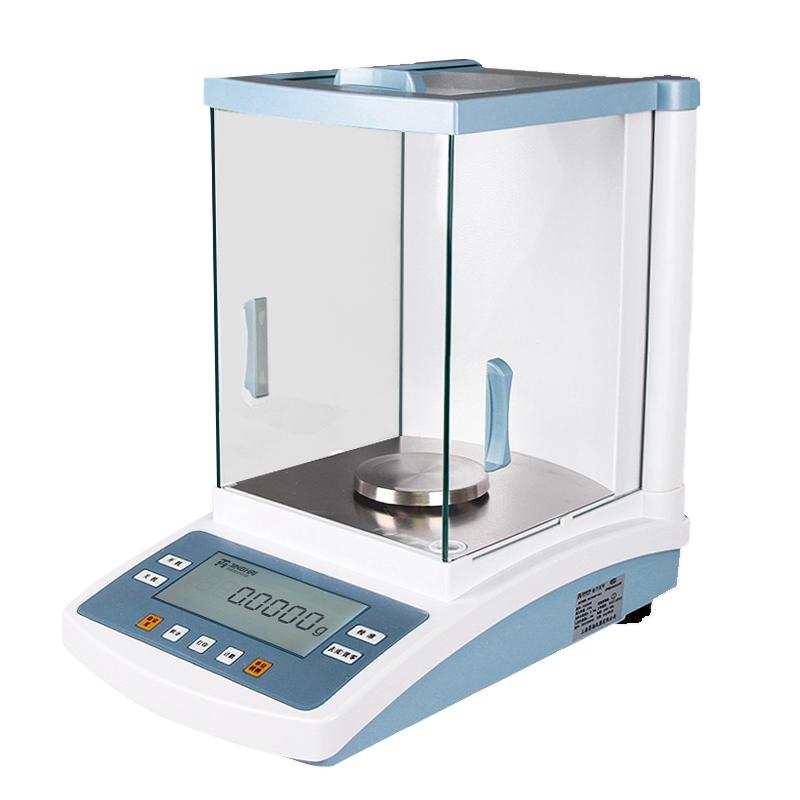

JINGHAI FA2104N (external calibration) Electronic Analytical Balance is a novel and easy-to-operate precision weighing device with an oversized soft backlit LCD display for superior performance. It has a fully automatic fault detection function to ensure safe use, and is equipped with an external Power Adapter to ensure accurate weighing and reading.
Features
1. Novel structure, large soft backlit LCD display, easy to operate and superior performance
2. Fully automatic fault detection to ensure the safe use of the product
3. Using a new generation of electromagnetic equilibrating Sensor, product accuracy is guaranteed
4. External Power Adapter ensures accurate weighing and reading
5. Built-in RS232 interface, can be connected to external devices such as computers/printers
6. With general weighing, counting weighing, percentage weighing and other weighing methods and unit conversion functions
7. With overload, underload alarm, four-level shockproof, dynamic temperature compensation, full scale peeling, accumulation/accumulation, bottom hook weighing and other functions
Principle
The Electronic Analytical Balance uses a new generation of electromagnetic equilibrating Sensors for weighing, enabling High Accuracy measurement through the principle of electromagnetic force equilibrating. Automatic fault detection and dynamic temperature compensation ensure Stability and accuracy of the weighing process.
Applications
Laboratory mass analysis
Steps
1. Place the Balance in the horizontal position and adjust it to the horizontal state through the level
2. Connect the Power Adapter to the power outlet and turn on the power
3. Select the weighing method as needed (such as general weighing, counting weighing, percentage weighing)
4. Place the sample on the pan for weighing
5. Use peel function to remove container weight (if needed)
6. Connect external devices (such as computers or printers) through the Interface for data transmission
7. Turn off the power after weighing
Notice
• Balance placed horizontally before use, checked by level
• Power supply voltage must be 220V 50Hz to avoid improper power supply
• Capacity must not exceed 210g to prevent overloading
• Operating temperature range is 0~ 40 ℃, avoid use in extreme temperatures
• Regular Check Adjustment to Ensure Weighing Accuracy
• Avoid strong vibrations and protect equipment with four-level shockproof function
Do not use corrosion chemicals when cleaning, keep the pan and panel clean
