Overview

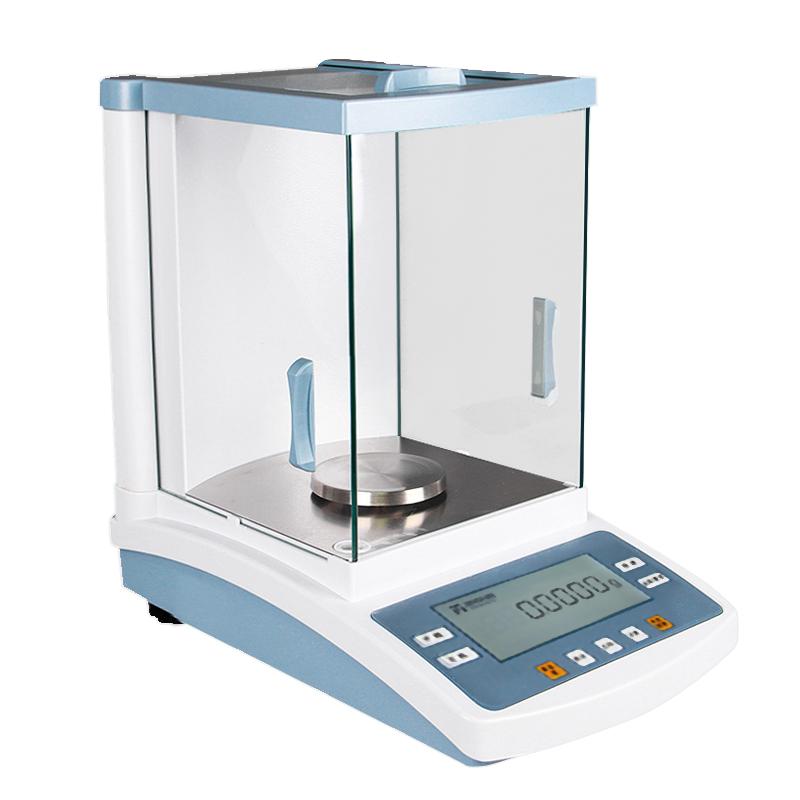

JINGHAI JA5003N (internal calibration) Electronic Analytical Balance is a High Accuracy weighing instrument with a new design for fast Response and reliable use. The Balance has functions such as automatic fault detection, Automatic calibration, overload protection, quad shock resistance and dynamic temperature compensation. It supports counting, percentage, unit conversion and other applications. The built-in RS232 interface can be connected to external devices.
Features
1. New design for fast weighing response and reliable use
2. Automatic fault detection, Automatic calibration, overload protection, four-level shockproof, dynamic temperature compensation
3. Supports counting, percentage, unit conversion, and other applications
4. Built-in RS232 interface, can be connected to computers, printers and other external devices
5. Auto Internal Cal, accurate and reliable, calibrated quickly
6. With a variety of weighing methods such as general weighing, counting weighing, percentage weighing, etc
7. Overload, underload alarm, full scale peeling, accumulation/accumulation, bottom hook weighing function
Principle
The Electronic Analytical Balance converts weights into electrical signals through the Sensor, displaying accurate readings after dynamic temperature compensation and a four-stage shock protection system. Automatic calibration ensures accurate weighing, with multiple weighing modes and unit conversions.
Applications
Laboratory mass analysis
Steps
1. Place the Balance in the horizontal position and observe the level adjustment to the horizontal state
2. Connect the power supply to the AC220V50Hz socket
3. Turn on and wait for the self-test to complete, Balance automatically calibrates internally
4. Place the sample on the φ 110mm pan for weighing
5. Select the desired weighing mode through the panel (general weighing, counting, percentage, etc.)
6. Read the display results, and output data can be connected to external devices through the RS232 interface
7. Turn off the power after use
Notice
• Balance placement level before use, adjusted by level
• Power supply must be AC220V50Hz, do not use Miscellaneous voltage
• The weighing range should not exceed 0~ 510g to avoid overloading
• Keep the pan clean to avoid foreign objects affecting the weighing accuracy
Periodically calibrated internally to ensure accuracy
• Avoid violent vibration and make full use of the four-level shock-proof function
• Make sure the interfaces match when connecting external devices
Packaging Dimensions 510 * 345 * 480mm, gross weight 8.5kg
