Overview

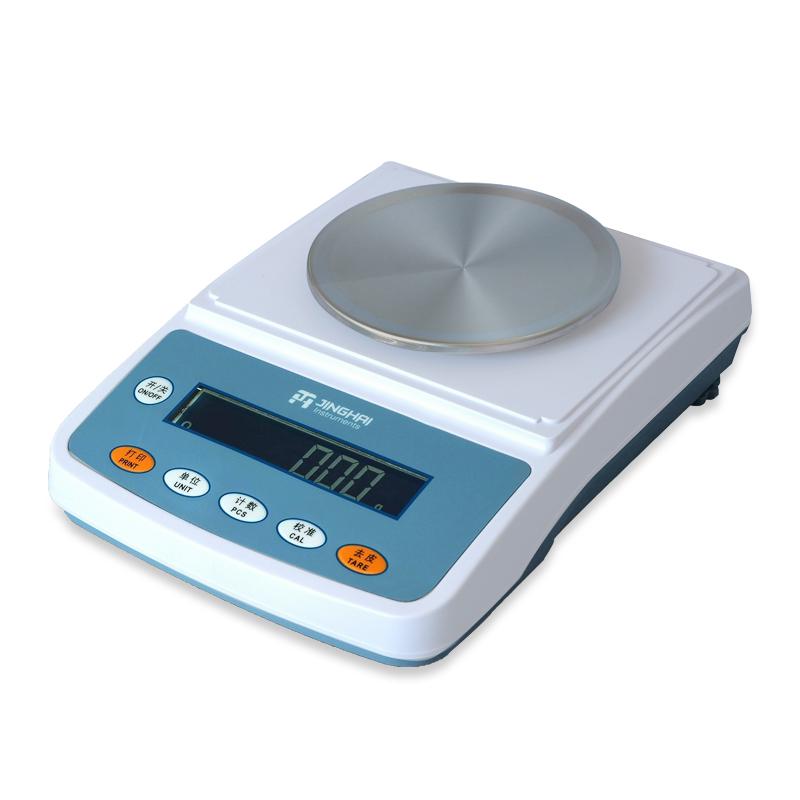

JINGHAI YP202N Precision Balance is a High Accuracy weighing instrument with a weighing range of 0 to 200g and a Readability of 0.01g. The Balance uses advanced technology with automatic correction and temperature compensation to ensure weighing Stability and accuracy, and is suitable for a variety of precision weighing scenarios.
Features
1. Automatic calibration program and automatic Zero tracking function to ensure weighing accuracy.
2. Counting function and unit conversion function, easy to operate.
3. Fast weighing response, clear reading, support to tare weight function.
4. Optional RS232 interface for easy data transmission.
5. Adopt SMT surface mount technology to improve product Reliability.
6. With temperature compensation function, enhance Balance Stability.
7. Optional AC/DC dual-use power supply to adapt to different Operating Environments.
8. Affordable and cost-effective.
9. Equipped with overload and undervoltage alarm functions to protect equipment safety.
Principle
Measurement accuracy is ensured by using automatic correction and temperature compensation technology to eliminate environmental factors by detecting the weight of the weighed object through the built-in Sensor. The data is displayed through an electronic processing system and supports unit conversion and counting functions.
Applications
Laboratory, Industrial weighing, Education and research, Medicine, Food processing
Steps
1. Place the Balance on a smooth surface and turn on the power.
2. Wait for the Balance self-test to complete and make sure it shows zero.
3. Use the automatic calibration function to calibrate (if required).
4. Place the object to be weighed on the pan and read the displayed value.
5. Use the tare weight removal function to remove container weight (if required).
6. Optional RS232 interface is available to connect external devices to transmit data.
Notice
• Avoid use in vibrating or unstable environments to prevent accuracy.
• Regularly clean the pan to prevent dirt accumulation.
• Power supply voltage matching to avoid overload operation.
• When not in use for a long time, it is recommended to disconnect the power supply to prolong the lifespan.
• If there is an alarm prompt, check and troubleshoot in time.
