Overview

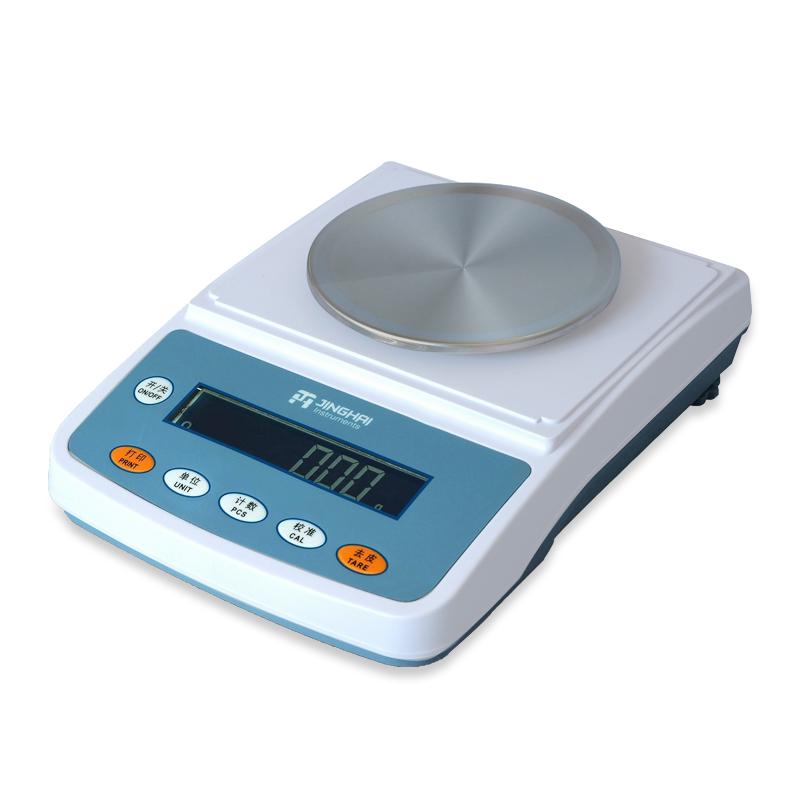

JINGHAI YP601N Precision Balance is a High Accuracy weighing instrument with a weighing range of 0~ 600g and a Readability of 0.1g. It uses SMT surface mount technology and temperature compensation function to ensure weighing Stability and accuracy, suitable for laboratory, industrial and other scenarios.
Features
1. Automatic correction program and automatic Zero tracking function to ensure measurement accuracy.
2. Counting function and unit conversion, easy and flexible operation.
3. Fast weighing response, clear reading, support to tare weight function.
4. Optional RS232 interface for easy data transmission.
5. Adopt SMT surface mount technology to improve product Reliability.
6. With temperature compensation function, enhance Balance Stability.
7. Optional AC and DC dual-use power supply, adapt to different environments.
8. Affordable and cost-effective.
9. Overload and undervoltage alarm function to protect equipment safety.
Principle
The Precision Balance detects the mass of the weighed object through the built-in Sensor, and eliminates environmental disturbances using automatic correction and temperature compensation technology to ensure accurate readings. Data can be output through the RS232 interface for efficient data processing.
Applications
Laboratory, industrial weighing, education and research, quality control, pharmaceutical manufacturing
Steps
1. Place the Balance on a smooth surface and turn on the power.
2. Wait for the Balance self-test to complete to ensure that the zero point is stable.
3. Use the automatic calibration function to calibrate (optional external calibrate).
4. Place the object to be weighed on the pan and read the clear display data.
5. If you need to tare weight, press the peel button to operate.
6. Use counting or unit conversion functions (if required).
7. Connect external devices through the RS232 interface (optional).
8. Turn off the power after use, clean and maintain.
Notice
• Avoid overloading to prevent damage to the Sensor.
• Power supply voltage is stable at 220V 50Hz to prevent undervoltage alarm.
• Regularly calibrate to maintain Measurement accuracy.
• Operating Environment should avoid strong electromagnetic interference.
• Do not use corrosion solvents when cleaning, keep the pan drying.
