Overview

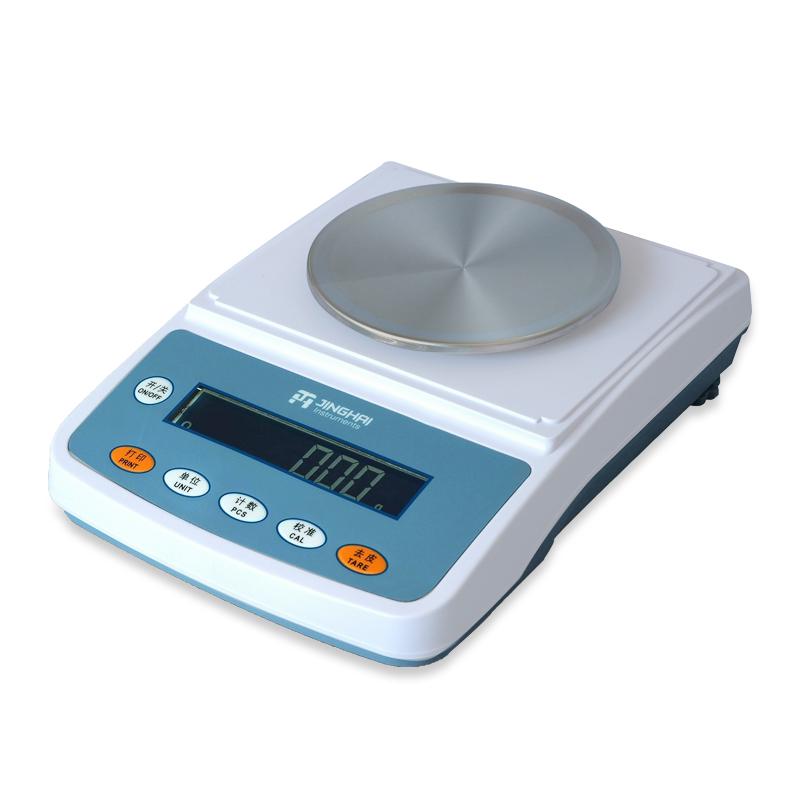

JINGHAI YP3001N Precision Balance is a High Accuracy weighing device with a weighing range of 0~ 3000g and a Readability of 0.1g. It uses SMT surface mount technology with automatic correction and temperature compensation to ensure weighing Stability and accuracy, suitable for a variety of weighing scenarios.
Features
1. Automatic correction program and automatic Zero tracking function.
2. Counting function and unit conversion, easy to operate.
3. Fast weighing response, clear reading, support to tare weight function.
4. Optional RS232 interface.
5. Adopt SMT surface mount technology.
6. With temperature compensation function, improve Balance Stability.
7. Optional AC and DC dual-use power supply.
8. Cheap and high quality, cost-effective.
9. Overload and undervoltage alarm function.
Principle
Precision Balance detects the mass of the weighed object through the built-in Sensor, using automatic correction and temperature compensation technology to ensure data accuracy. It uses SMT surface mount technology, combined with automatic Zero tracking and quick response mechanism to achieve efficient and stable weighing process.
Applications
Laboratory, industrial weighing, education and research, quality control, pharmaceutical manufacturing, Food processing
Steps
1. Place the Balance on a smooth surface and connect the power supply (optional AC-DC dual-use).
2. Turn on the power and wait for the Balance self-test to complete.
3. Use the automatic calibration function to calibrate (external Automatic calibration).
4. Place the item to be weighed on the pan to ensure stable reading.
5. Use the tare weight function to remove container weight (if necessary).
6. Read the display data, optional unit conversion or counting function.
7. Optional RS232 interface is available to connect external devices to transmit data.
8. Turn off the power after use, clean and maintain.
Notice
• Avoid overloading to prevent damage to the Sensor.
• Power supply voltage is stable at 220V 50Hz to prevent undervoltage alarm.
• Automatic calibration before use to ensure accuracy.
• Keep the pan clean to avoid affecting the weighing results.
• In environments with large temperature changes, use the temperature compensation function.
• Optional accessories require additional configuration, such as RS232 interface and AC/DC power supply.
