Overview

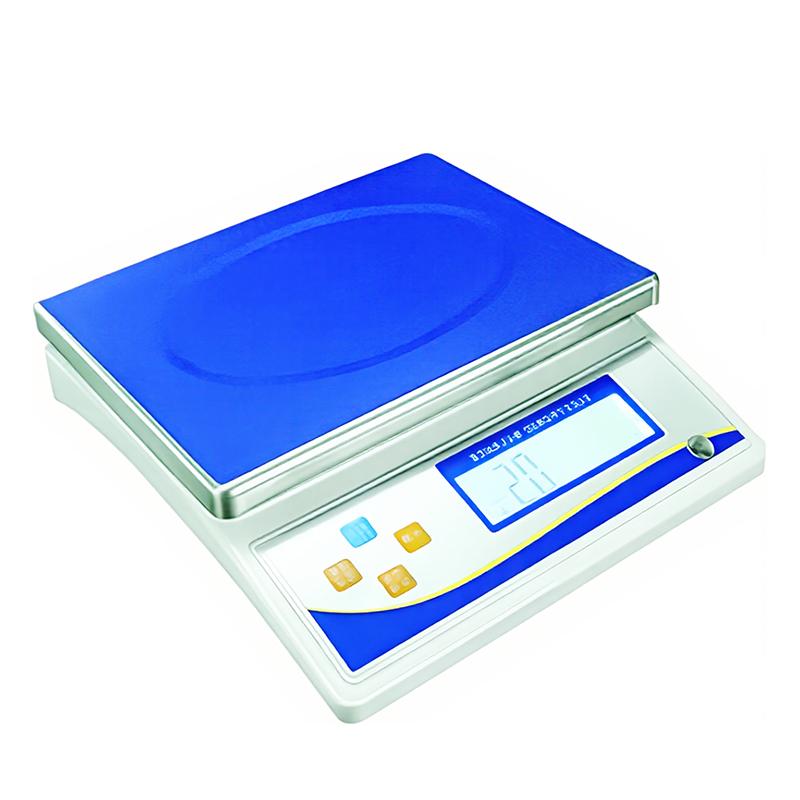

JINGHAI YP10KN Precision Balance is a High Accuracy weighing instrument with a weighing range of 0~ 10kg and a Readability of 1g. It uses SMT surface mount technology, has temperature compensation function to ensure stable weighing, and supports AC/DC dual-use (optional), suitable for a variety of environments.
Features
1. Automatic calibration program and automatic Zero tracking function to ensure weighing accuracy.
2. Counting function and unit conversion, easy to operate.
3. Fast weighing response, clear reading, support to tare weight function.
4. Optional RS232 interface for easy data transmission.
5. SMT surface mount technology to improve instrument Reliability.
6. Balance Stability enhanced by temperature compensation.
7. AC and DC dual-use (optional), adapt to different power supply environments.
8. Overload and undervoltage alarm function to protect the safety of the instrument.
9. Cheap and high quality, cost-effective.
Principle
The Precision Balance uses an internal Sensor to detect weight, combined with Auto Correction and Zero tracking technology to ensure weighing accuracy. The temperature compensation function automatically adjusts Ambient Temperature changes to maintain Balance stability and optimizes circuit performance through SMT technology.
Applications
Laboratory, industrial weighing, quality control, education and research, healthcare, Food processing
Steps
Place the Balance on a smooth surface and connect the power supply (220V 50Hz).
2. Turn on the power switch and wait for the Balance self-test to complete.
3. Use the automatic calibration function to calibrate (optional external Automatic calibration).
4. Place the item to be weighed on the pan and read the display data.
5. Use the tare weight function to remove container weight (if necessary).
6. Perform unit conversion or counting operations (if applicable).
7. Optional RS232 interface is available to connect external devices to transmit data.
8. Turn off the power after use and clean the pan.
Notice
• Avoid overloading to prevent damage to the Sensor.
• Power supply voltage is stable at 220V 50Hz to prevent undervoltage alarm.
Periodically calibrated to maintain accuracy.
• Keep the pan clean to avoid foreign objects affecting the weighing results.
• When using in an environment with large temperature changes, pay attention to whether the temperature compensation function is normal.
• When selecting the RS232 interface, please connect the data cable correctly.
• Avoid damp and vibrating environments when storing.
