Overview

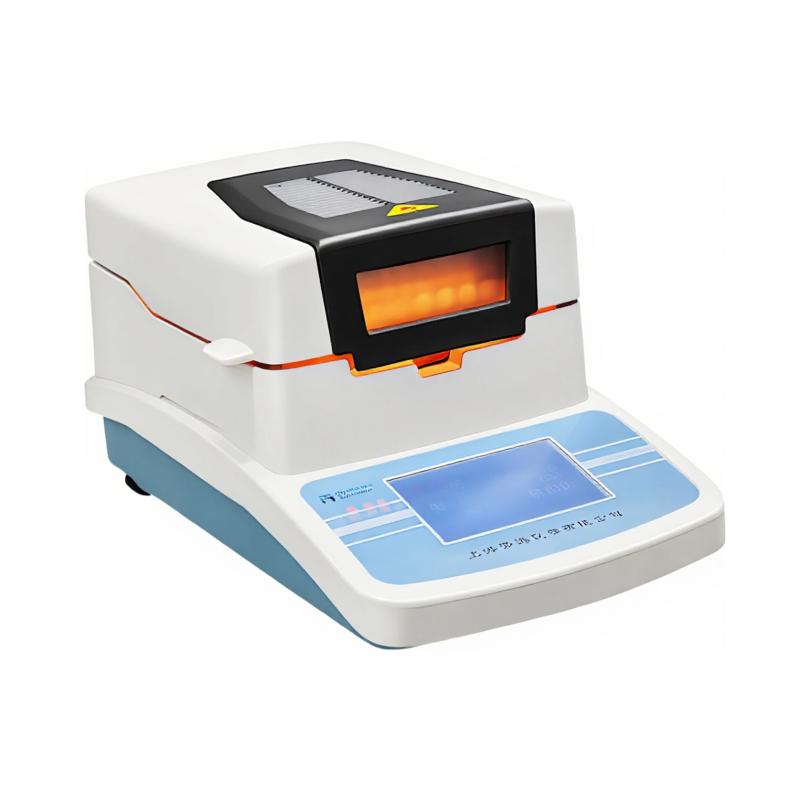

The JINGHAI DHS-16A electronic halogen Moisture Analyzer uses the halogen lamp thermal energy weight principle and is a rapid moisture detection instrument. While measuring the weight of the sample, the halogen lamp heating unit and water evaporation channel rapidly dry the sample, continuously measure and instantly display the percentage moisture content lost by the sample. After the drying procedure is completed, the final measured Moisture content value is locked and displayed.
Features
1. Using halogen lamp heating source, high heating efficiency
2. Capacity value 110g, weighing readability 0.002g
3. Moisture readability 0.01%, Repeatability 0.1%
4. Temperature range RT +~ 200 ℃, temperature adjustment accuracy +/- 1 ℃
5. Equipped with RS232C Communication interface
6. Timer Range 0~ 120 minutes
7. Display parameters include moisture and dry weight content%, ATRO dry weight, ATRO Wet Weight
Principle
Using the halogen lamp thermal energy weight principle, while measuring the weight of the sample, the sample is rapidly dried through the halogen lamp heating unit and the water evaporation channel, and the percentage of water lost in the sample is continuously measured and displayed in real time. After the drying procedure is completed, the final Moisture content value is locked and displayed.
Applications
Chemical raw materials, grains, food, minerals, paper, Spinning & weaving
Steps
1. Place the sample on the pan
2. Set heating temperature and time parameters
3. Start the measurement program, the instrument automatically heating drying
4. Instrument continuous measurement and display Moisture content changes
5. Moisture content value is locked after drying
Notice
• Power supply voltage AC220V 50HZ before use
• Maximum power consumption 480W, pay attention to power safety
• Heating temperature up to 200 ° C, pay attention to anti-scalding during operation
• Sample weight must not exceed 110g Capacity
• Regularly clean pan and instrument surfaces
