Overview

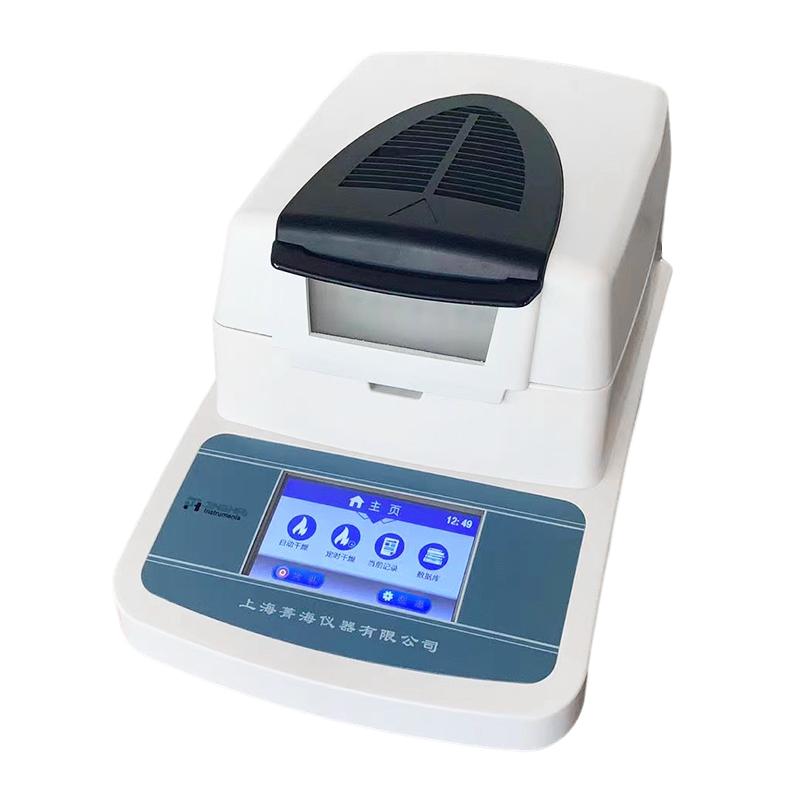

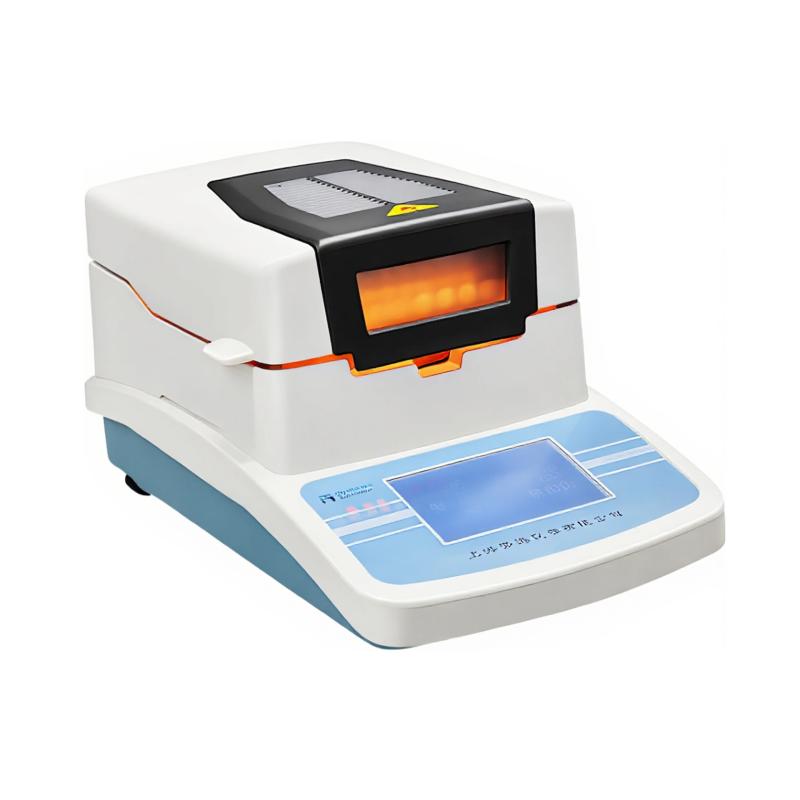

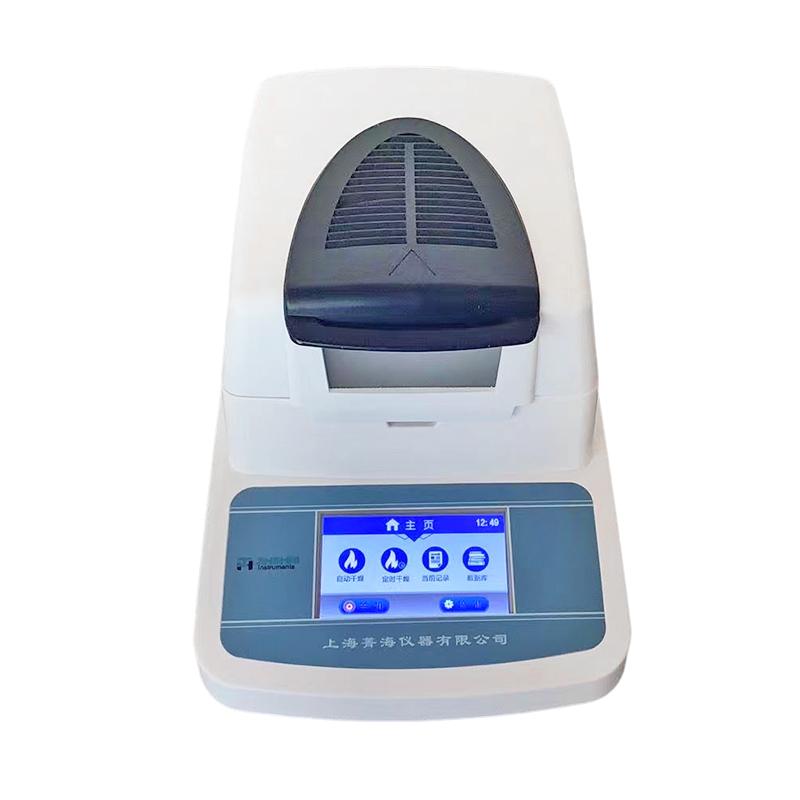

JINGHAI DHS-16 electronic halogen Moisture Analyzer uses the principle of halogen lamp thermal energy weight and is a rapid moisture detection instrument. While measuring the weight of the sample, the halogen lamp heating unit and water evaporation channel quickly dry the sample, continuously measure and instantly display the percentage of moisture lost in the sample. Moisture content is finally locked after the drying procedure is completed.
Features
1. Using halogen lamp heating source, high heating efficiency
2. Capacity value 110g, weighing readability 0.005g
3. Moisture readability 0.02%, Repeatability 0.2%
4. Temperature range RT +~ 200 ℃, temperature adjustment accuracy +/- 1 ℃
5. Equipped with RS232C Communication interface
6. With Timer Range 0~ 120 minutes
7. Comprehensive display parameters, including moisture and dry weight content%, ATRO dry weight, ATRO Wet Weight
Principle
Using the halogen lamp thermal energy weight principle, while measuring the weight of the sample, the sample is rapidly dried through the halogen lamp heating unit and the water evaporation channel to continuously measure and instantly display the percentage of water lost in the sample. After the drying procedure is completed, the measured Moisture content value is finally locked and displayed.
Applications
Chemical raw materials, grains, food, minerals, paper, Spinning & weaving
Steps
1. Place the sample on the pan
2. Set heating temperature and time parameters
3. Start the measurement program, the instrument automatically heats and dries the sample
4. Instrument continuous measurement and display Moisture content changes
5. After the drying procedure is completed, the final Moisture content value is locked
