Overview

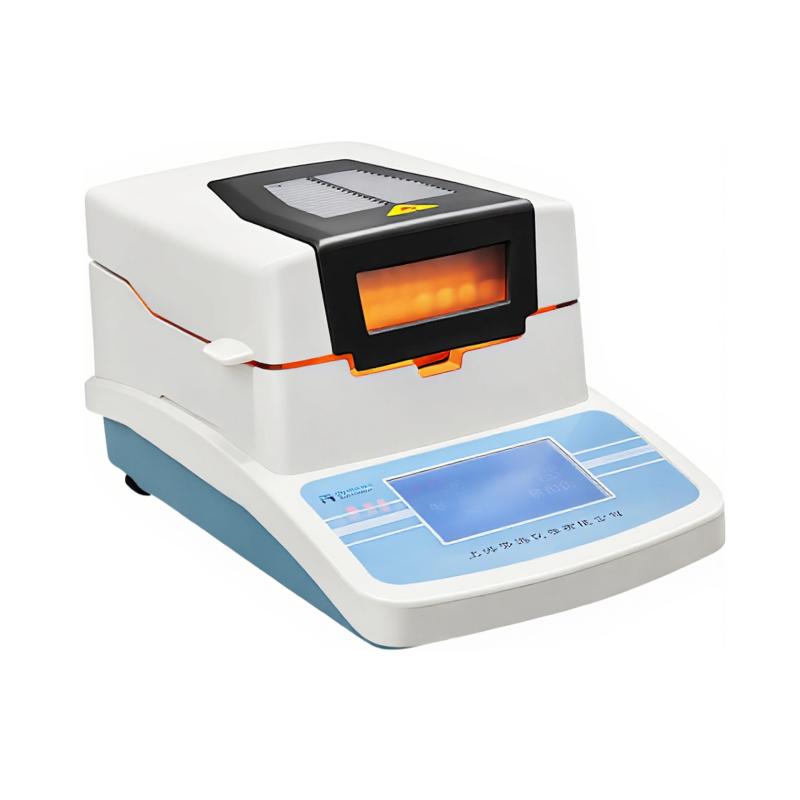

JINGHAI DHS-20A electronic halogen Moisture Analyzer is a rapid moisture detection instrument using the principle of halogen lamp thermal energy weight. The instrument rapidly dries the sample through the halogen lamp heating unit and water evaporation channel while measuring the weight of the sample. Continuous measurement and immediate display of the percentage of moisture content lost in the sample. After the drying procedure is completed, the final measured Moisture content value is locked and displayed.
Features
1. Using halogen lamp heating technology to achieve rapid drying
2. Real-time measurement and display of moisture percentage content
3. Automatically lock and display the final Moisture content after drying
4. High Accuracy Weighing System, readability up to 0.001g
5. Moisture readability up to 0.01%
6. Temperature adjustment accuracy +/- 1 ℃
7. Equipped with RS232C Communication interface
8. Capacity value 110g, Repeatability 0.1%
Principle
The Moisture Analyzer uses the halogen lamp thermal energy weight principle to generate heat through the halogen lamp heating unit while measuring the weight of the sample, and quickly dries the sample with the water evaporation channel. During the drying process, the instrument continuously measures the change of the sample weight, and instantly displays the moisture percentage content by calculating the ratio of the lost weight to the initial weight of the sample.
Applications
Chemical raw materials, grains, food, minerals, paper, Spinning & weaving
Steps
1. Place the sample on the pan
2. Set heating temperature and time parameters
3. Start the drying procedure
4. Instrument automatic measurement and display Moisture content change
5. Read the locked final Moisture content value after drying
Notice
• Power supply voltage AC220V 50HZ before use
• Maximum power consumption 480W, pay attention to power safety
• Heating Temperature range of RT +~ 200 ℃, shall not exceed the upper limit
• Timer Range 0~ 120min, set the drying time reasonably
• Pan Size φ 90mm, pay attention to the sample placement range
• Instrument weight 6.3kg, pay attention to safety when handling
