Overview

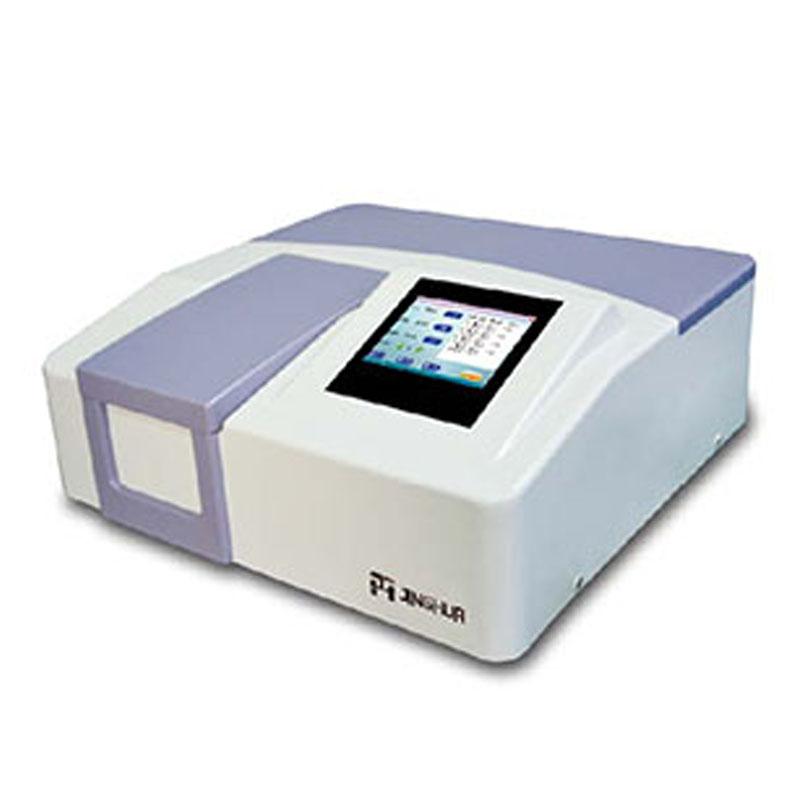

The JINGHUA UV1900 UV-Visible Spectrophotometer is a high-performance analytical instrument with a proportional dual beam of light path design and an automatic octagonal cell sample holder with low stray light, high resolution and high photometric linearity. It supports photometric, Basis Weight, regression equations, kinetics, multi-wavelength, DNA/protein, peak and valley detection and is suitable for a wide range of analytical applications.
Features
1. High-performance 1200L/mm UV special grating and unique monochromator optical path, combined with imported photoelectric converter, ensure low stray light, high resolution and high luminosity linearity.
2. Large sample chamber with a maximum optional 10cm sample holder to meet specific industry needs.
3. Imported long-life deuterium lamps and tungsten lamps ensure the high quality of Illuminant energy, long-term high Stability and Reliability of the instrument, and prolong the service life.
4. Professional automatic correction wavelength error function to ensure Test accuracy.
5. Computer and host integration, color Chinese/English touch display, large-scale integrated circuit, highly intelligent, automated, smooth and convenient to use, clear and intuitive reading of data and graphs.
6. With a variety of testing functions, including photometry, Basis Weight, regression equation, kinetics, multi-wavelength, DNA/protein, peak and valley detection, support for wavelength/time scanning.
7. Special software configuration, super memory function, quick recovery of test status when powered on, memory data and graphs, easy to export and compare analysis.
8. USB interface can be equipped with computer, printer, special software, keyboard or mouse and other peripherals.
Principle
Illuminant is separated by high-performance grating and monochromator. Absorbance or transmittance is detected by imported photoelectric converter. Wavelength error is automatically corrected to ensure measurement accuracy. Dedicated software processes data and displays map to realize intelligent analysis.
Applications
Biochemical analysis, drug testing, environment monitoring, food inspection, materials science, research and education
Steps
1. Turn it on and wait for the instrument to initialize.
2. Use Touchscreen to select the test mode (e.g. Luminosity, Basis Weight, etc.).
3. Place the sample in the automatic octagonal cell sample holder.
4. Set parameters such as Wavelength range.
5. Start the test, and the instrument automatically scans and displays the data map.
6. Save or export data through dedicated software.
Notice
• Make sure the instrument is placed stably to avoid vibration.
• Regularly check the life of the Illuminant and replace the deuterium lamp or tungsten lamp in time.
• Test accuracy by calibrating instruments before use.
• Avoid sample contamination and clean the sample holder.
• Follow safety regulations during operation to prevent electrical hazards.
• Backup data in time after saving to prevent loss.
