Overview

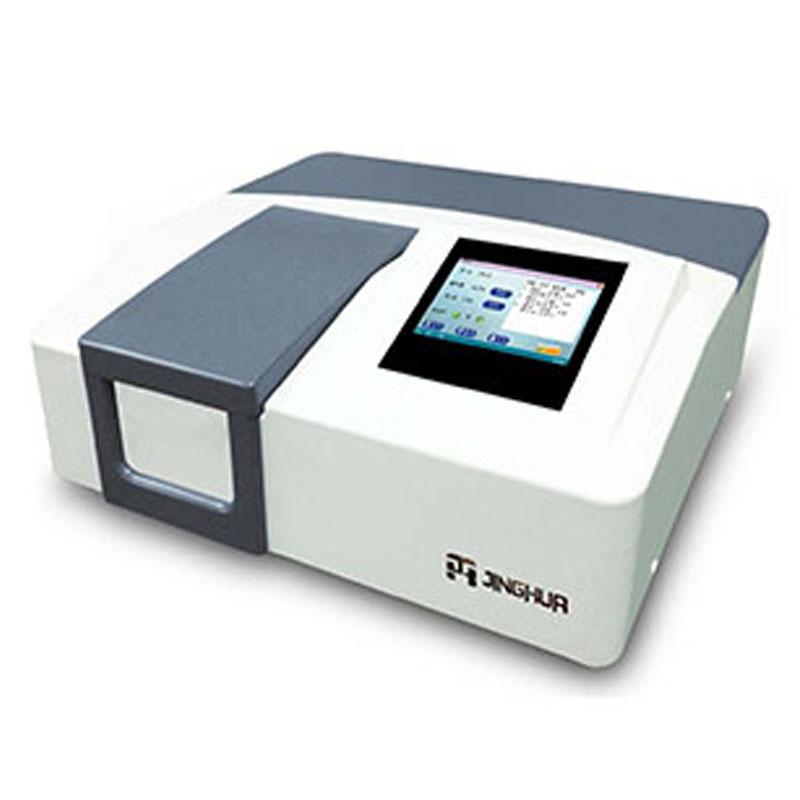

The JINGHUA 759MC UV-Visible Spectrophotometer is a high-performance analytical instrument that uses a proportional dual beam of light Optical inspection system and a 1200L/mm UV dedicated grating, combined with imported photoelectric converters to ensure low stray light, high resolution and high luminosity linearity. Equipped with a 7-inch color Chinese/English touch display and an automatic octagonal cell sample holder, it supports a variety of test functions such as luminosity, Basis Weight, kinetics, DNA/protein, etc., suitable for a wide range of analytical applications.
Features
1. High-performance 1200L/mm UV dedicated grating and unique monochromator optical path ensure low stray light, high resolution and high luminosity linearity.
2. Large sample chamber with optional 10cm sample holder to meet specific industry needs.
3. Imported Long Life Deuterium and Tungsten Lamps to Ensure High Stability and Reliability and Extend Service Life.
4. Automatic correction of wavelength error function to ensure Test accuracy.
5.7-Inch color Chinese/English touch screen, intelligent, automated operation, smooth and intuitive.
6. Supports a variety of testing functions, including photometric, Basis Weight, regression equations, kinetics, multi-wavelength, DNA/protein, and peak-to-valley detection.
7. The dedicated software has a super memory function, which can restore the test state, memorize the data map, and support data export and comparison analysis.
8. The USB interface can be connected to peripheral devices such as computers and printers.
Principle
The instrument adopts a proportional dual beam of light design. The light emitted by the Illuminant (deuterium lamp and tungsten lamp) is divided into a reference beam of light and a sample beam of light through a high-performance grating and a photoelectric converter. The absorption or transmission of light by the sample is measured to analyze the parameters such as Absorbance and concentration of the sample. Automatic wavelength correction and scanning functions ensure data accuracy and Repeatability.
Applications
Chemical analysis, biomedicine, environment monitoring, pharmaceutical industry, food testing, materials science
Steps
1. Turn it on and check the status of the instrument.
2. Select the test function (such as luminosity, Basis Weight, or kinetics) through the Touchscreen.
3. Place the sample in the automatic octagonal cell sample holder.
4. Set the wavelength and scanning parameters.
5. Start the test, and the instrument automatically scans and displays the data map.
6. Save or export data and use dedicated software for comparison and analysis.
Notice
• Ensure that the Instrument Operating Environment is Stable to Avoid Vibration and Strong Light Interference.
• Regularly check the life of the Illuminant and replace the deuterium lamp or tungsten lamp in time.
• Test accuracy by calibrating wavelength and transmittance before operation.
• When using dedicated software, back up important data to prevent loss.
When connecting USB devices, ensure compatibility and safe operation.
