Overview

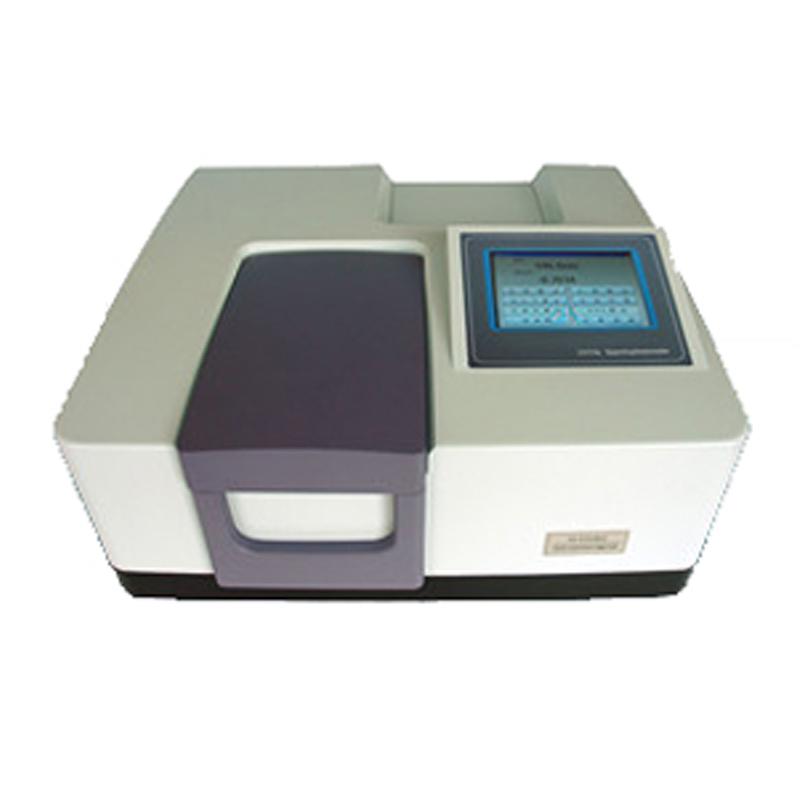

JINGHUA 7600 dual beam of light UV-Visible Spectrophotometer adopts standard dual beam of light optical path structure and 1600L/mm high-performance holographic blazing grating, equipped with imported long-life deuterium lamp/tungsten lamp and photoelectric converter, combined with color Chinese/English touch display and large-scale integrated circuit, to achieve highly intelligent operation. The instrument has the functions of luminosity, Basis Weight, Light spectrum scanning, kinetics/protein, DNA, multi-wavelength, peak and valley detection, etc., to meet the needs of a wide range of industry applications.
Features
1. Standard double beam of light path structure, equipped with 1600L/mm high performance holographic blazing grating, improve Test accuracy, Stability and resolution, reduce stray light.
2. Imported long-life deuterium/tungsten lamps and photoelectric converters are used to ensure the high quality of the Illuminant and the long-term Reliability of the instrument.
3. The computer is integrated with the host, equipped with a color Chinese/English touch screen and a large-scale integrated circuit to achieve intelligent and automated operation, and the data reading is clear and intuitive.
4. Dedicated Software supports a variety of data and graph processing functions, including four operations, smoothing, derivation, saving, printing, exporting and comparison analysis.
5. Automatic calibration wavelength error function to ensure Test accuracy.
6. Support USB output interface, can connect computers, printers, keyboards, mice and other peripheral devices.
Principle
The instrument is based on a dual beam of light optical path system. It splits light through a high-performance grating, uses an imported deuterium lamp/tungsten lamp to provide a stable Illuminant, and a photoelectric converter detects the change of sample Absorbance. Special software processes data to realize Light spectrum scanning and various analysis functions to ensure accurate measurement.
Applications
Widely used in scientific research, education, medicine, biotechnology, environment monitoring, food testing, chemical analysis and other fields.
Steps
1. Turn on and start the instrument system.
2. Use the Touchscreen to select the desired function (such as luminosity, Basis Weight, Light spectrum scanning, etc.).
3. Automatic calibration and sample placement.
4. Read data or graphs, save, print, or export them through software.
5. Optional peripheral equipment for expansion operation.
Notice
• Ensure that the instrument is used in a stable environment to avoid vibration and strong light interference.
• Illuminant and Optical inspection parts are inspected regularly to maintain cleanliness.
• Follow the software guidelines during operation to avoid data loss.
• Use original accessories and peripherals to ensure compatibility.
• Pay attention to instrument maintenance to prolong service life.
