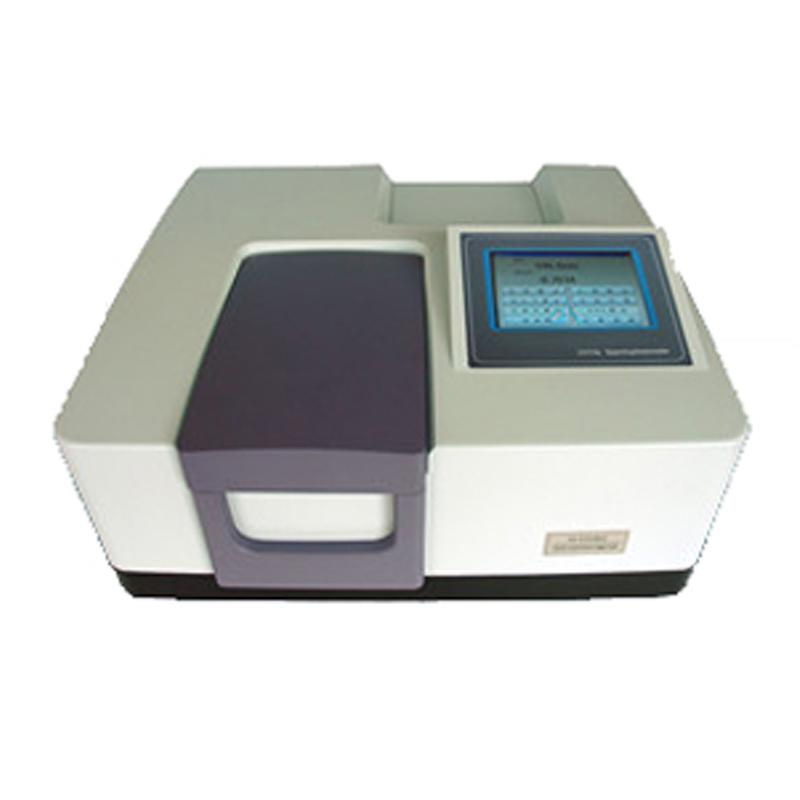

JINGHUA 7600CRT Dual beam of light UV-Visible SpectroPhotometer 1600L/mm blazing grating

Name: JINGHUA 7600CRT Dual beam of light UV-Visible SpectroPhotometer 1600L/mm blazing grating
Brand: jinghua
SKU: NB016047
Price: 5331.0 USD
Availability: InStock

$ 5331.00Ex works

Adopt double beam of light path structure with 1600L/mm blazing grating, stray light ≤ 0.03% T, equipped with color Touchscreen and special software, support map four arithmetic and data export function, with automatic wavelength calibrating mechanism.

Model

7600CRT

Get Quote

Category : Spectrophotometer

Brand : jinghua

SKU : NB016047

Service :The delivery and service By NBCLab.Com

Overview

JINGHUA 7600CRT dual beam of light UV-Visible Spectrophotometer adopts standard dual beam of light optical path structure and 1600L/mm high-performance holographic blazing grating, equipped with imported long-life deuterium lamp/tungsten lamp and photoelectric converter, with high Test accuracy, Stability and low stray light characteristics. The instrument is integrated with a computer and a host, equipped with a color Chinese/English touch display screen and a large-scale integrated circuit to achieve highly intelligent and automated operation.

Features

1. Standard double beam of light path structure with high performance grating, improve Test accuracy, Stability and resolution 2. Imported Long Life Deuterium/Tungsten Lamp and Photoelectric Converter Ensure Illuminant Quality and Long-term Reliability 3. Color Chinese/English touch display and large-scale integrated circuits to achieve intelligent and automated operation 4. Dedicated Software supports data graph processing, saving, printing and exporting functions 5. Automatic calibration wavelength error function guarantees Test accuracy 6. With photometric, Basis Weight, Light spectrum scanning, kinetics/protein, DNA, multi-wavelength, peak and valley detection and other functions 7. USB interface can be connected to computers, printers and other peripheral devices

Principle

The instrument is based on the dual beam of light optical path system, which emits rays of light through the Illuminant (deuterium lamp/tungsten lamp), forms monochromatic light after splitting through the grating. The sample beam of light and the reference beam of light pass through the sample and the reference cell respectively, and the photoelectric converter detects the transmitted light intensity. Absorbance or transmittance of the sample are calculated.

Applications

Wide range of industries

Standards

Not mentioned

Steps

Not mentioned

Notice

Not mentioned

Light spectrum Bandwidth
1nm
Wavelength Range
190nm~1100nm
Wavelength Precision
±0.5nm
Wavelength Repeatability
0.2nm
stray light
≤0.03%T
Noise level
0.0005A
Stability
±0.001A/h
Baseline flatness
±0.001A
Transmittance Precision
≤0.3%T
Transmittance Repeatability
0.1%T
Transmittance Range
0~200%T
Absorption Range
－0.4~4A
Display Range of concentration
0~99999
optical path structure
Standard double beam of light
wavelength drive
automatic
scan function
High School Low
dynamics
have
multi-wavelength
have
DNA/protein
have
display system
Large-screen color Chinese/English touch display
data output
USB RS-232
configuration
Standard computer/printer

[Q] Is the price listed on the website the final cost for overseas purchases?

[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q] What is the specific process for purchasing the product?

[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q] What should I do if the instrument I purchase needs repair?

[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
