Overview

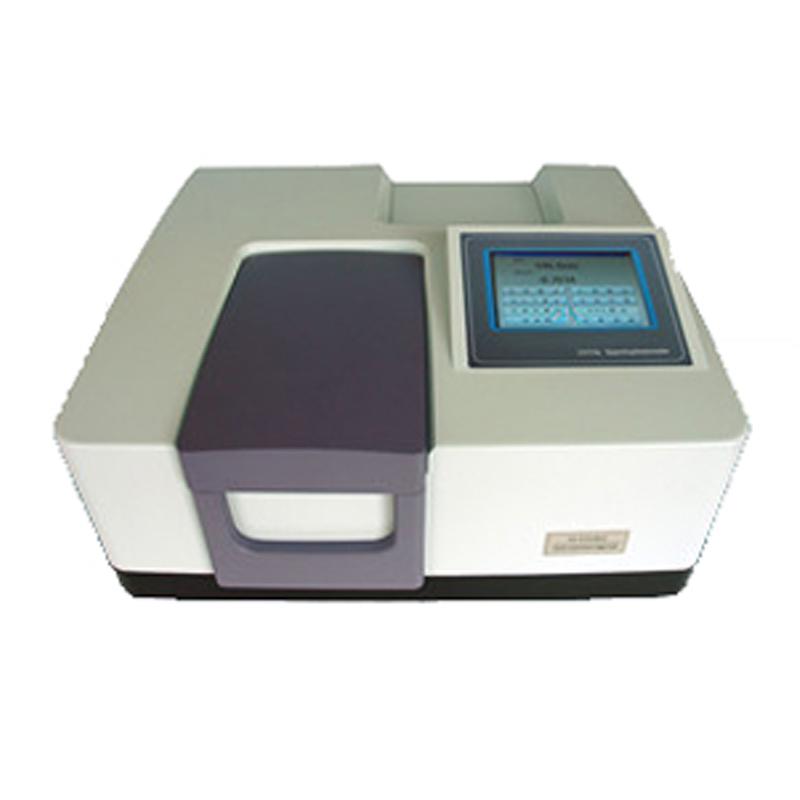

JINGHUA 7600S dual beam of light UV-Visible Spectrophotometer adopts standard dual beam of light optical path structure, equipped with 1600L/mm high-performance holographic blazing grating, Wavelength range 190~ 1100nm, with high Test accuracy, Stability and resolution. The instrument is equipped with imported long-life deuterium lamp/tungsten lamp and photoelectric converter, combined with color Chinese/English touch display screen and special software, to achieve highly intelligent operation and data management.
Features
1. Standard double beam of light path structure with 1600L/mm high performance holographic blazing grating, improve Test accuracy and Stability
2. Imported long-life deuterium lamps/tungsten lamps and photoelectric converters ensure long-term reliable operation of the instrument
3. Color Chinese/English touch display and large-scale integrated circuits to achieve intelligent and automated operation
4. Dedicated Software supports a variety of data and graph processing functions, including four operations, smoothing, derivative operations, etc
5. Automatic calibration wavelength error function to ensure Test accuracy
6. Support photometric, Basis Weight, Light spectrum scanning, kinetics/protein, DNA, multi-wavelength, peak and valley detection and other functions
7. USB output interface can be connected to computers, printers and other peripheral devices
Principle
The instrument adopts double beam of light path structure, splits light through high-performance holographic blazing grating, uses imported deuterium lamp/tungsten lamp as Illuminant, photoelectric converter detects the absorption of light, measurement of transmittance and Absorbance change, and combines special software for Data analysis and map processing.
Applications
Wide range of industry applications
Steps
Step 1 Start the instrument
2. Select the test function by touching the display
3. Place the sample for measurement
4. Use dedicated software to process data and graphs
5. Save, print, or export test results
6. Optional peripherals for extended operation
