Overview

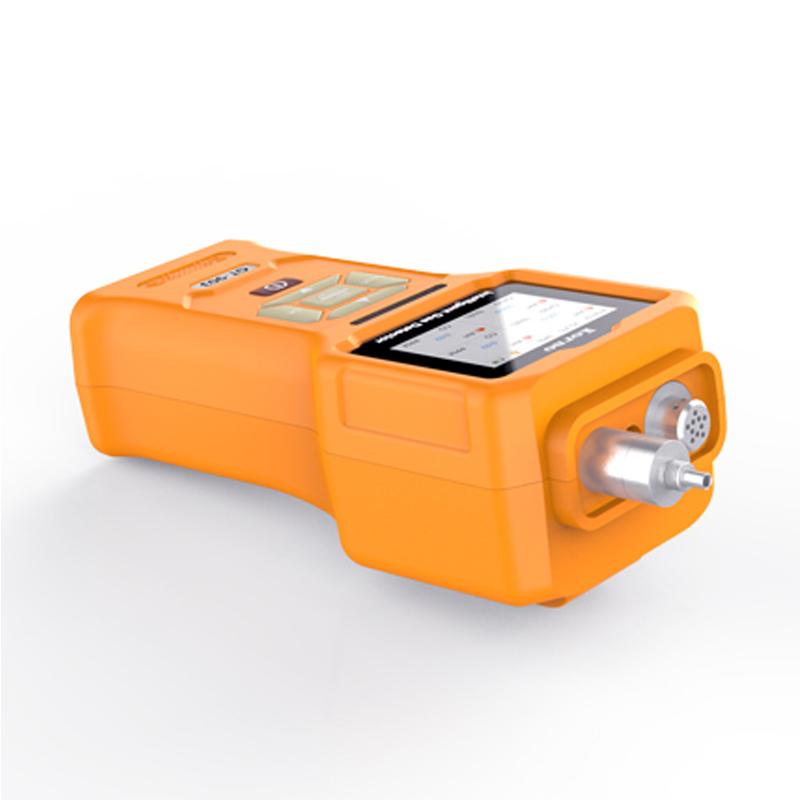

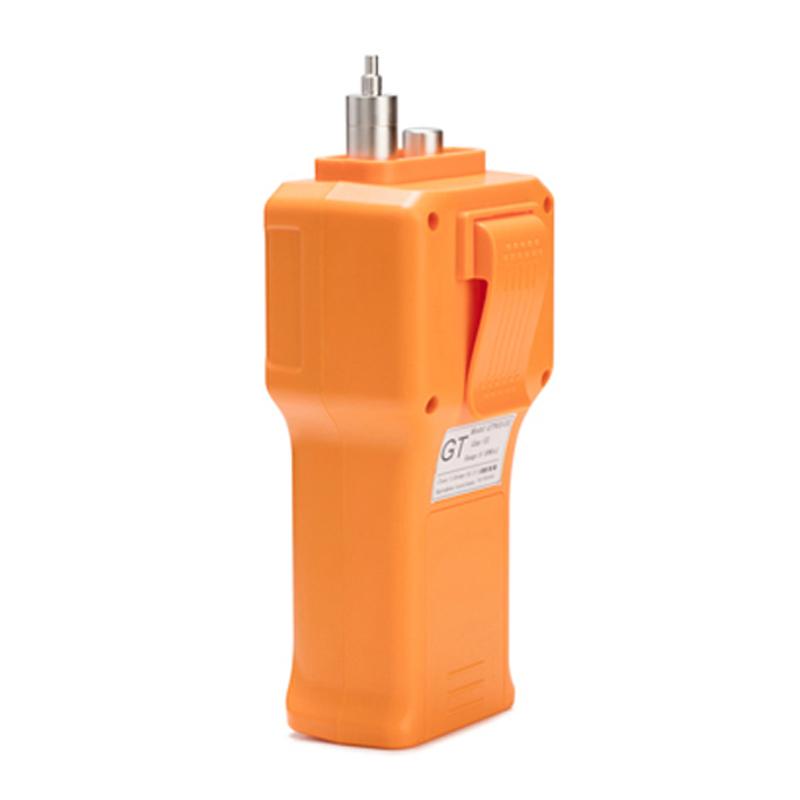

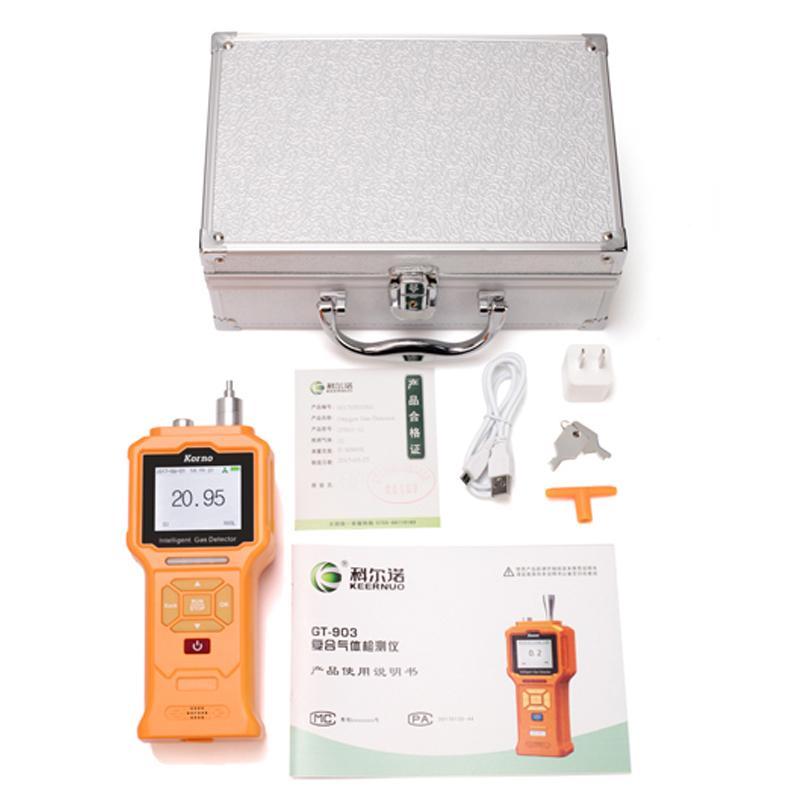

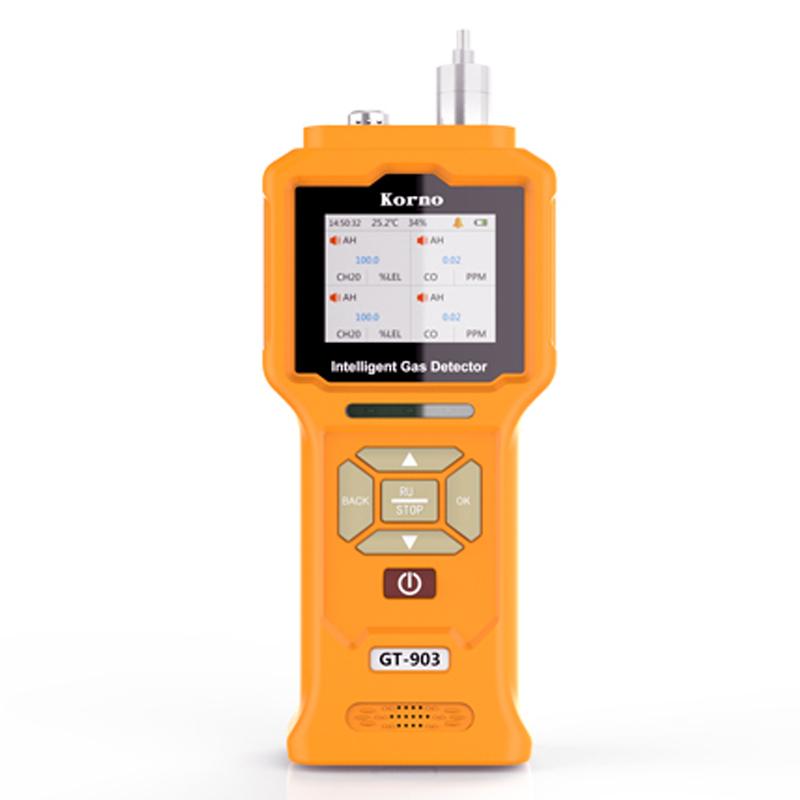

GT-903 Pump Suction Composite Gas detector is a standard three-in-one Gas detector of KORNO brand, suitable for gas concentration detection in various industrial environments and special environments. Using imported electrochemistry/infrared gas Sensor and microcontroller technology, it has the characteristics of fast Response Speed, High Measurement accuracy, Good Stability and Repeatability. The performance of the whole machine ranks at the domestic professional level. Users can customize and set various parameters, and the operation is simple.
Features
1. Imported electrochemistry/infrared gas Sensor and microcontroller technology
2. Fast Response, High Measurement accuracy, Stability and Repeatability
3. Built-in 4000mA large capacity polymer rechargeable battery, long standby
4. Adopt 2.4-inch industrial-grade color screen to display various technical indicators and gas concentration values
5. Historical data can be viewed on the screen, with functions such as storage, data export, temperature and Humidity detection
6. The performance of the whole machine ranks at the domestic professional level, and the user can customize the parameters, and the operation is simple
Principle
GT-903 Gas detector adopts pump-type Sampling method, detects the concentration of CO, H2S, O2 and other gases through imported electrochemistry/infrared gas Sensor, and uses microcontroller technology for data processing and display to realize fast Response and accurate measurement.
Applications
Industrial environment, special environment
Standards
GB3836.1-2010、GB3836.4-2010
Steps
1. Power on the detector
2. Customize the parameters as needed
3. Gas detection using pump suction sampling
4. Check the gas concentration value and various technical indicators on the 2.4-inch industrial-grade color screen
5. View historical data, Data storage and export operations
6. Shut down after use
Notice
• Ambient Temperature: -30~ 60 ℃
• Environmental humidity: 0~ 95% RH non-condensing
• Operating Pressure: -30Kpa~ 200Kpa
• Protection Rating: IP65
Explosion-proof marking: Ex ia ⅱ C T4 Ga
