Overview

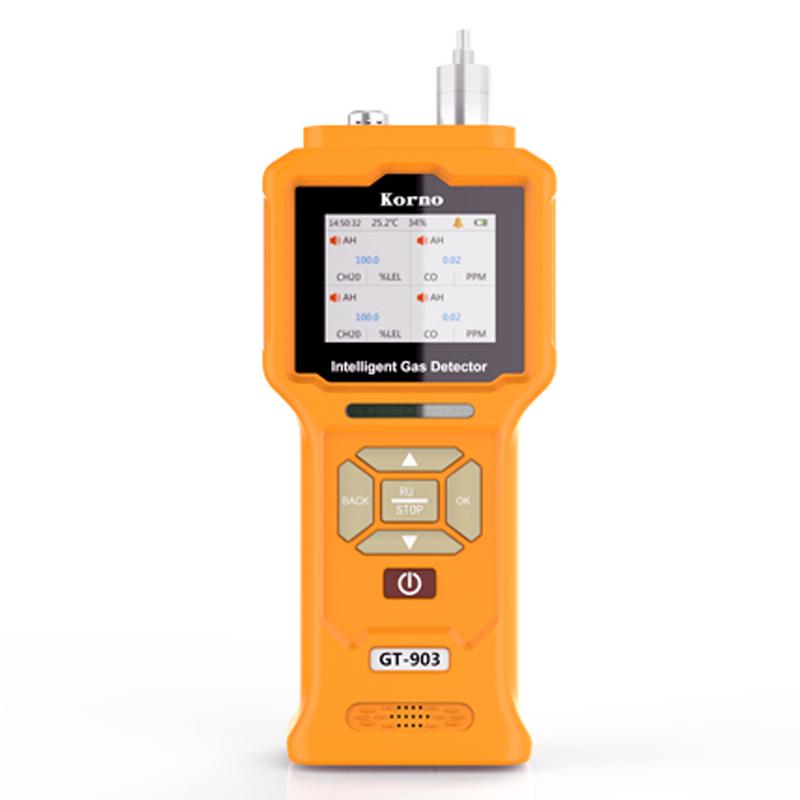

GT-903 Pump Suction Composite Gas detector is a standard 2-in-1 Gas detector of KORNO brand, suitable for gas concentration detection in various industrial environments and special environments. Using imported electrochemistry/infrared gas Sensor and microcontroller technology, it has the characteristics of fast Response Speed, High Measurement accuracy, Good Stability and Repeatability, etc. The performance of the whole machine is at the domestic professional level, with a built-in 4000mA large-capacity polymer rechargeable battery, and a 2.4-inch industrial-grade color screen to display various technical indicators and gas concentration values.
Features
1. Imported electrochemistry/infrared gas Sensor and microcontroller technology
2. Fast Response, High Measurement accuracy, Stability and Repeatability
3. Built-in 4000mA large capacity polymer rechargeable battery, long standby
4.2.4-Inch industrial-grade color screen display, you can view historical data
5. With Storage, Data Export, Temperature and Humidity Detection
6. Each parameter can be customized by the user, and the operation is simple
Principle
Sampling method with pump suction, H2S and EX gas concentrations are detected by imported electrochemistry/infrared gas Sensor, and data processing and display are carried out with microcontroller technology to achieve fast and accurate gas concentration detection.
Applications
Various industrial environments, special environments
Standards
GB3836.1-2010、GB3836.4-2010
Steps
1. Power on the detector
2. Customize the parameters as needed
3. Carry out gas concentration detection
4. View real-time or historical data on the screen
5. Data storage and export operations
Notice
• Working ambient temperature range is -30~ 60 ℃
• Environmental humidity range is 0~ 95% RH without condensation
• Operating Pressure Range -30Kpa~ 200Kpa
• Explosion-proof logo is Ex ia ⅱ C T4 Ga
• Protection Rating IP65
