$ 576.00Ex works
Equipped with 2.4-inch high definition color screen, supports 1-6 Sensor expansion, with 4-20mA and RS485 output, Response Time ≤ 20 seconds, Protection Rating IP65, suitable for harsh industrial environments.
Category : VOC Gas Detector
Brand : KORNO
SKU : NB016089
Service :The delivery and service By NBCLab.Com

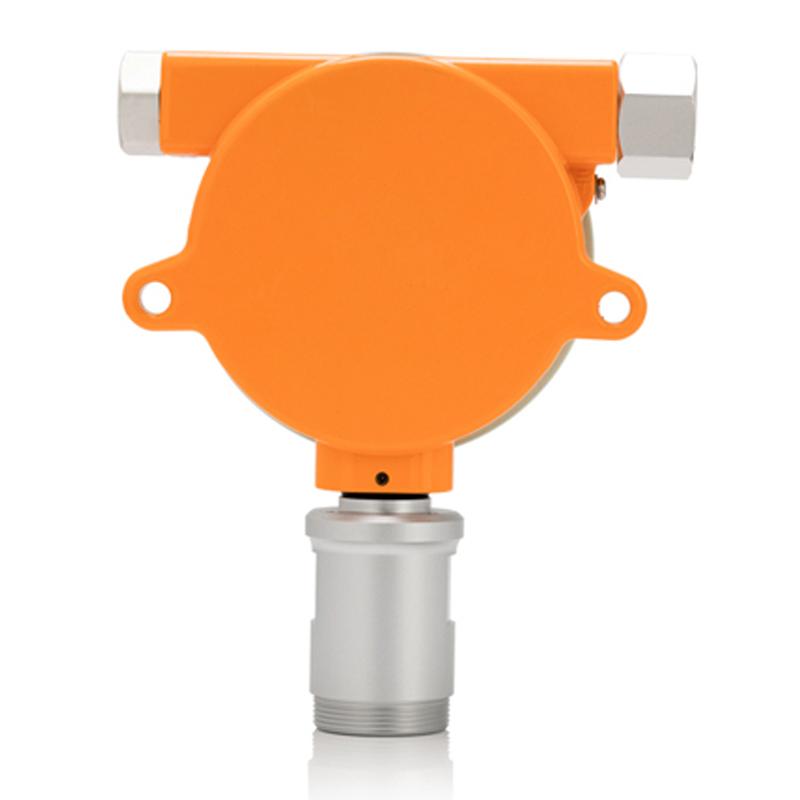

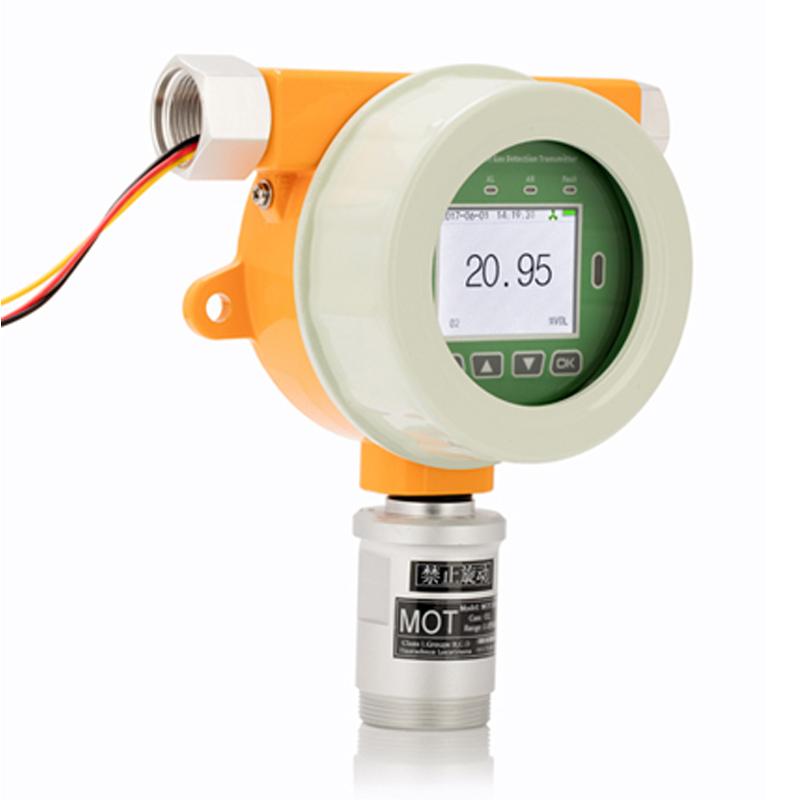

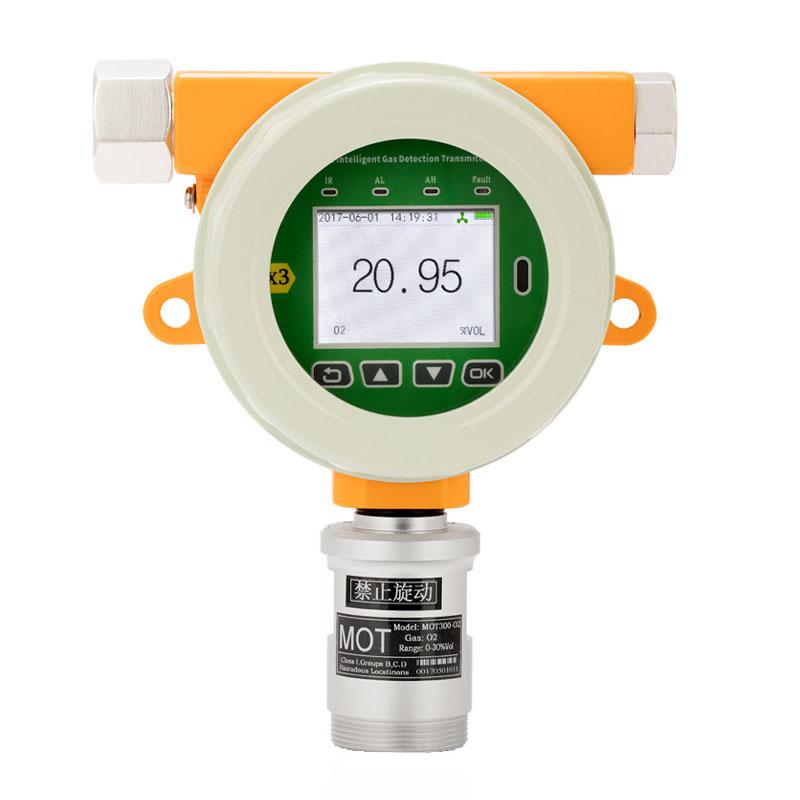

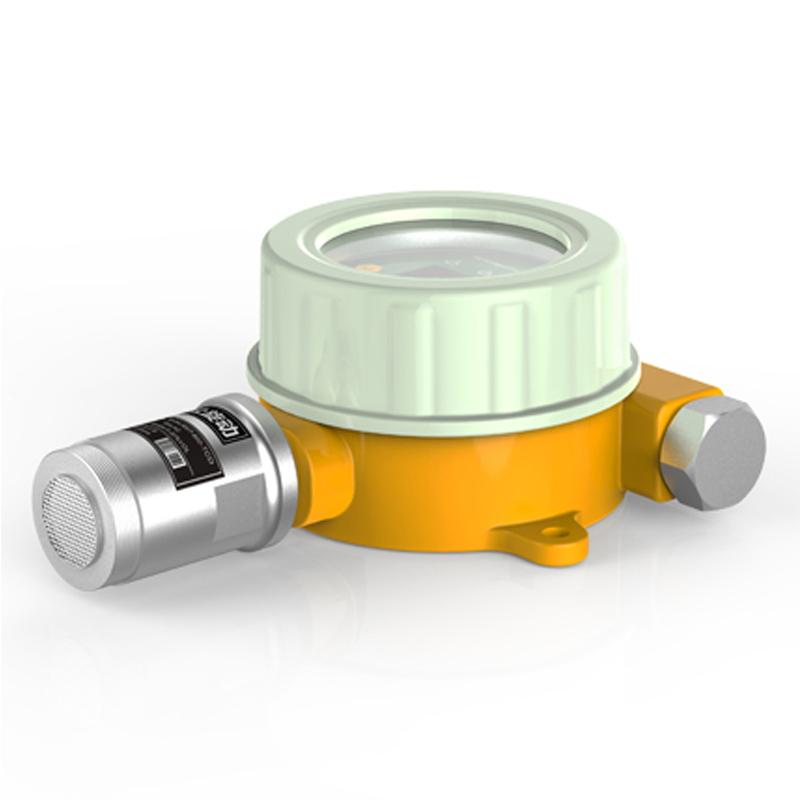

MOT500-VOC-Y is an online intelligent organic solvent volatile gas and alcohol detector produced by KORNO brand, using 2.4 inch IPS color screen display. The instrument is based on large-scale integrated circuit technology and international standard intelligent design, with high Stability, communication and self-diagnosis functions, easy installation and maintenance, to meet the requirements of high Reliability of industrial safety monitoring. Widely used in petroleum, chemical, metallurgy, refining, gas transmission and distribution, biochemical and other industries, compatible with various control alarms, PLC, DCS and other Control systems, support remote detection, control, alarm and Data storage analysis.
32-Bit microprocessor and 24-bit ADC data collection chip, ultra-low power consumption. 2. Equipped with 2.4 inch IPS industrial high definition screen, resolution 320x240. 3. Supports 1-6 Sensor configurations (all-in-one composite gas does not support 4-20mA output). 4. Free switching of PPM and mg/m ³ concentration units. 5. Standard multiple signal outputs: 4-20mA output (single Sensor), RS485 output (MODBUS RTU protocol), relay output (2 groups of passive). 6. Optional transmission methods: cable, network cable, 433MHz wireless, GPRS wireless. 7. Sensor supports 6-level target point calibrating to ensure accuracy and linearity. 8. With manual zero and target point calibrating, factory reset and analog output Adjustment. 9. Wide voltage input, short circuit protection, reverse connection protection, anti-static and magnetic field interference, automatic recovery function. 10. Compatible with PLC, DCS, control alarms and other remote devices. 11. Shell hard oxidation, explosion-proof and anti-corrosion, adapt to harsh environment. 12. Optional Temperature & Moisture Sensor, on-site sound and light alarm and other accessories.
The detector adopts diffusion, flow or pump-suction Sampling method. Sensor detects gas concentration and converts the signal into digital and Analog Output. The instrument processes data based on large-scale integrated circuits and intelligent technology, supports multiple Communication protocols and remote control, and realizes real-time monitoring and alarm functions.
Petroleum, chemical industry, metallurgy, refining, gas transmission and distribution, biochemical
GB3836.1-2010 "Explosive environments - Part 1: Equipment - General requirements", GB3836.2-2010 "Explosive environments - Part 2: Equipment protected by flameproof enclosures" d "
1. Installation instrument: Select Wall-Mounted, Pipeline or Flow Installation method to connect the power supply and signal line. 2. Configure Sensors: Set 1-6 Sensors according to requirements, and calibrate the zero point and the target point. 3. Select output mode: Set 4-20mA, RS485, or relay output. 4. Connection transmission method: use cable, network cable, wireless or GPRS to transmit data. 5. Set the alarm: configure the high and low alarm or interval control mode, and connect the receiving device. 6. Monitoring data: View concentration and status in real time through the screen or remote device.
Gas detector does not support 4-20mA output. • Make sure the electrical interface is connected correctly during installation to prevent reverse connection or short circuit. • When used in harsh environments, pay attention to Protection Ratings and explosion-proof requirements. • Sensor calibrated regularly to ensure measurement accuracy. When using wireless transmission, pay attention to distance and signal interference. The alarm settings need to be adjusted according to the actual application to avoid false alarms.
[A] No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
[A] First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
[A] After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
