Overview

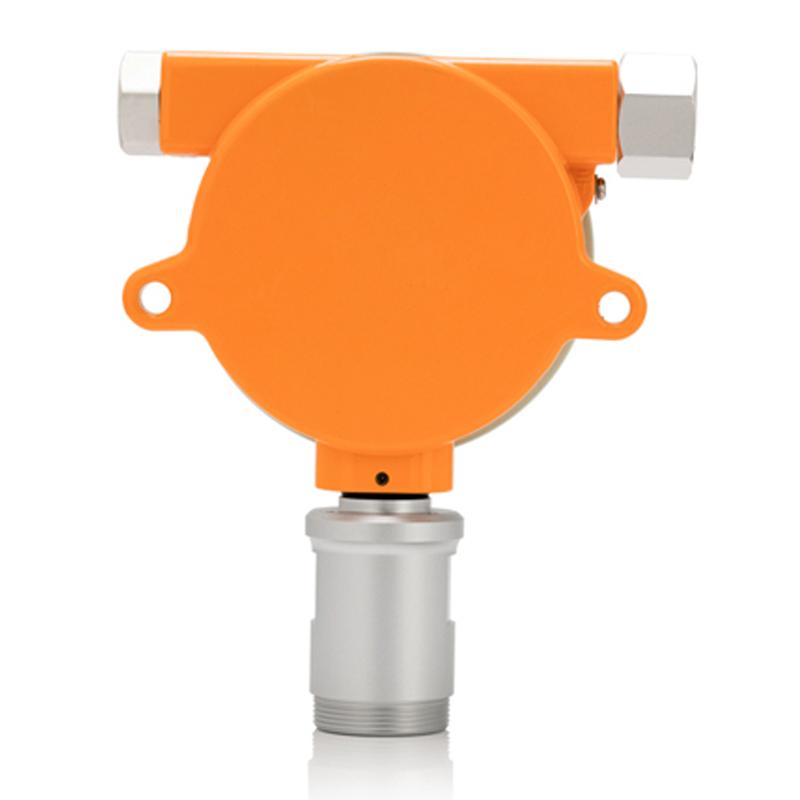

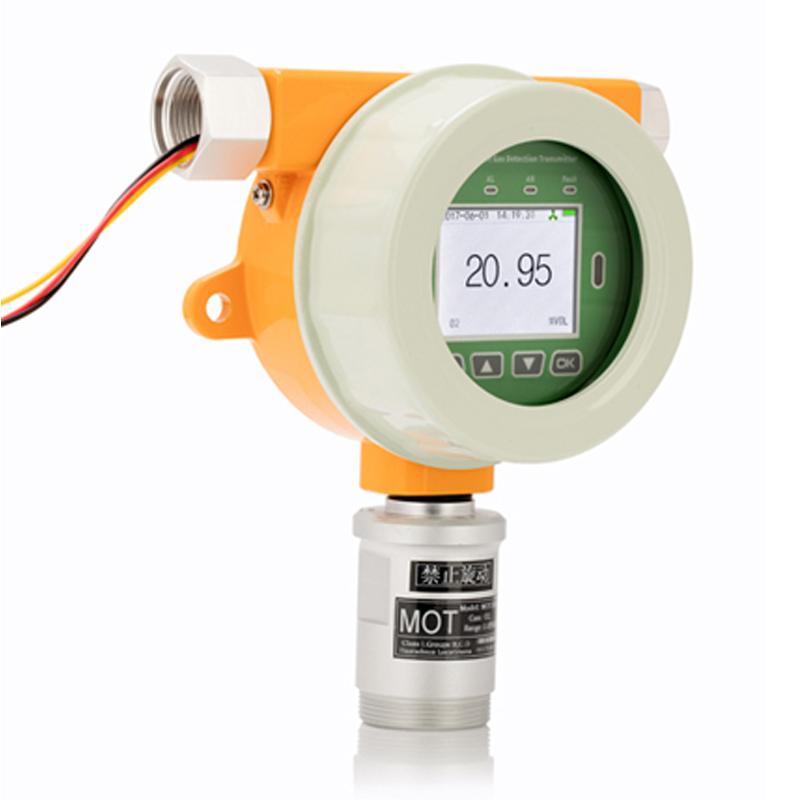

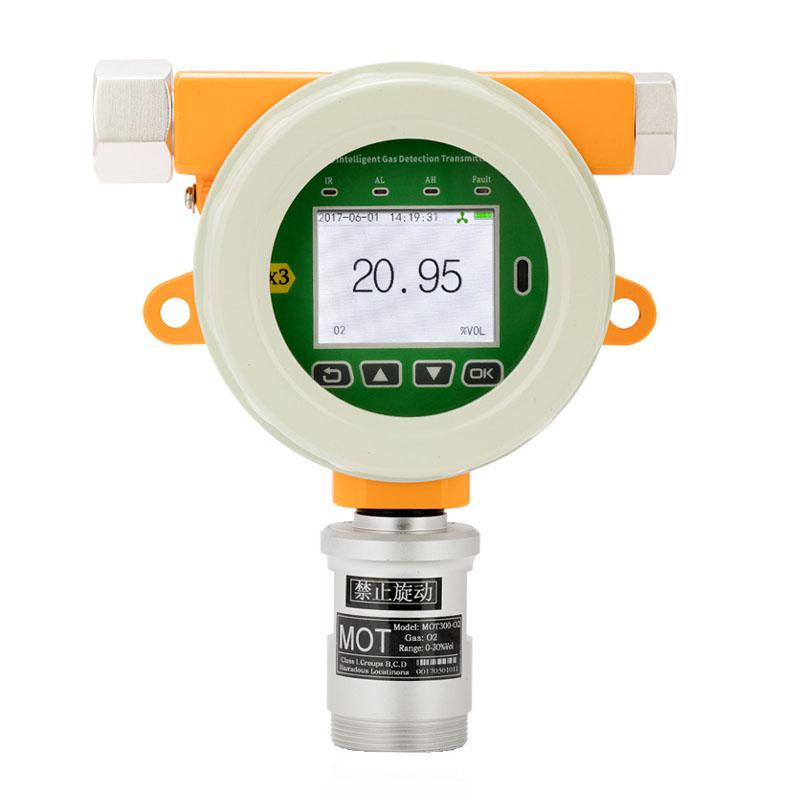

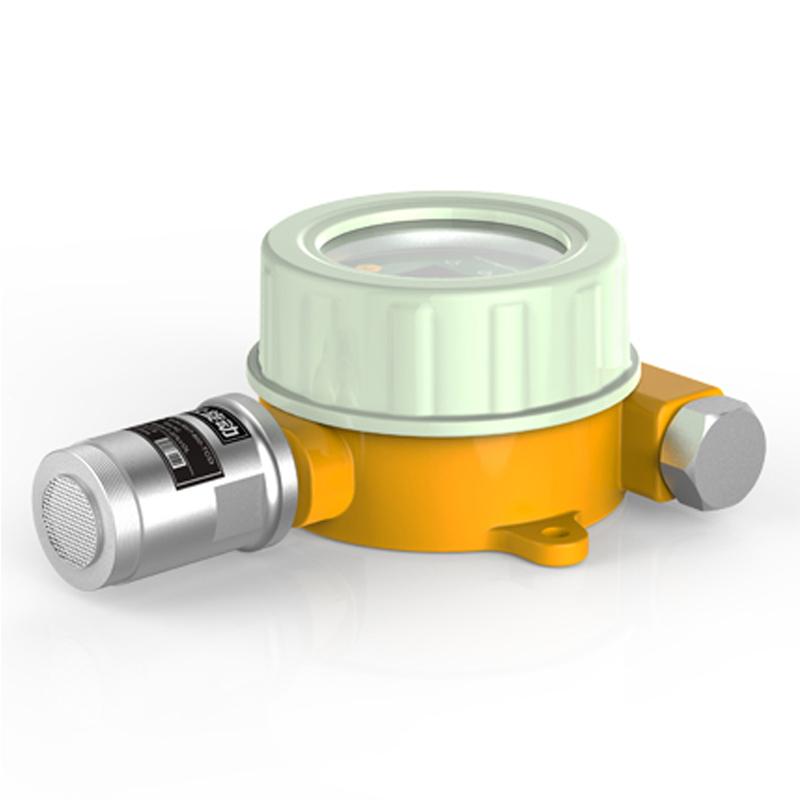

MOT500-CO2-Y (IR 2%) is an online intelligent carbon dioxide detector with 2.4 inch IPS color screen display. It adopts large-scale integrated circuit technology and international standard intelligent design. It has high Stability, communication and self-diagnosis functions, and is easy to install and maintain. The instrument is widely used in petroleum, chemical, metallurgical and other industries. It is compatible with various control alarms, PLC, DCS and other Control systems to realize remote detection, control, alarm and Data analysis.
Features
32-Bit microprocessor and 24-bit ADC data collection chip, ultra-low power consumption.
2. Equipped with 2.4 inch IPS industrial high definition screen, resolution 320x240.
3. Supports 1-6 Sensors (all-in-one composite gas does not support 4-20mA output).
4. PPM and mg/m3 concentration units can be switched freely.
5. Standard multiple signal output modes: 4-20mA output, RS485 output, relay output.
6. Signal transmission methods are available: cable, network cable, 433MHz wireless, GPRS wireless.
7. Sensor supports 6-level target point calibrating to ensure accuracy and linearity.
8. With manual zero and target point calibrating, factory reset and analog output Adjustment.
9. Wide voltage input, short circuit protection, reverse connection protection, anti-static interference, anti-magnetic field interference and other functions.
10. Compatible with PLC, DCS, control alarm and other remote control equipment.
11. Shell hard oxidation, explosion-proof and anti-corrosion, adapt to harsh environment.
12. Optional Temperature & Moisture Sensor, on-site sound and light alarm, etc.
Principle
The detector uses infrared detection technology to detect carbon dioxide gas through Sensor, combined with large-scale integrated circuits and intelligent design to achieve High Accuracy data collection and processing. The instrument supports diffusion, flow, and pump-suction Sampling methods to ensure stable monitoring of gas concentration in various environments.
Applications
Petroleum, chemical industry, metallurgy, refining, gas transmission and distribution, biochemical
Standards
GB3836.1-2010, GB3836.2-2010, CNEx16.0547, Guangdong 00001052 (CMC metrology authentication)
Notice
• Ensure that the working Ambient Temperature is in the range of -30~ 50 ℃, Humidity 0~ 95% RH without condensation.
• Avoid reverse connection of power supply, the instrument has reverse connection protection function.
• In the all-in-one composite gas configuration, 4-20mA output is not supported.
• Sensor calibrated regularly to ensure measurement accuracy.
• Protection Rating IP65 during installation to prevent dust and water from entering.
• When using Optional accessories, Temperature & Moisture Sensor or Alarm should be configured according to actual needs.
