Overview

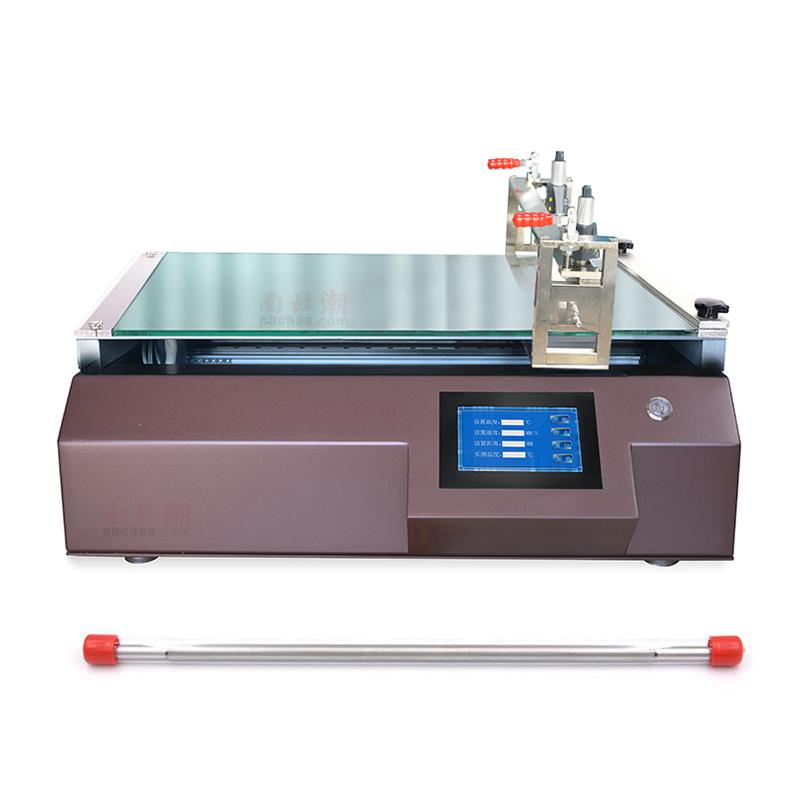

TBJ-B2-DJ15 Small Film Applicator is a customized laboratory Film Applicator with a coating format of 800 * 1000mm, using two coating methods of bar and drawdown blade, and Benchtop structure design. Suitable for Moulding in Coatings, inks, Polymer Materials, Films, Glues, Pressure sensitive adhesives and other industries.
Features
1. Two coating methods of bar and drawdown blade
2. Blade Coating accuracy +/- 0.05mm, meyer rod coating accuracy +/- 0.05mm
3. Blade Coating thickness range 0~ 10mm, meyer rod coating thickness range 1~ 517.5μm
4. The coating speed is 5~ 200mm/s, and the speed regulation accuracy is 1mm/s.
5. Infinitely variable speed control
6. The coating table is made of aluminum alloy
7. Customizable functions such as automatic feeding, jet system device, UV solid content device, etc
Principle
The Film Applicator uniformly coats the material on the Spreader stage by two coating methods: bar and drawdown blade. The infinitely variable speed is used to control the coating speed, and the film preparation of different thicknesses is realized by precise adjustment.
Applications
Coatings, inks, polymer materials, films, glues, Pressure sensitive adhesives
Steps
1. Spreader materials
2. Select Bar or Blade Coating Method
3. Set Spreader Thickness Parameters
4. Adjust coating speed
5. Start the equipment for film operation
6. Clean up equipment after filming
