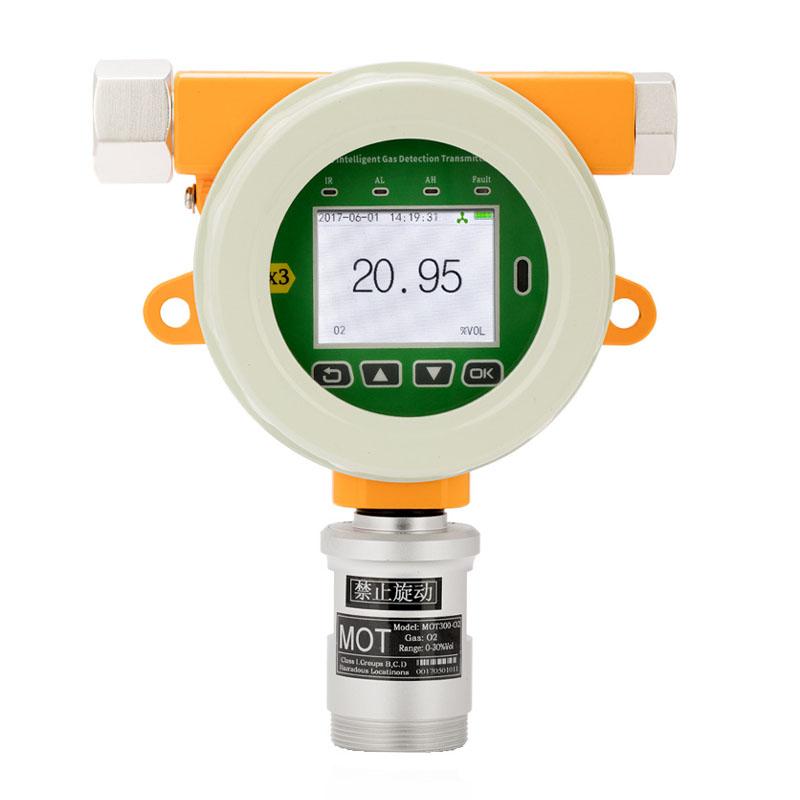

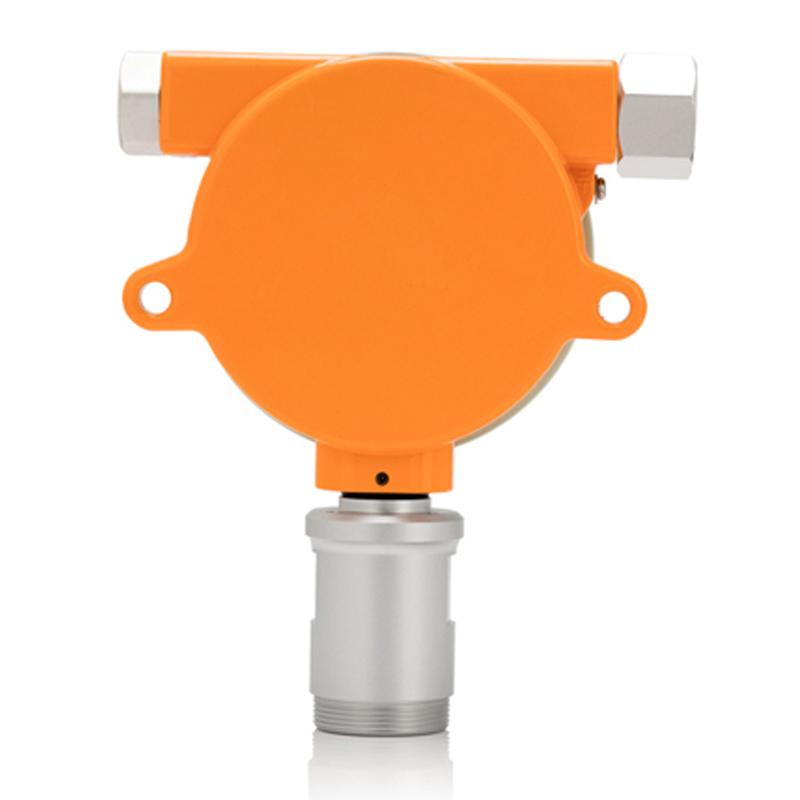

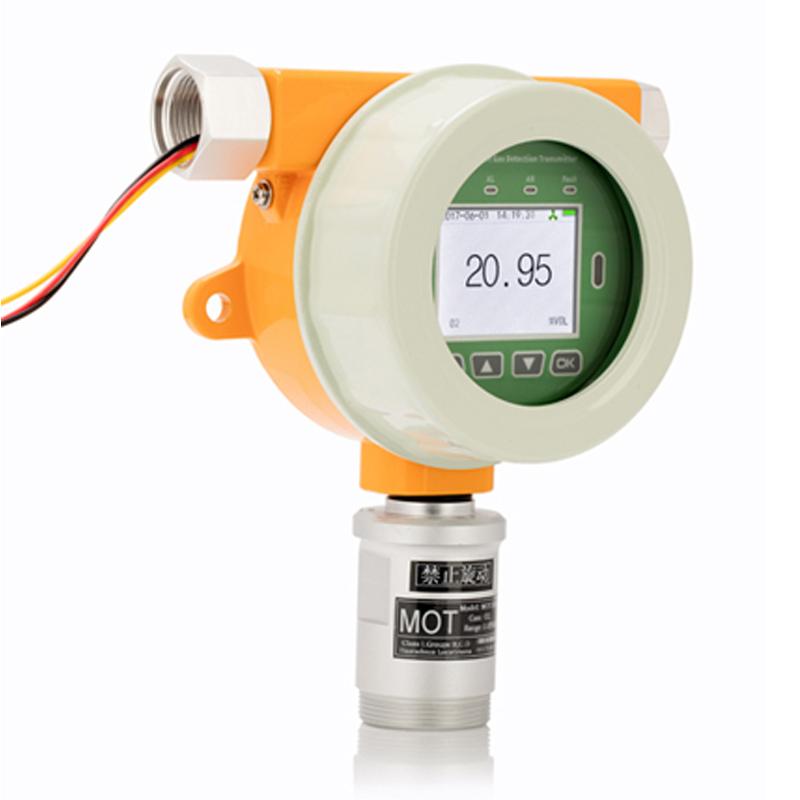

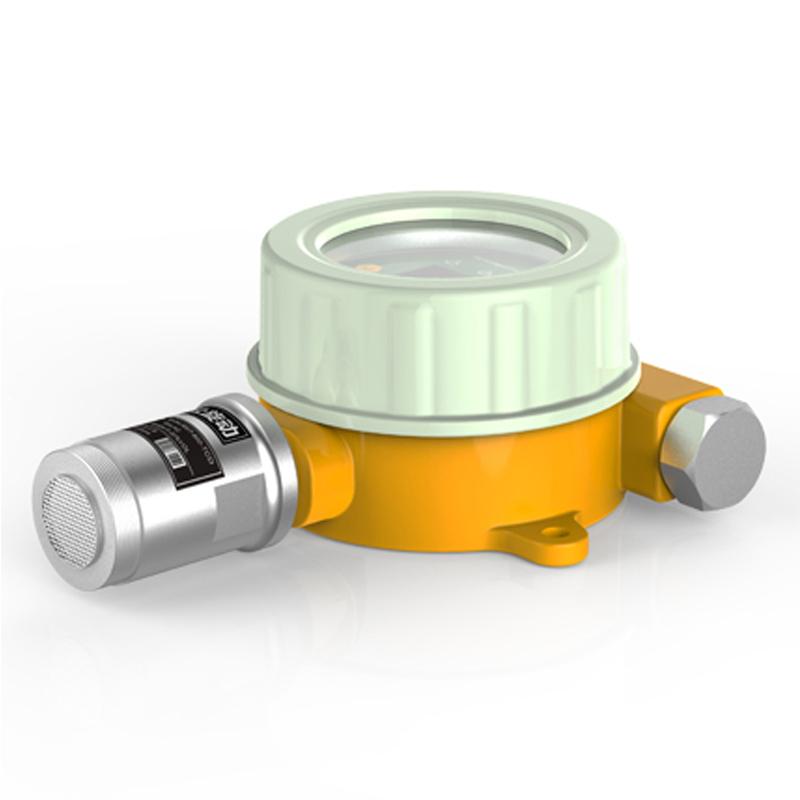

KORNO MOT500-TVOC-Y TVOC Detector PID Sensor Multi-signal output

Name: KORNO MOT500-TVOC-Y TVOC Detector PID Sensor Multi-signal output
Brand: KORNO
SKU: NB016109
Price: 1795.0 USD
Availability: InStock

$ 1795.00Ex works

Using PID Sensor technology, range 0~ 500ppm, resolution 0.1ppm, support 1-6 Sensor expansion, with a variety of signal output modes, including 4-20mA, RS485 and relay output, Protection Rating IP65, suitable for harsh environments.

Model

MOT500-TVOC-Y（PID）

Get Quote

Category : VOC Gas Detector

Brand : KORNO

SKU : NB016109

Service :The delivery and service By NBCLab.Com

Overview

MOT500-TVOC-Y (PID) is an on-line intelligent TVOC detector with 2.4-inch IPS color screen display, using large-scale integrated circuit technology and international standard intelligent design, with high Stability, communication and self-diagnosis functions. The instrument is widely used in petroleum, chemical, metallurgical and other industries, compatible with various Control systems, support remote detection, control and alarm.

Features

32-Bit microprocessor and 24-bit ADC chip 2.Equipped with 2.4 inch IPS high definition color screen, resolution 320x240 3. Support 1-6 Sensor configurations (all-in-one composite gas does not support 4-20mA output) 4. Free switching between PPM and mg/m ³ units 5. Standard 4-20mA, RS485, relay and other signal output 6. Support cable, network cable, 433Mhz wireless, GPRS and other transmission methods 7. 6-level calibrating, Manual calibration and auto-recovery 8. Wide voltage input, explosion-proof and corrosion-proof design 9. Optional Temperature Humidity Sensor and Acoustic and Optical Alarm

Principle

The instrument uses PID (Photoionization detector, PID) technology to detect TVOC gas concentration by diffusion, flow or pump-suction Sampling method. The built-in intelligent Sensor converts the gas concentration into an electrical signal, which is processed by a microprocessor and displayed on the display screen, and transmits data through various output interfaces.

Applications

Petroleum, chemical industry, metallurgy, refining, gas transmission and distribution, biochemical

Standards

GB3836.1-2010, GB3836.2-2010, Guangdong 00001052 (CMC metrology authentication)

Steps

1. Installation instrument: Select Wall-Mounted, Pipeline or Flow Installation method 2. Connect power supply: connect 12~ 30VDC Power Supply 3. Signal configuration: Select 4-20mA, RS485 or relay output mode 4. Sensor calibrating: perform manual zero and target point calibrating 5. Alarm settings: configure high and low alarm or interval control mode 6. Data transmission: Connect the receiving device via cable, wireless, or network

Notice

• All-in-One Composite Gas Sensor does not support 4-20mA output • Pay attention to explosion-proof and Protection Rating requirements when installing • Avoid Use in Extreme Humidity Conditions Sensor calibrated regularly to ensure accuracy • The reverse connection of the power supply may cause damage to the device • Wireless range affected by Power and environmental factors

Type
fixed
Detect gas
Volatile organic gases (TVOC)
Measurement Range
0-500ppm
resolution
0.1ppm
Response Time
≤ 20 seconds (T90)
recovery time
≤ 20 seconds
Linearity
≤±1%
detection accuracy
≤ +/- 3% (depending on the Sensor)
Repeatability
≤±1%
Zero drift
≤ +/- 1% (F. S/year)
gas expansion
Supports 1-6 Sensors (Optional)
optional Range
0-2、10、50、100、200、500、1000、2000、5000、6000、10000ppm
Detection method
Diffusion, flow, pump suction optional
Installation method
Wall-Mounted, Pipeline Type (Thread Size: M40X1.5mm), Flow Type
Power Supply
24VDC（12~30VDC）
Operating temperature
-30~ 50℃ (Humidity environment requires customization or optional pretreatment system)
Operating humidity
≤ 95% RH, non-condensing
Operating Pressure
0 ~ 100Kpa
Protection Rating
IP65
Explosion-proof certification
CNEx16.0547
production license
Guangdong 00001052 (CMC metrology authentication)
execution standard
GB3836.1-2010 "Explosive environment - Part 1: Equipment - General requirements" GB3836.2-2010 "Explosive environment - Part 2: By flameproof enclosure
Size
200*149*79mm(L*W*H）
weight
1.5Kg
shell material
Die casting aluminum + sand blasting oxidation/fluorocarbon paint, explosion-proof and anti-corrosion
Humidity
Optional accessories, temperature detection Range: -25~ 60℃, Humidity detection Range: 0~ 95% RH
signal output
① 4-20mA signal: standard 16-bit accuracy 4-20mA output chip, transmission distance 1Km ② RS485 signal: using standard MODBUS RTU protocol, transmission distance 2Km ③ Voltage signal: 0-5V, 0-10V output, can be set by yourself ④ Optional 4-20mA + Hart output ⑤ Switching signal: standard 2 sets of relays, optional third set of relays, passive touch point, capacity 220VAC 3A/24VDC 3A
transmission method
① Cable transmission: 3-core, 4-core cable, long-distance transmission (1-2 kilometers) ② TCP/IP transmission: support TCP/IP protocol, use optical fiber, network cable, long-distance real-time transmission through intranet, extranet (optional) ③ GPRS transmission: can be built-in GPRS module, real-time remote transmission of data, without distance restrictions (optional) ④ Wireless transmission: support 433Mhz, radio transmission mode, transmission distance 2-10Km, depending on different Power (optional)
receiving device
User computer, control alarm, PLC, DCS, mobile phone, tablet computer, etc. are optional
Alarm mode
On-site sound and light alarm, external alarm, remote controller alarm, computer data collection software alarm, mobile app notification, SMS alarm optional
Alarm settings
① Standard configuration two-level alarm, optional three-level alarm ② Gas Sensor can set two alarm modes of conventional high and low alarm and interval control, which can control the concentration Range of gas ③ Temperature sensor can set the control Range ④ Humidity Sensor can set the control Range
