Overview

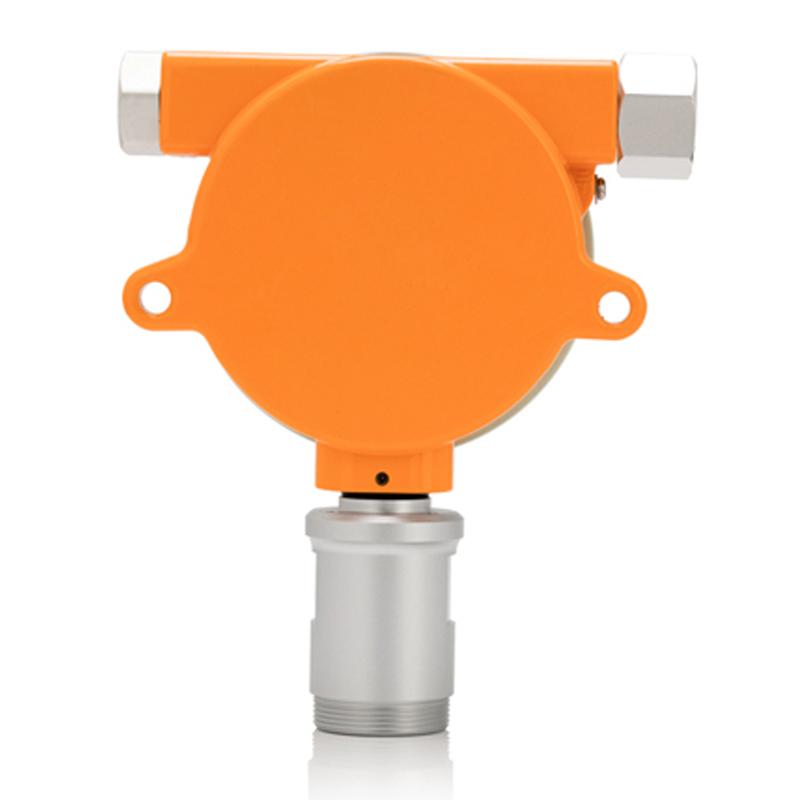

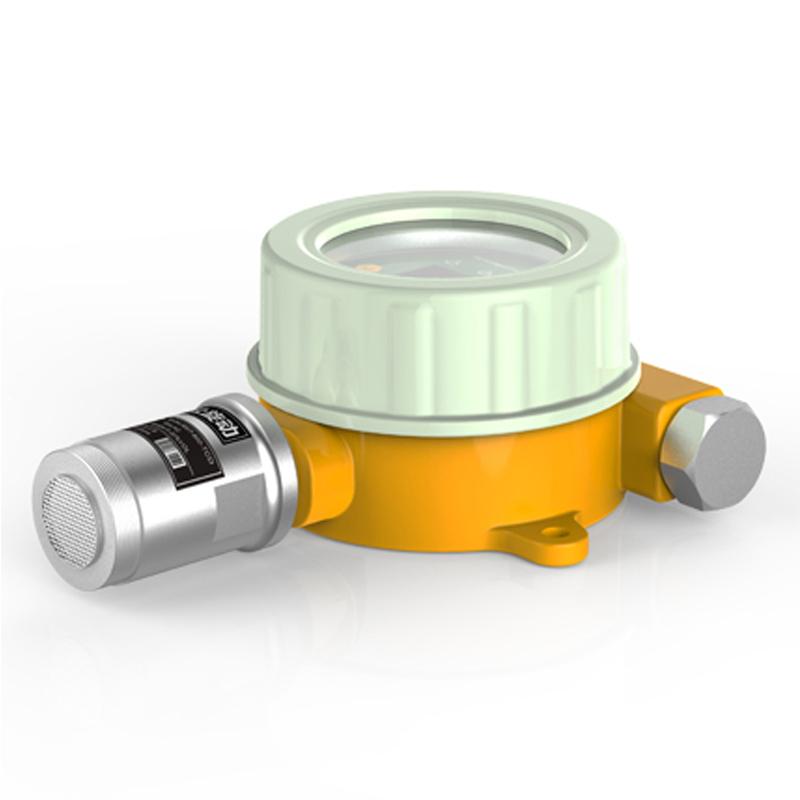

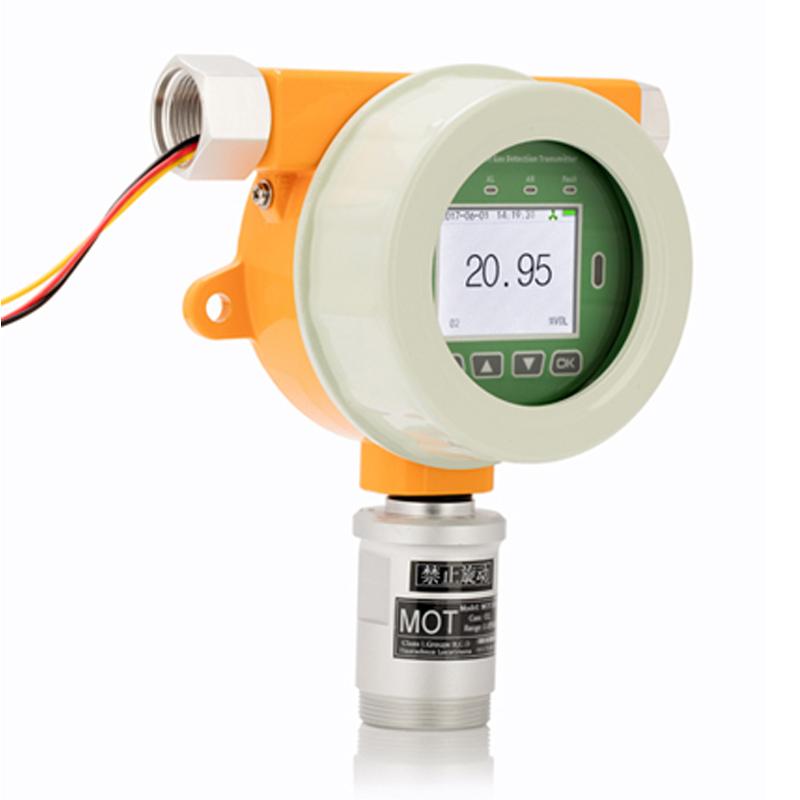

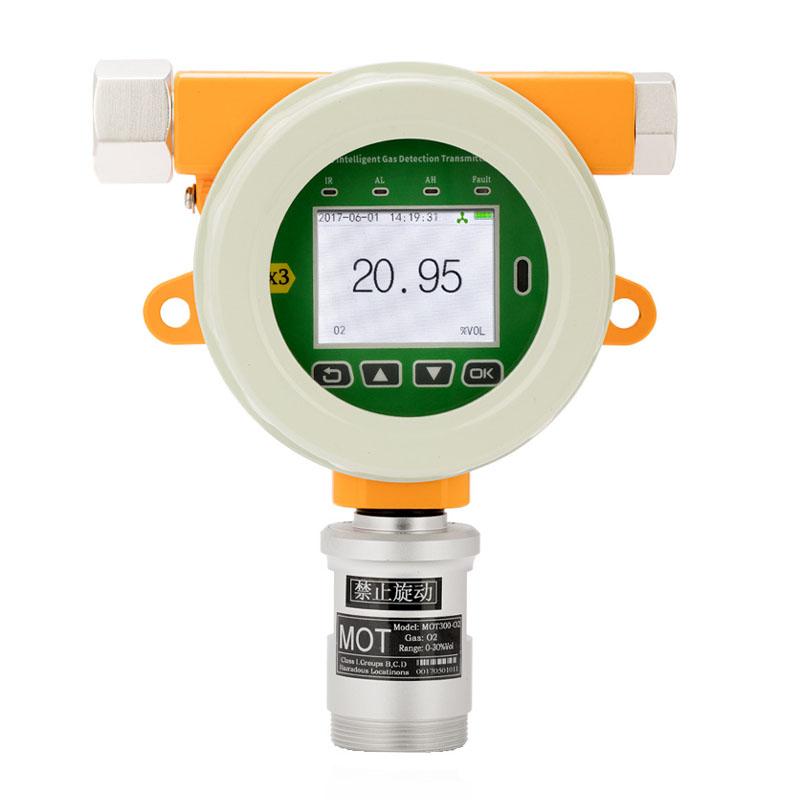

MOT500-SO2-Y is an on-line intelligent sulfur dioxide detector with 2.4 inch IPS color screen display. It is designed with large-scale integrated circuit technology and international standard intelligent technology. Stability of the gas transmitter is high, it has communication and self-diagnosis functions, easy installation and maintenance, and meets the requirements of high Reliability of equipment for industrial site safety monitoring. Widely used in petroleum, chemical industry, metallurgy, refining, gas transmission and distribution, biochemical and other industries, compatible with various control alarms, PLC, DCS and other Control systems, can realize remote detection, control, alarm and Data storage analysis functions.
Features
32-Bit microprocessor and 24-bit ADC data collection chip
2.Equipped with 2.4 inch IPS industrial high definition screen, resolution 320x240
3. Support 1-6 Sensor configurations (all-in-one composite gas does not support 4-20mA output)
4. PPM, mg/m ³ two concentration units can be freely switched
5. Standard multiple signal output modes: 4-20mA output, RS485 output, relay output
6. Signal transmission methods: cable, network cable, 433MHz wireless transmission, GPRS wireless transmission
7. 6-level target point Adjustment to ensure measurement accuracy and linearity
8. With wide voltage input, short circuit protection, reverse connection protection, anti-static interference, anti-magnetic field interference and other functions
9. Shell hard oxidation, explosion-proof and anti-corrosion, can be used for a long time in harsh environments
10. Optional Temperature & Moisture Sensor, on-site sound and light alarm and other accessories
Principle
The sulfur dioxide detector adopts diffusion, flow or pump-suction Sampling method to detect sulfur dioxide gas concentration in the environment through Sensor. The instrument converts the detected gas concentration signal into an electrical signal, which is processed by a 32-bit microprocessor and a 24-bit ADC data collection chip. After processing, it is transmitted to the receiving device through various signal output methods such as 4-20mA, RS485 or relay, so as to realize real-time monitoring and alarm function of gas concentration.
Applications
Petroleum, chemical industry, metallurgy, refining, gas transmission and distribution, biochemical
Standards
GB3836.1-2010, GB3836.2-2010, Guangdong 00001052 (CMC metrology authentication)
Steps
1. Select the appropriate Installation method (Wall-Mounted, Pipeline, Flow Type) for installation
2. Connect power supply (24VDC) and signal output line
3. Sampling method (diffusion type, flow type, pump type)
4. Sensor calibrating, including manual zero and target point calibrating
5. Set concentration units (PPM or mg/m ³) and alarm parameters
6. Connect receiving devices (computers, PLCs, DCS, etc.) and configure communication parameters
7. Start the instrument for normal monitoring work
