TQC sheen VF2252 sagging resistance Tester 90mm application width 25μm Graduation

Name: TQC sheen VF2252 sagging resistance Tester 90mm application width 25μm Graduation
Brand: TQC sheen
SKU: NB016217
Price: 1693.0 USD
Availability: InStock

$ 1693.00Ex works

The 90mm total film width is divided into 10 equal gaps, the depth is increased by 25μm, and the removable guide plate is equipped to ensure direct stretching on the Glass or thick test panel, which meets the requirements of ASTM standards.

Model

Get Quote

Category : Sag Tester

Brand : TQC sheen

SKU : NB016217

Service :The delivery and service By NBCLab.Com

Overview

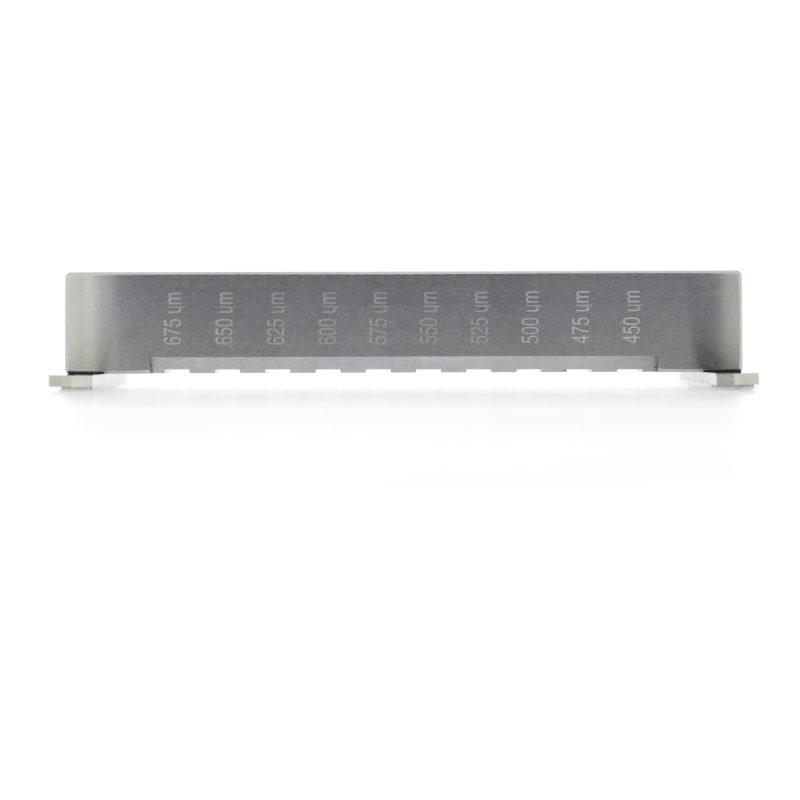

The TQC sag resistance tester VF2252 is designed to evaluate the sag resistance of coatings. The instrument has a total film width of 90mm, divided equally into 10 gaps, each with a depth of 25μm and a spacing of 1.5mm. The film thickness ranges from 450 to 675μm.

Features

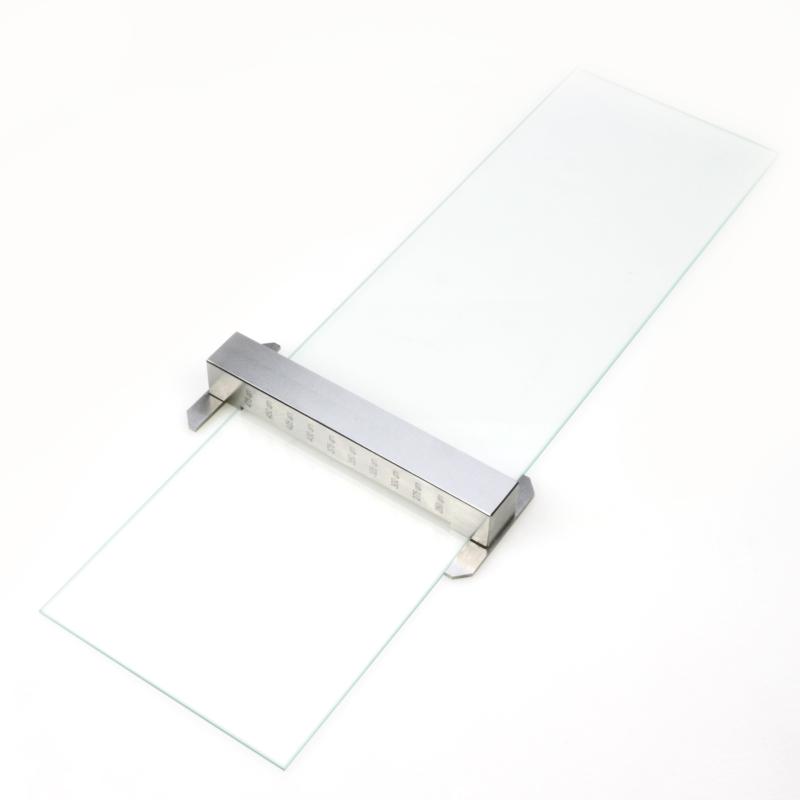

1. Removable guide plate design to ensure direct stretching on Glass panel or thicker test panel. 2. The film width is 90mm and divided into 10 gaps, the depth is increased by 25μm, and the spacing is 1.5mm. 3. The coating method is the same as that of the standard rod applicator, and the test plate can be lifted and turned 90 degrees for placement.

Principle

The coating is applied the same as the standard bar applicator, then the test plate is lifted and turned to 90 degrees from the horizontal plane, with the thickest coating at the bottom of the sample. The sagging index is determined by the first track, which does not show signs of sagging in the next track.

Standards

ASTM D4400、ASTM D1084

Steps

1. Use the instrument coating in the same way as the standard stick applicator. 2. Lift the test plate and turn it 90 degrees so that the thickest coating is at the bottom. 3. Observe and determine that there is no sign of sagging in the first orbit, and calculate the sagging index.

Notice

• Ensure that the thickest coating is at the bottom when the test board is turned. When using the guide plate, pay attention to stretching directly on the Glass or thicker panel.

application width
90mm
Graduation
25 μm
Film thickness Range
450~675 μm
