Overview

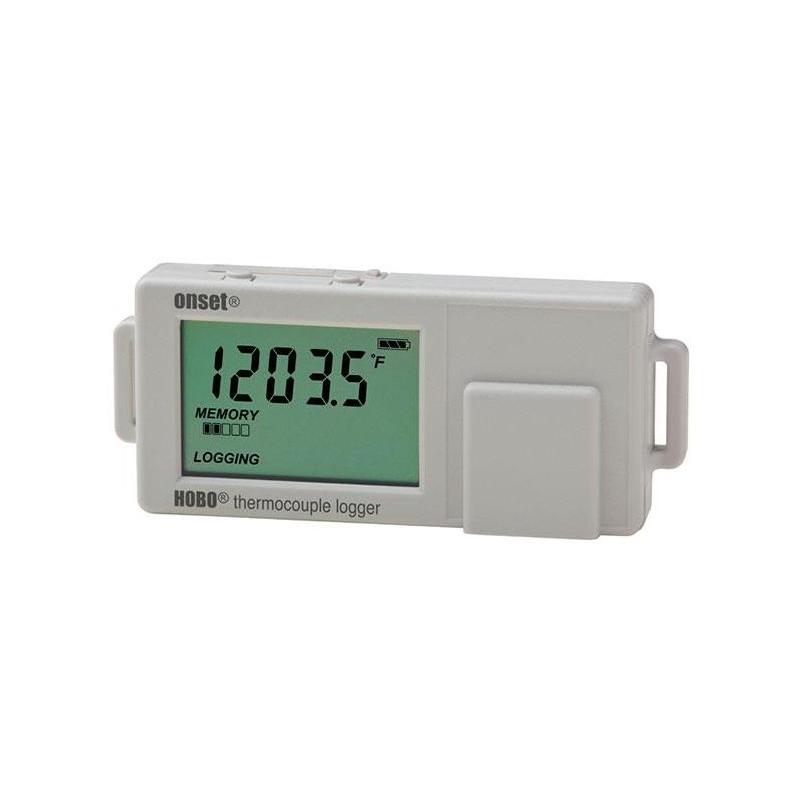

The HOBO UX100-014M is a single channel Thermocouple temperature recorder primarily used to record Ambient Temperature indoors. Compatible with a wide range of Thermocouple Probe types, the recorder is suitable for industrial process monitoring as well as applications such as monitoring concrete maturity, providing a flexible measurement solution.
Features
1. High Accuracy supports J, K, T, E, R, S, B, N type Thermocouple readings.
2. Equipped with an easy-to-view LCD display.
3. Own large-capacity storage.
4. With high and low Alarm threshold setting function.
5. Provide new breaking and statistical recording modes.
6. Use an internal thermistor for cold junction compensation.
Principle
The UX100-014M Thermocouple Temperature Logger is connected to an external Thermocouple Sensor (purchased separately) via its single-channel interface to Measuring temperature. The logger performs signal processing internally and uses a built-in thermistor to perform temperature compensation on the cold junction of the Thermocouple to improve Measurement accuracy. Measurement Data is stored in internal memory and can be downloaded via the USB interface.
Applications
Industrial process monitoring, concrete maturity monitoring
Standards
CE certification
Steps
1. Connect a compatible Thermocouple Sensor to the recorder.
2. Set the recording parameters (such as recording interval, start mode, Alarm threshold, etc.) through the recorder button or supporting software.
3. Start recording (can be set to start immediately, button start, regular start, etc.).
4. The recorder performs data collection and storage according to the settings.
5. Connect to the computer through the USB interface and use the supporting software to download the data.
Notice
• This recorder is designed for use in indoor environments.
• Thermocouple temperature sensors need to be purchased separately.
• Make sure to use a compatible Thermocouple type (J, K, T, E, R, S, B, N).
• There are various ways to start the recorder, please set it correctly according to your needs.
• Pay attention to the selection of Data storage mode (overwrite or stop) to prevent data loss.
• Battery life is about 1 year and needs to be checked or replaced regularly.
• Protection Rating is IP50, please pay attention to dust and avoid direct contact with liquids.
