Overview

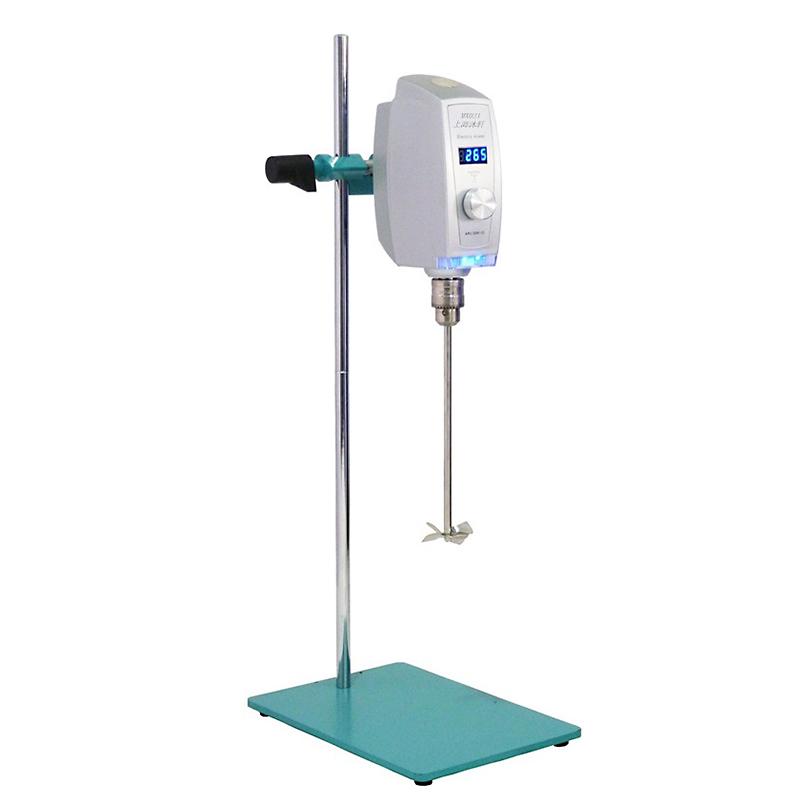

The MUXUAN MJB-A110 laboratory Stirrer is driven by a brushless DC motor, which is suitable for stirring and mixing of low to medium and high viscosity liquids in the laboratory. The machine has a reasonable and compact structure, ultra-low noise and maintenance-free. The stirring Rotation speed is controlled by a microprocessor, which can instantly and effectively compensate for the Rotation speed changes caused by load changes and Power supply voltage fluctuations, and the constant speed is reliable.
Features
1. High-performance motor, lower noise, smoother operation, ensuring the high quality of the whole machine
2. CPU digital display dynamic Rotation speed control, Rotation speed memory timing function, intelligent control of the whole machine
3. Reasonable design of the whole machine, Modular design, simple structure, light operation; replaceable working head form
4. Built-in automatic overload protection device to ensure the safety of long-term high-load continuous operation of the experiment
5. Penetrating stirring chuck to expand the experimental application function of various types of stirringrod
6. Rotation speed of stirring is displayed digitally to ensure intuitive collection of experimental data
7. Stepless stirring speed regulation, to meet the experimental stirring Rotation speed correction at any time
8. Stable Rotation speed, competent for high viscosity medium, Stock mixing, can be equipped with a variety of different specifications of the head
Principle
Rotation speed is controlled by microprocessor, which can compensate for the change of Rotation speed caused by load change and Power supply voltage fluctuation, and realize constant speed and reliable operation.
Applications
Biological, food, coatings, inks, Spinning & weaving aids, cosmetics, lubricants, pesticides
Steps
1. Connect power supply AC220V, 50Hz
2. Select the appropriate Impeller and install it to the chuck
3. Set the required Speed range 50~ 2000rpm
4. Set Timer Range 1~ 6000min
5. Stirrer starts working
6. Rotation speed data monitored via digital display
Notice
• Material viscosity must not exceed 100000 cps (mPas)
• Operating temperature must not exceed 40 ℃
• relative humidity not more than 80%
Processing capacity range is 0.2~ 25L
• Make sure the overload protection function is normal before use
• Regularly check whether the Impeller is firmly fixed
