Overview

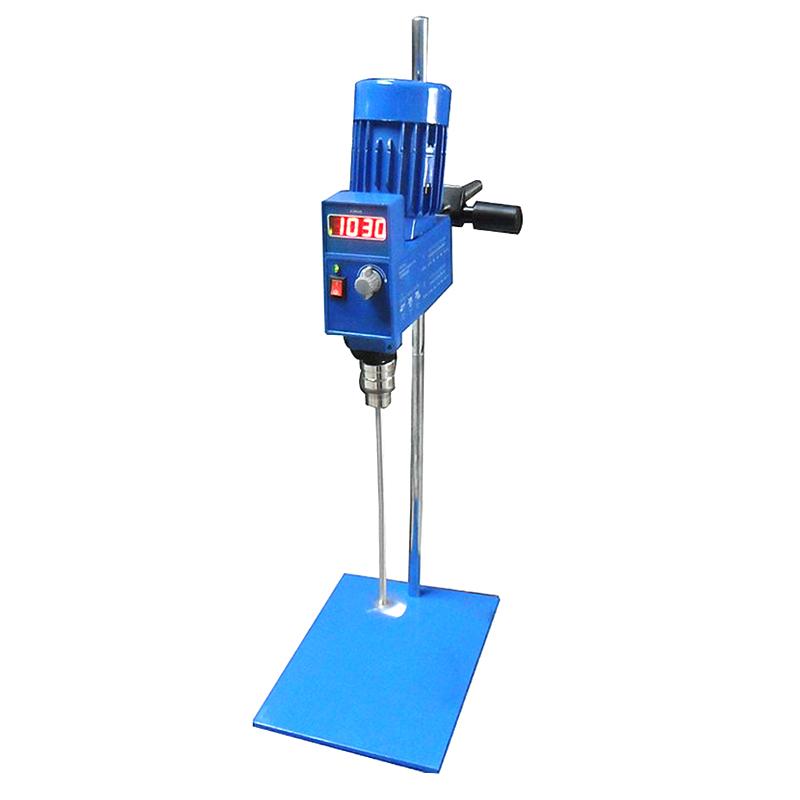

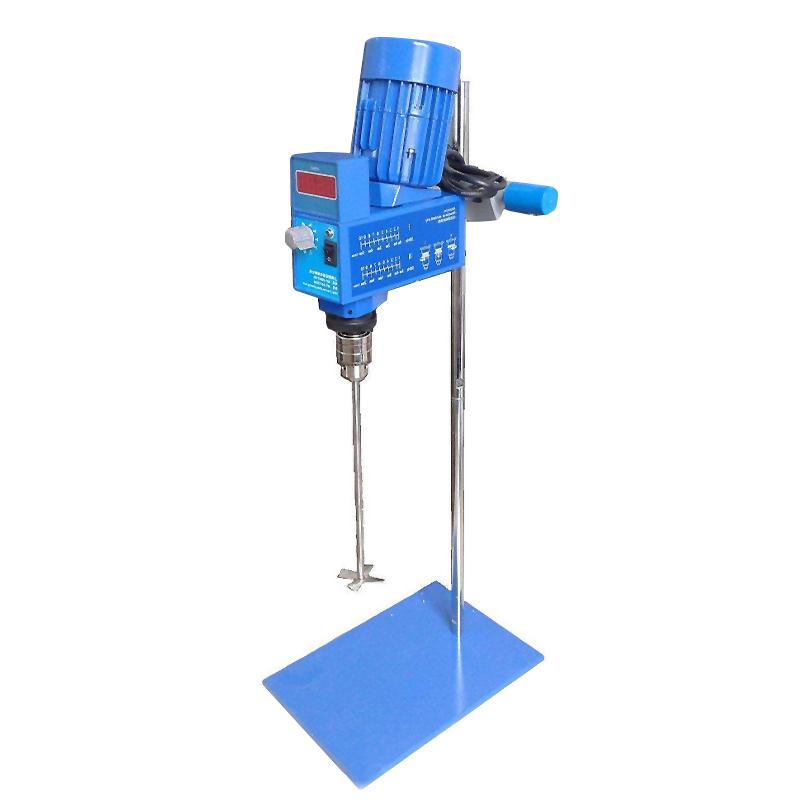

The MUXUAN MJB-B120 Laboratory Stirrer is driven by a compact micro-motor and is suitable for stirring and mixing low to medium and high viscosity liquids in the laboratory. The machine design structure is exquisite, by the drive motor, friction transmission mechanism and speed controller, stirring host using high density die-casting aluminum alloy body, stable running state; Rotation speed and torque at the output end of the basic constant, high and low two gear Rotation speed torque doubled, speed controller using IC speed detection full constant power speed regulation technology, can immediately and effectively compensate for load changes and Power supply voltage fluctuations caused by Rotation speed changes, screen intuitive digitalization Rotation speed stirring, provide guarantee for data collection, with large output power, high torque, easy experiment and other characteristics.
Features
1. High-performance motor, lower noise, smoother operation, ensuring the high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, intelligent control of the whole machine
3. According to the material viscosity, adjust in grades, low grade: 60~ 500 rpm, high grade: 240~ 2000 rpm
Principle
Adopting IC speed detection full constant power speed regulation technology, it can immediately and effectively compensate for the change of Rotation speed caused by load change and Power supply voltage fluctuation.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Steps
1. Choose low grade (60~ 500 rpm) or high grade (240~ 2000 rpm) according to material viscosity
2. Rotation speed set by digital stepless controller
3. Clamp the stirringrod in the range of 0.5~ 10mm
4. Start the equipment for stirring and mixing operation
Notice
• Material viscosity must not exceed 100000 cps
• Processing capacity range is 0.3L-20L (500~ 20000ml)
• Operating temperature must not exceed 40 ℃
• relative humidity must not exceed 90%
• Power supply voltage is AC220V, 50Hz
• Stirringrod clamping range is 0.5~ 10mm
• The penetration range of stirringrod is 0.5~ 8mm
