Overview

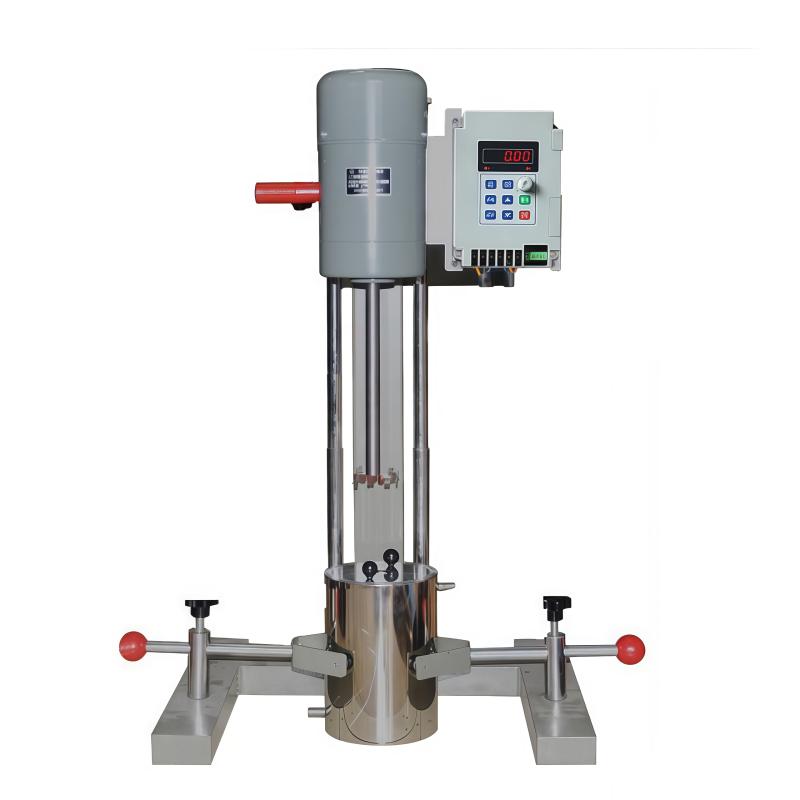

XD-F550 experimental stirring sand grinding Disperser adopts brushless DC variable frequency motor as the driving motor, which has the advantages of small size, large starting torque, high operating efficiency, low energy consumption, low noise, no commutation spark interference, no carbon brush mechanical abrasion, Stability, etc. It effectively improves the working safety environment of laboratory testers and is an upgraded product more suitable for laboratory use.
Features
1. Brushless DC variable frequency motor is the driving motor, with the advantages of small size, large starting torque, high operating efficiency, low energy consumption, low noise, no commutation spark interference, brushless mechanical abrasion, and stable speed regulation.
2. One machine is multi-purpose, which can realize dispersion, grinding, stirring and mixing.
3. Simple operation, easy disassembly of the working head; equipped with dispersion disc and sand disc.
4. Closed work, reducing volatilization and splash pollution for easy cleaning.
5. Modular design, unique internal quality.
6. CPU frequency conversion digital display Dynamic Rotation speed control, the whole machine intelligent control.
Principle
The equipment is driven by brushless DC variable frequency motor, and realizes intelligent control through CPU variable frequency digital display dynamic Rotation speed Control system, supports various functions such as dispersion, grinding, stirring, mixing, etc. The working head can be disassembled and equipped with dispersion disc and sand grinding disc.
Applications
Dispersion and mixing of materials for biological, food, paint, inks, Adhesive, dyestuff, pesticide and other industries
Steps
1. Choose the appropriate configuration according to the material Processing capacity (0.2-5 L).
2. Install the work head such as dispersion disc or sand disc.
3. Adjust the working head position by manual lifting.
4. Set the speed range 0-8000rpm for dispersion, grinding, stirring or mixing operations.
5. After the operation is completed, remove the working head for cleaning.
Notice
• Material viscosity should be controlled within the range of ≤ 25,000 cps.
Processing capacity should be maintained between 0.2-5 L.
• Make sure the working head is firmly installed before use.
• Pay attention to the sealing work during operation to reduce volatilization and splash.
• Regularly clean and maintain equipment to maintain performance.
