Overview

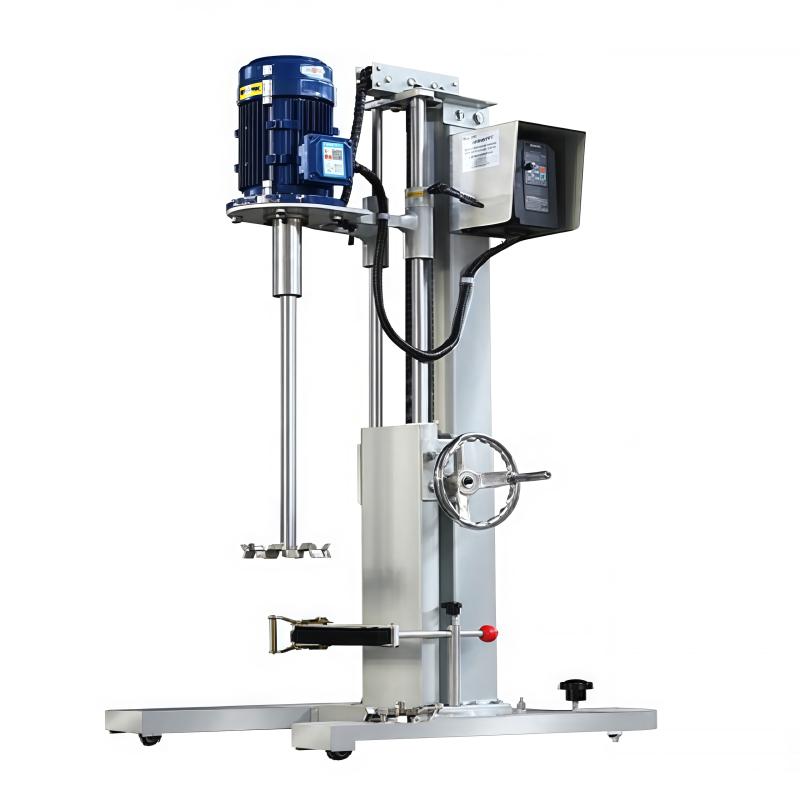

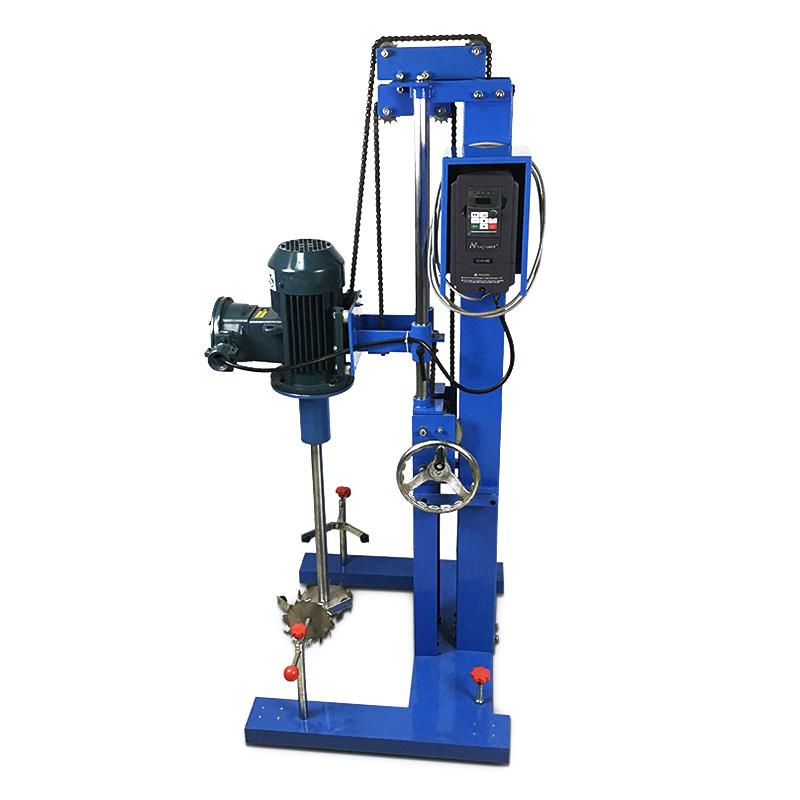

MUXUAN MXF-A1.5 Small Batch Mixing Disperser is a new type of product designed according to the actual needs of production. It is mainly used for the pre-production experiments of paints, coatings, pigments, plastics, food and other liquid Stocks. It provides correct data for large-scale production and can also be used for small batch production. Processing capacity is 10-70L.
Features

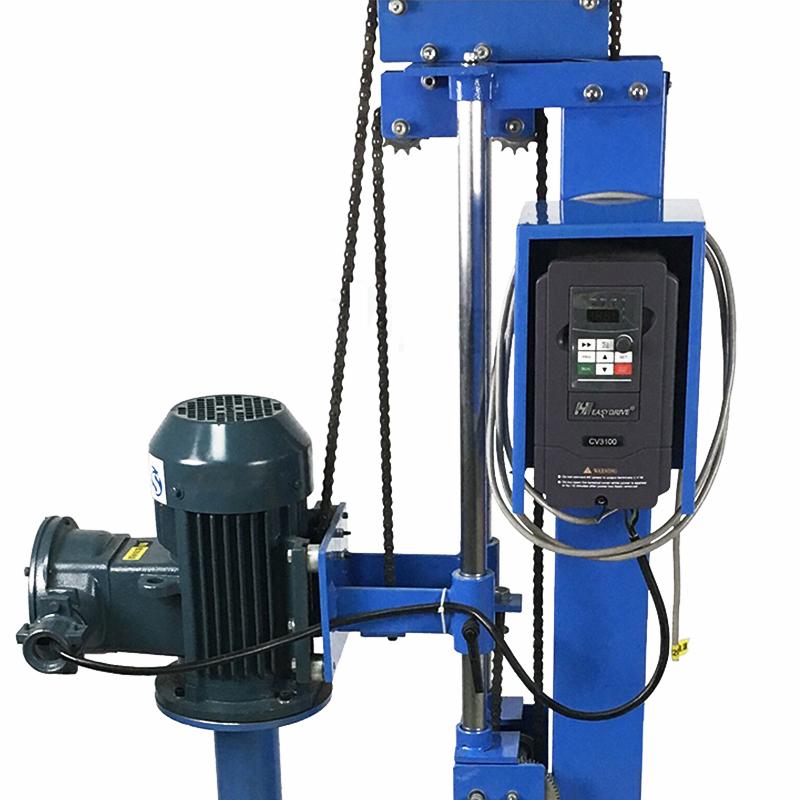

1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. The hand lift is light and convenient, with a low failure rate, and the bottom of the frame is equipped with casters for easy movement
4. Mixing methods are paddle type, tooth plate type, blade type, can choose different mixing forms according to process needs, simple and convenient replacement
5. Explosion-proof design of the whole machine
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape, and generates a strong shear impact and friction between the particles to achieve the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Standards
explosion-proof standard
Steps
1. Choose the appropriate mixing form according to the material characteristics
2. Rotation speed to desired range (0-1500rpm)

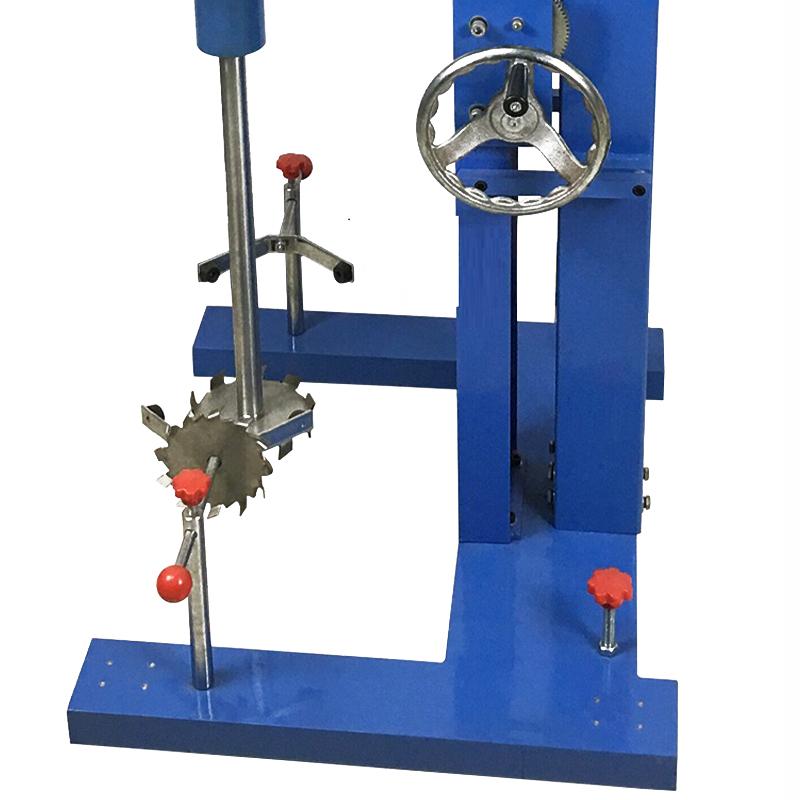

3. Adjust the position of the dispersion disc by hand lifting
4. Start the device for decentralized mixing operation
5. Turn off the device after completing the operation
Notice
• Material viscosity should be ≤ 50000 cps
• Processing capacity range of 10-70L
• The maximum size of the container that can be placed is 400mm in diameter and 560mm in height.
• Make sure the power supply is 220V/380V before use
• Regularly check the operating status of the equipment
