Overview

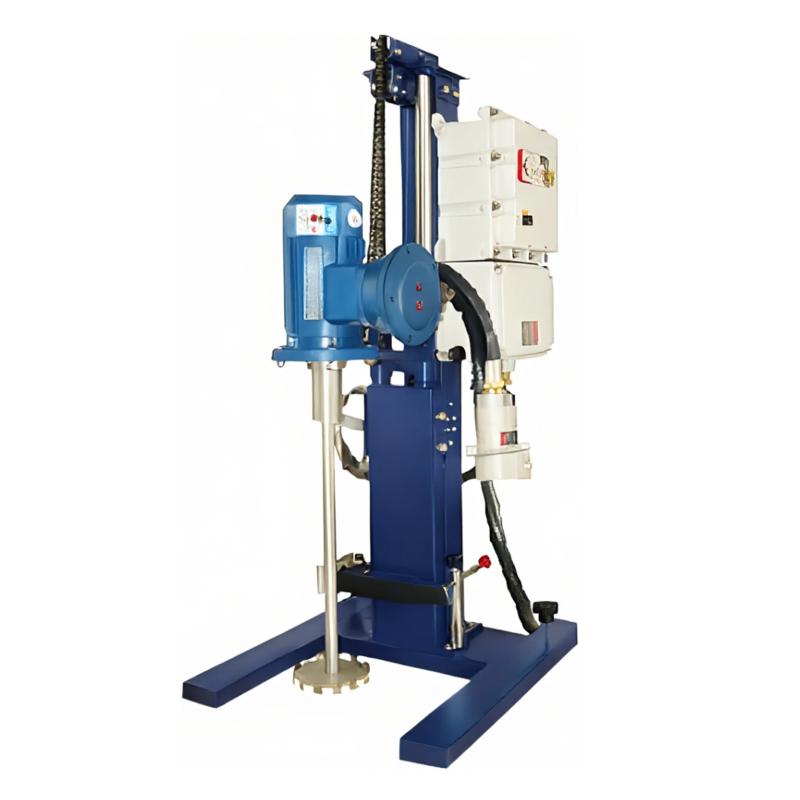

MUXUAN MXF-A1.5Q Small Batch Mixing Disperser is a new type of product designed according to actual production needs. It is mainly used for the pre-production experiments of liquid Stocks such as paints, coatings, pigments, plastics, and food. It can provide correct data for large-scale production and can also be used for small batch production. The product Processing capacity is 10-100L, and the explosion-proof type can be customized according to the material characteristics.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. The hand lift is light and convenient, with a low failure rate, and the bottom of the frame is equipped with casters for easy movement
4. Mixing methods are paddle type, tooth plate type, blade type, can choose different mixing forms according to process needs, simple and convenient replacement
5. Fully explosion-proof design to ensure safe use
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape. Strong shear impact and friction are generated between the particles, achieving the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Dispersion and mixing of materials for biological, food, paint, inks, Adhesive, dyestuff, pesticide and other industries
Standards
Full explosion-proof standard
Steps
1. Move the device to the working location
2. Select the appropriate mixing form according to the process needs and install it
3. Rotation speed and timing parameters required
4. Start the device for decentralized mixing operation
5. Turn off the power of the device after the operation is completed
Notice
• Material viscosity should not exceed 50000 cps
• Processing capacity range of 10-100L
• The maximum size of the container that can be placed is 450mm in diameter and 650mm in height.
• When using, make sure that the equipment is placed on a stable working surface
• Check whether the connection of each part is firm before operation
• Regularly check the operating status of the equipment to ensure safe use
