Overview

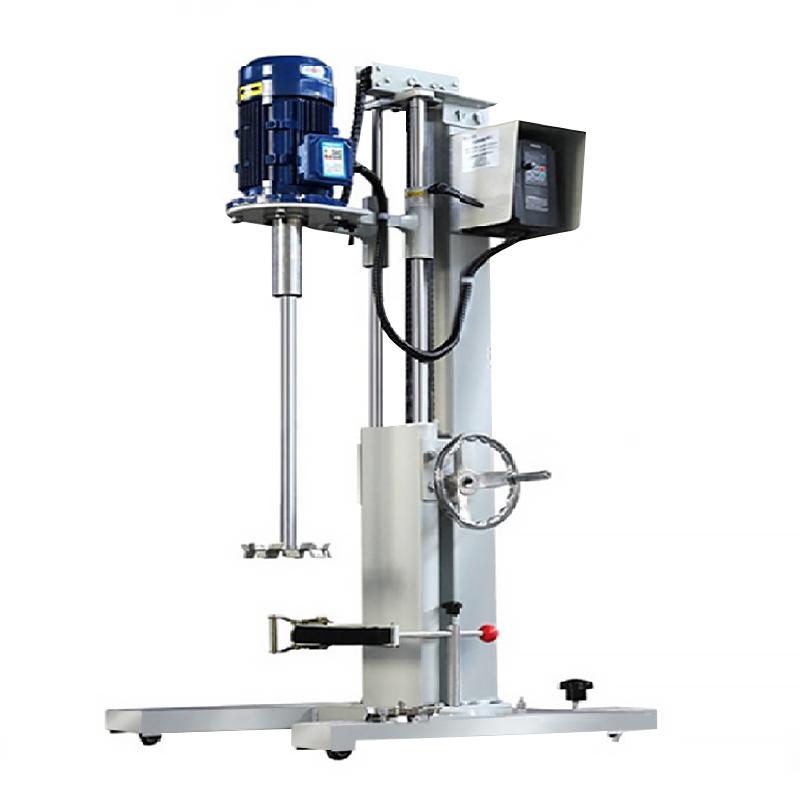

MUXUAN MXF-A2.2 Small Batch Mixing Disperser is a new type of product designed according to actual production needs. It is mainly used for the pre-production experiments of liquid Stocks such as paints, coatings, pigments, plastics, and food. It provides correct data for large-scale production and can also be used for small batch production. The product Processing capacity is 10-70L, and the explosion-proof type can be customized according to the material characteristics.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, the whole machine intelligent control
3. The hand lift is light and convenient, with a low failure rate, and the bottom of the frame is equipped with casters for easy movement
4. Mixing methods are paddle type, tooth plate type, blade type, can choose different mixing forms according to process needs, simple and convenient replacement
5. Explosion-proof design of the whole machine
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape. Strong shear impact and friction are generated between the particles, achieving the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Biological, Food, Coatings, inks, Adhesives, dyestuffs, pesticides
Standards
Material viscosity ≤ 50000 cps, Processing capacity 10-70L
Steps
1. Choose the appropriate mixing form according to the process needs
2. Put the material into the container to ensure that the size of the container does not exceed 400mm in diameter and 560mm in height.
3. Adjust the position of the stirring head by hand lifting
4. Rotation speed and timing parameters
5. Start the device for decentralized mixing operation
6. Turn off the equipment after completion, clean and maintain it
Notice
• Material viscosity must not exceed 50000 cps
• Processing capacity range of 10-70L
• The maximum size of the container that can be placed is 400mm in diameter and 560mm in height.
• Select the appropriate explosion-proof model according to the material characteristics
• Regularly check the operating status of the equipment
• Pay attention to safety protection during operation
