Overview

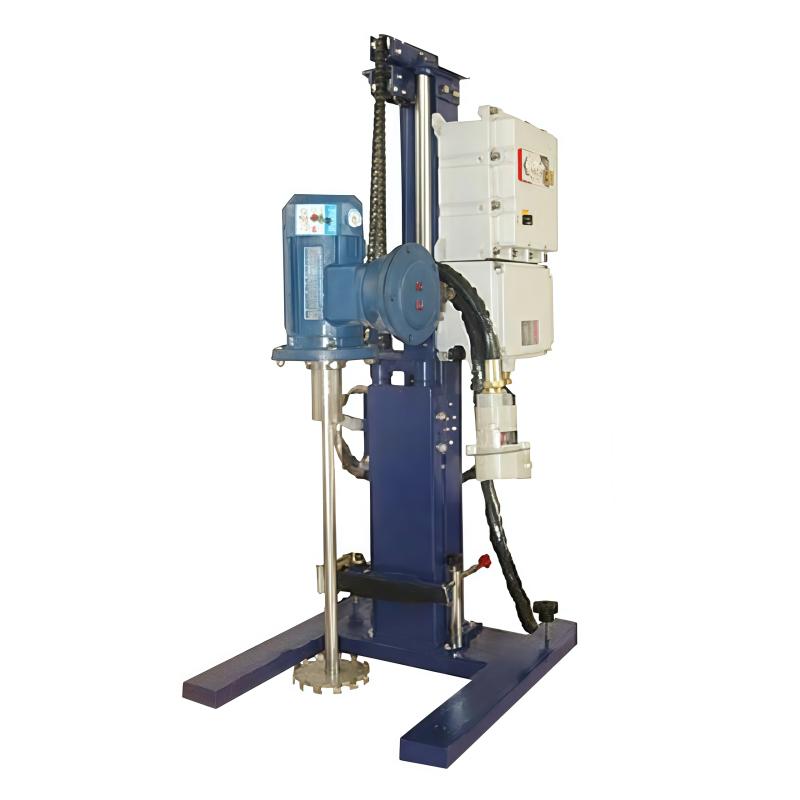

MUXUAN MXF-A3Q Small Batch Stirring Disperser is a MXF-A series pilot small batch frequency conversion Disperser, designed according to actual production needs, mainly used for paints, coatings, pigments, plastics, food and other liquid Stock production pre-test, provide correct data for large-scale production, can also be used for small batch production. The product can disperse 10-200L of material, and can be customized explosion-proof type according to material characteristics.
Features
1. High-performance motor, lower noise, smoother operation, ensuring high quality of the whole machine.
2. CPU digital display Dynamic Rotation speed control, can realize timing fixed speed operation, intelligent control of the whole machine, explosion-proof machine.
3. The lifting method is hand-cranked lifting, which is light and convenient, with a low failure rate. The bottom of the frame is equipped with casters for easy movement.
4. Mixing methods include paddle type, toothed disc type, and blade type. Different mixing forms can be selected according to the needs of process production, and the replacement is simple and convenient.
Principle
The high-speed operation of the dispersion disc causes the material to form an annular flow, generating a strong vortex, which drops to the bottom of the eddy current in a spiral shape. Strong shear impact and friction are generated between the particles, achieving the functions of rapid dispersion, dissolving, uniform mixing and stirring.
Applications
Dispersion and mixing of materials for biological, food, paint, inks, Adhesive, dyestuff, pesticide and other industries
Steps
1. Choose the appropriate mixing form (paddle type, tooth plate type or blade type) according to the material characteristics.
2. Put the material into the container, ensuring that the diameter of the container does not exceed 450mm and the height does not exceed 650mm.
3. Use a hand lift to adjust the position of the dispersion disc to the appropriate height.
4. Rotation speed (0-3000rpm) and timing parameters are set through the CPU digital display control panel.
5. Start the device for decentralized and mixed operations.
6. After the operation is completed, turn off the equipment and clean the mixing head.
Notice
The viscosity of the material should not exceed 50,000 cps to ensure the normal operation of the equipment.
Processing capacity range is 10-100L, with water as the standard, actual Processing capacity may vary depending on material characteristics.
• The lifting method is manual lifting, and it needs to be shaken lightly during operation to avoid excessive force.
• The equipment is fully explosion-proof, suitable for flammable and explosive environments, but it is necessary to ensure that the power supply meets the requirements of 220V/380V.
• Regularly check the stirring head and motor to ensure that there are no abrasions or failures to maintain high-performance operation.
